| Model |

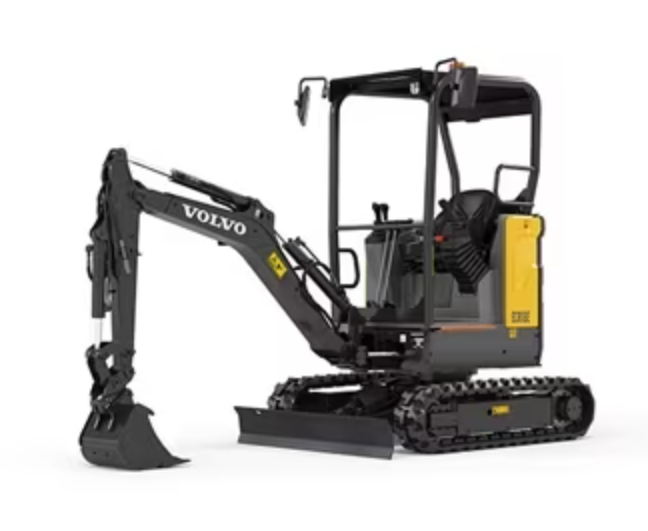

ECR18E |
| Engine |
Volvo D0.9A |
| Gross power |
16.1 hp |
| Net power |
15.8 hp |
| ...at engine speed |
2,300 rpm |
| Operating weight |
3,748 lbs |
| Operating weight, canopy version |
3,748 lbs |
| Bucket capacity |
0.02 - 0.07 yd³ |
| Travel speed, low / high |
1.12 / 2.17 mph |
| Slewing speed |
9.5 rpm |
| Breakout force |
2,900 lbf |
| Tear out force (arm breakout force) |
1,787.2 lbf |
| Overall width |
3′ 3.2″ ft in |
| Overall length |
11′ 3.1″ ft in |
| Main hydraulic pump max. flow |
9 gal/min |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
