| Model |

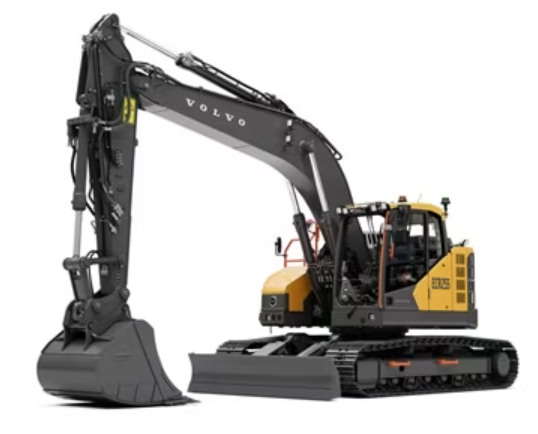

ECR255 |
| Operating weight |
51,588.16 - 64,000.19 lbs |
| Gross power |
253.45 hp |
| ...at engine speed |
1,800 rpm |
| Bucket capacity |
0.47 - 1.88 yd³ |
| Lifting capacity, along undercarriage |
16,622.85 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
31' 2" ft in |
| Max. digging depth |
20' 10" ft in |
| Breakout force, SAE J1179 (Normal) |
28,101.1 lbf |
| Breakout force, SAE J1179 (Boost) |
29,674.8 lbf |
| Tear out force, SAE J1179 (Normal) |
26,302.6 lbf |
| Tear out force, SAE J1179 (Boost) |
27,876.3 lbf |
| Overall width |
9'10" ft in |
| Tail swing radius |
7'7" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
