| Model |

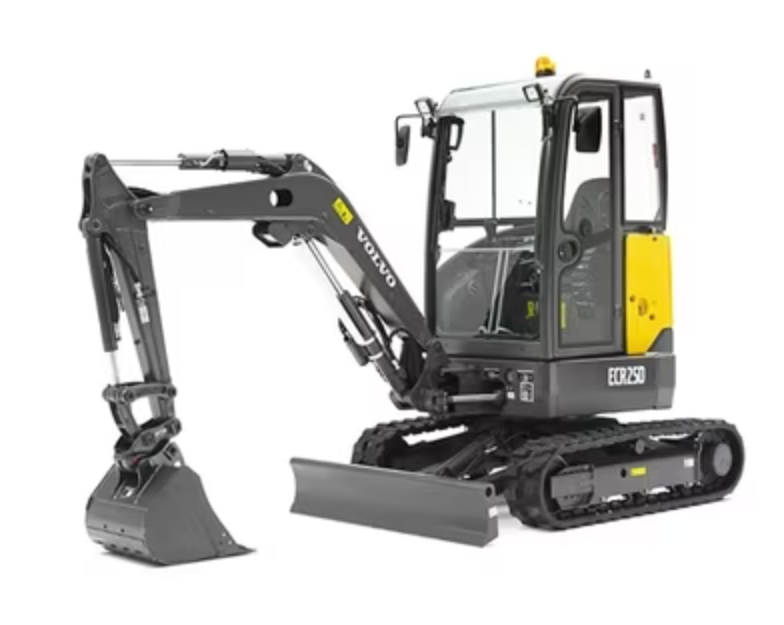

ECR25D |
| Engine |
Volvo D1.1A |
| Gross power |
20.9 hp |
| ...at engine speed |
2,400 rpm |
| Operating weight |
5,490 - 5,737 lbs |
| Operating weight, canopy version |
5,291 - 5,538 lbs |
| Bucket capacity |
0.04 - 0.16 yd³ |
| Travel speed, low / high |
1.55 / 2.8 mph |
| Slewing speed |
9.4 rpm |
| Breakout force |
4,554 lbf |
| Tear out force (arm breakout force) |
3,885 lbf |
| Overall width |
5′ 1″ ft in |
| Overall length |
12′ 10″ ft in |
| Main hydraulic pump max. flow |
17.7 gal/min |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
