| Model |

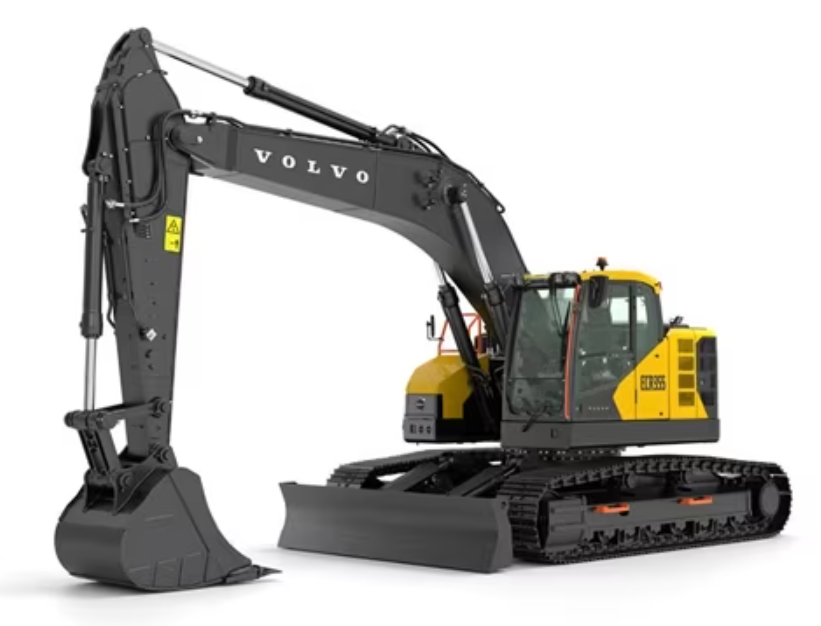

ECR355 |
| Operating weight |
78,312.6 - 81,870.86 lbs |
| Gross power |
253.45 hp |
| ...at engine speed |
1,600 rpm |
| Bucket capacity |
0.784 - 3.26 yd³ |
| Lifting capacity, along undercarriage |
26,631.84 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
34' 10" ft in |
| Max. digging depth |
22' 9" ft in |
| Breakout force, SAE J1179 (Normal) |
37,093.5 lbf |
| Breakout force, SAE J1179 (Boost) |
40,240.8 lbf |
| Tear out force, SAE J1179 (Normal) |
29,899.6 lbf |
| Tear out force, SAE J1179 (Boost) |
32,372.5 lbf |
| Overall width |
10'11" ft in |
| Tail swing radius |
6'8" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
