| Model |

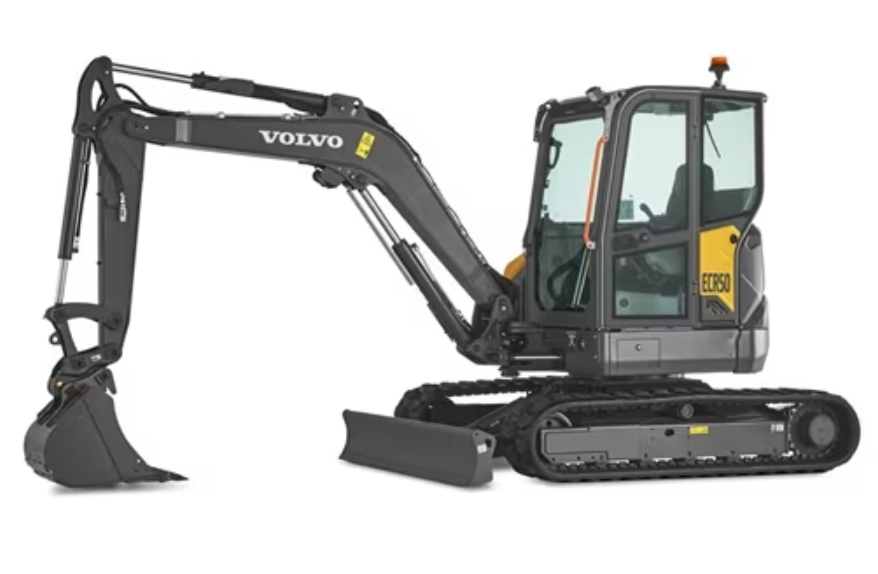

ECR50 |
| Engine |
Volvo D2.4H |
| Gross power |
41.8 hp |
| Net power |
41.2 hp |
| ...at engine speed |
2,200 rpm |
| Operating weight |
11,133 lbs |
| Bucket capacity |
0.15 yd³ |
| Travel speed, low / high |
1.68 / 2.73 mph |
| Slewing speed |
8.5 rpm |
| Breakout force |
8,134 lbf |
| Tear out force (arm breakout force) |
5,834 lbf |
| Overall width |
6′ 7″ ft in |
| Overall length |
17′ 1″ ft in |
| Main hydraulic pump max. flow |
31.7 gal/min |
| Boom swing angle, left / right |
75 / 55° |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
