| Model |

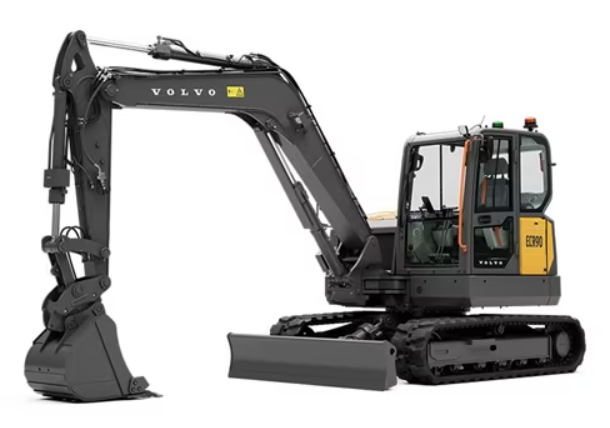

ECR90 |
| Engine |
D3.3H |
| Gross power |
73 hp |
| Net power |
72 hp |
| ...at engine speed |
1,400 rpm |
| Operating weight |
19,340 - 23,170 lbs |
| Bucket capacity |
0.1 - 0.4 yd³ |
| Travel speed, low / high |
3.1 mph |
| Slewing speed |
9 rpm |
| Breakout force |
5,824 lbf |
| Tear out force (arm breakout force) |
4,415 lbf |
| Overall width |
7' 7" ft in |
| Overall length |
21'7" ft in |
| Main hydraulic pump max. flow |
50 gal/min |
| Boom swing angle, left / right |
70 / 60° |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
