| Model |

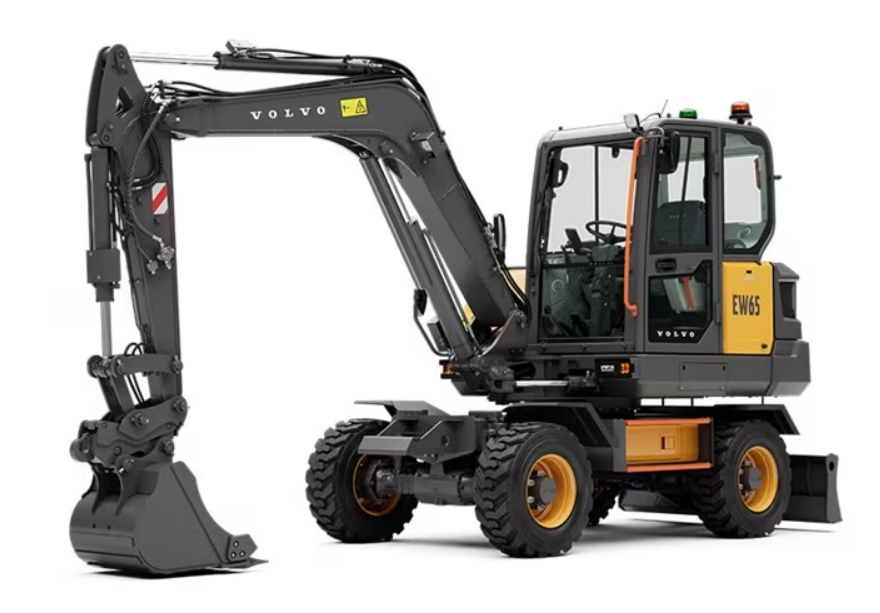

EW65 |
| Engine |
Volvo D2.6H |
| Gross power |
67 hp |
| Net power |
65 hp |
| ...at engine speed |
1,500 rpm |
| Operating weight |
13,490 - 16,320 lbs |
| Bucket capacity |
0.09 - 0.35 yd³ |
| Travel speed, low / high |
18.64 mph |
| Slewing speed |
9.1 rpm |
| Breakout force |
8,470 lbf |
| Tear out force (arm breakout force) |
6,340 lbf |
| Overall width |
6' 4" ft in |
| Overall length |
19'3" ft in |
| Main hydraulic pump max. flow |
32 gal/min |
| Max speed |
18.6 mph |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
