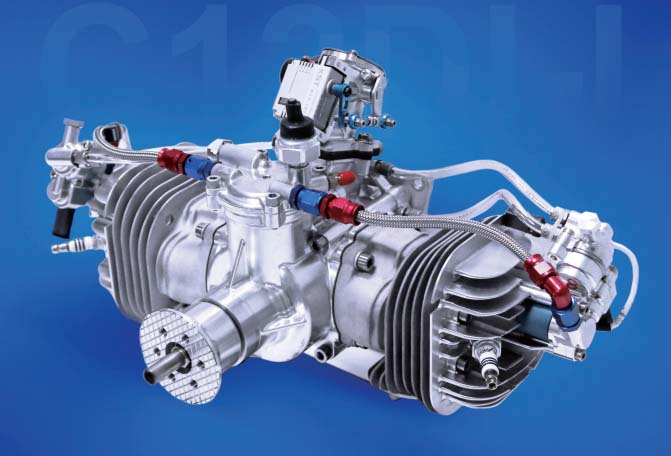

Zonsen C12DI-I

C12DI-I - Zonsen C12DI-I - China Zonsen engine

Model	C12DI-I
Displacement(mL)	170
Dimension(mm)	230×420×245
Dry weight(kg)	6.7
Maximum power(kW/(r/min))	10.2/7200
Power weight ratio(kW/kg)	1.52
Minimum fuel consumption(g/kW·h)	330
Start mode	External electric starter/Integrated starter generator/Manual starter
Ignition	Digital dual ignition
Fuel supply mode	AADI in cylinder direct injection low pressure air assisted atomization
Fuel type	RP-3 aviation kerosene, 95 gasoline
Cooling mode	Air cooling
TBO(h)	150
