| Model |

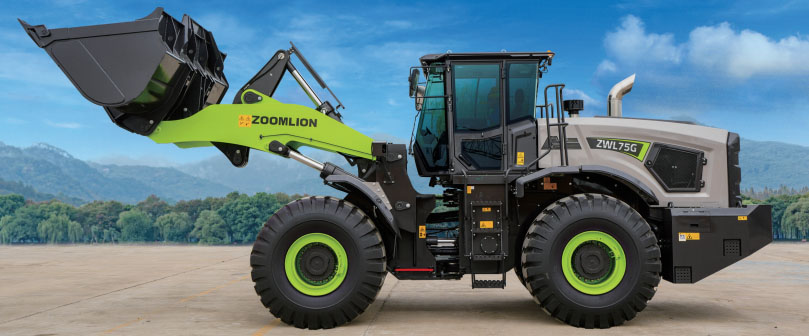

ZWL75G |
| Operating weight |
25000kg |
| Rated load |
7500kg |
| Rated bucket capacity |
5m3 |
| Optional bucket capacity |
3.5-7m3 |
| Max. breakout force |
210kN |
| Max. rimpull depth |
220kN |
| Lift-dump-descend time |
10.2s |
| Max. travel speed |
6.75/12.5/25.4/39km/h |
| Max. gradeability |
27° |
| L Overall length |
9543mm |
| W Bucket width |
3430mm |
| H Overall height |
3660mm |
| A Boom hinge point height |
4840mm |
| B Dump height (45° dump angle) |
3540mm |
| C Dump reach (45° dump angle) |
1265mm |
| G Wheelbase |
3550mm |
| J Tread |
2380mm |
| M Steering angle |
40° |
| R2 Min. turning radius (outside of rear wheels) |
6430mm |
| R1 Min. turning radius (outside of buckets) |
7511mm |
| E Min. ground clearance |
480mm |
| Tipping load, straight |
180kN |
| Tipping load, full turn |
160kN |
| Engine model |
WP10G270E341 |
| Power |
199/2200 kW/rpm |
| Displacemen |
9.726L |
| Transmission |
Automatic power shift |
| Drive axle |
Dry |
| Tire |
26.5-25-32PR |
| System type |
Fixed-variable hydraulics |
| Steering pump type |
Swash plate variable piston pump |
| Service pump type |
Gear pump |
| Steering system pressure |
21Mpa |
| Working system pressure |
25Mpa |
| System type |
Full-hydraulic braking system |
| Brake system pressure |
13Mpa |
| Fuel tank volume |
380L |
| Transmission oil capacity |
50L |
| Hydraulic tank |
185L |
| Engine oil |
20L |
| Front and rear axles |
43L |
