| model |

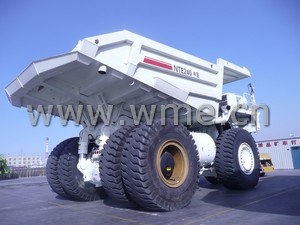

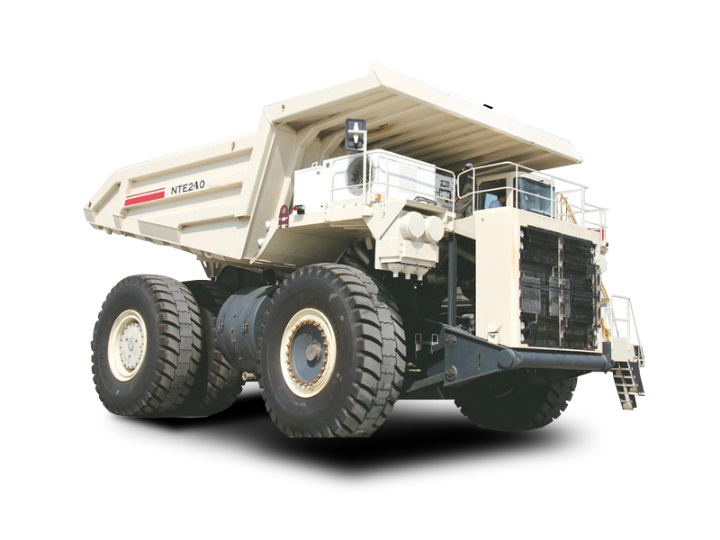

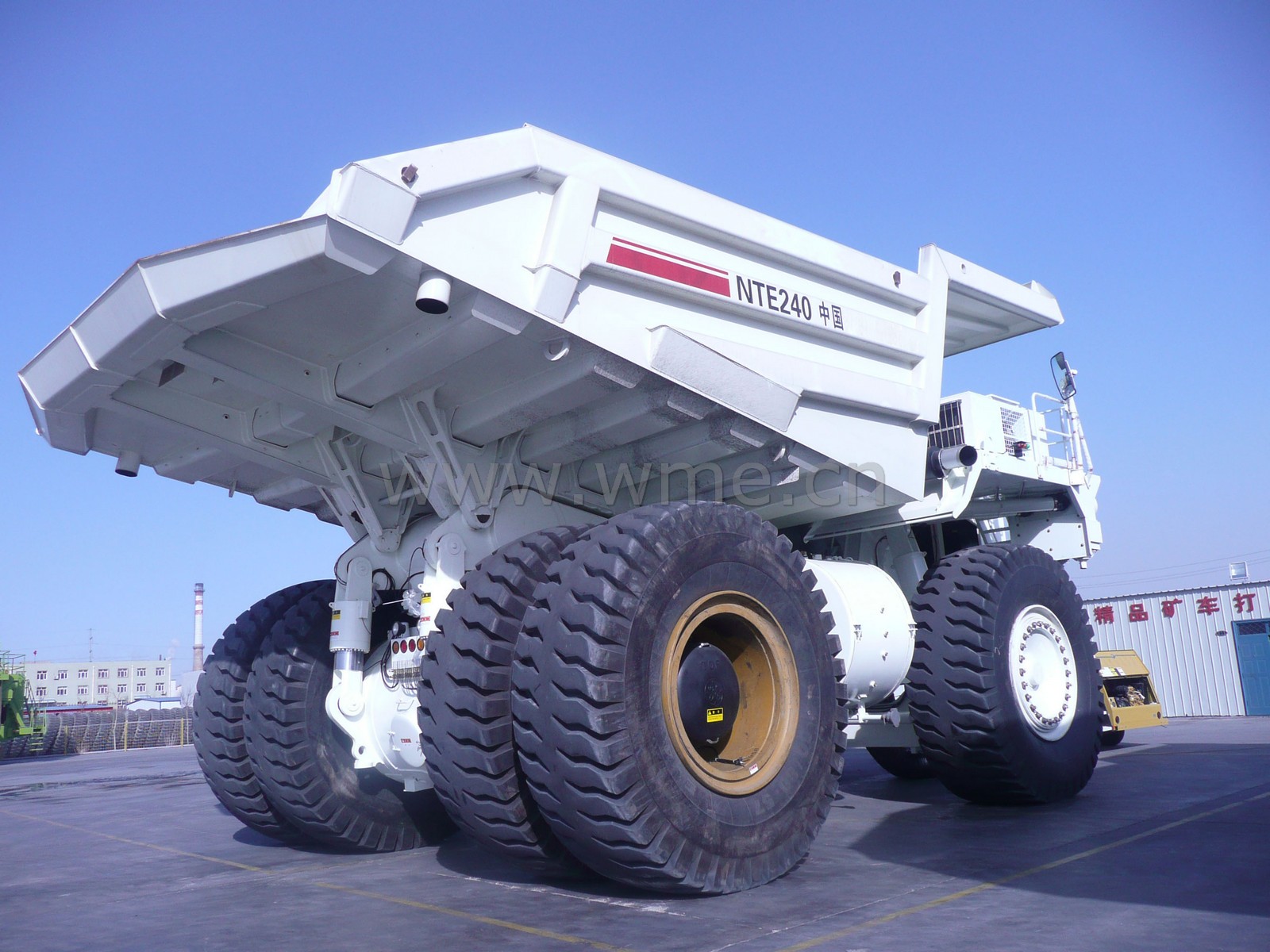

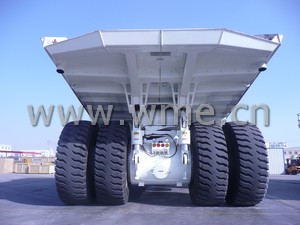

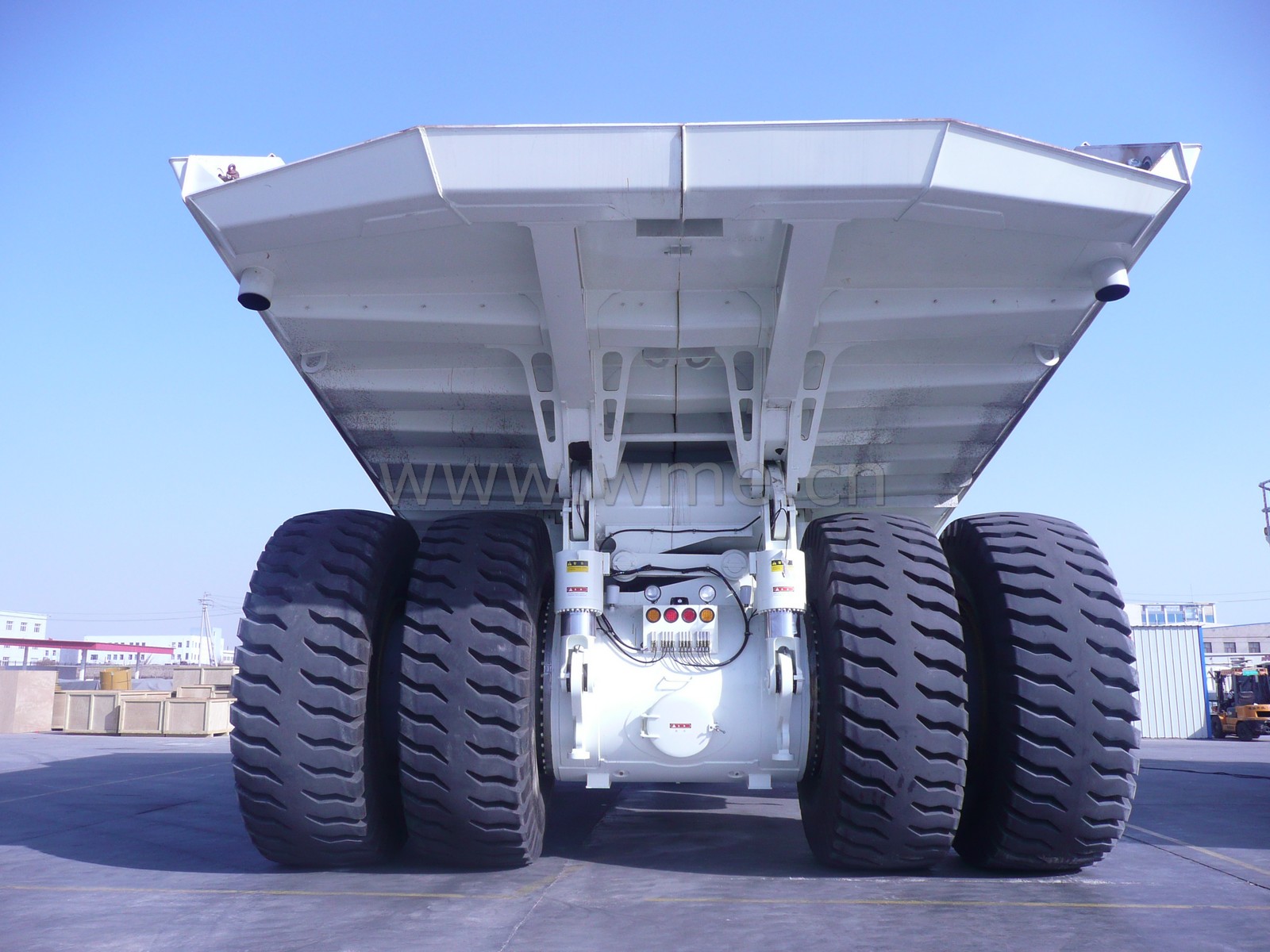

NTE240 |
| items |
parameters |
| weight |
rated payload |
220~236t |
| net weight |
177t |
| dimension |
length |
14800mm |
| width |
7640mm |
| height |
7300mm |
| loading height |
6600mm |
| max speed |
64km/h |
| min turning radius |
15.2m |
| engine |
model |
Cummins QSK60 |
| power |
2500hp/1864kw |
| drive axle |
form |
AC drive system, main generator GE 5GTA41B, control system GE 240AC ™ |
| total reduction ratio |
31.875：1 |
| tire |
model |
standard 50/80R57, rim model 32.00 x 57
option： 46/90R57, rim model 29.00 (32.00) x 57
option： 40.00R57, rim model 29.00 (32.00) x 57 |
| Suspension |
form |
Oil nitrogen mixed oil pneumatic suspension |
| generator |
24V 260A |
| volume |
Struck (SAE) |
100m³ |
| Heaped 2:1 (SAE) |
144m³ |
|
|
