| model |

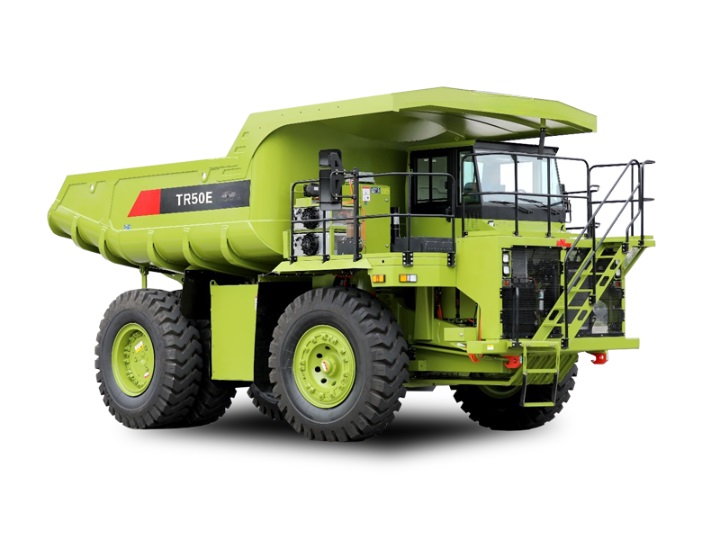

TR50E |
| items |
parameters |
| weight |
rated payload |
45t |
| net weight |
36t |
| dimension |
length |
8875mm |
| width |
4270mm |
| height |
4345mm |
| Axle load distribution in empty load |
front 48% / back 52% |
| Axle load distribution in full load |
front 34% / back 66% |
| max speed |
forward 50km/h; reverse 7km/h |
| steering radius |
8700mm |
| gradeability in heavy load |
24% |
| gradeability in full load |
17% |
| continuous gradeability in slope 8% |
>15km/h in full load
>32km/h in empty load |
| adapt to working temperature |
-40~55C° |
| Suspension |
Front and rear hydropneumatic suspension |
| drive motor |
rated / max power |
320kw / 450kw |
| rated / max torque
|
1605kN / 2300kN |
| rated working voltage |
618V |
| weight |
335kg |
| Cooling method |
water-cooled |
| transmission |
form |
4 shift AMT |
| ratio |
5.53/3.05/1.66/1 |
| max torque/speed |
2400N.m@3000rpm |
| upper motor |
rated / max power |
60kw / 100kw |
| rated / max torque |
320kN / 750kN |
| rated working voltage |
540V |
| weight |
160kg |
| Cooling method |
water-cooled |
| battery |
model |
228Ah |
| voltage |
618V |
| capacity |
423kwh |
| Cooling method |
water-cooled |
| Heating method |
membrane heating + water heating |
| charging |
mode |
double gun DC |
| Charging current |
500A |
| Charging power |
360kw |
| Charging time |
53min |
| volume |
Struck (SAE) |
26m³ |
| Heaped 2:1 (SAE) |
32m³ |
