Oxygen CylinderH.S.7311 0090
|

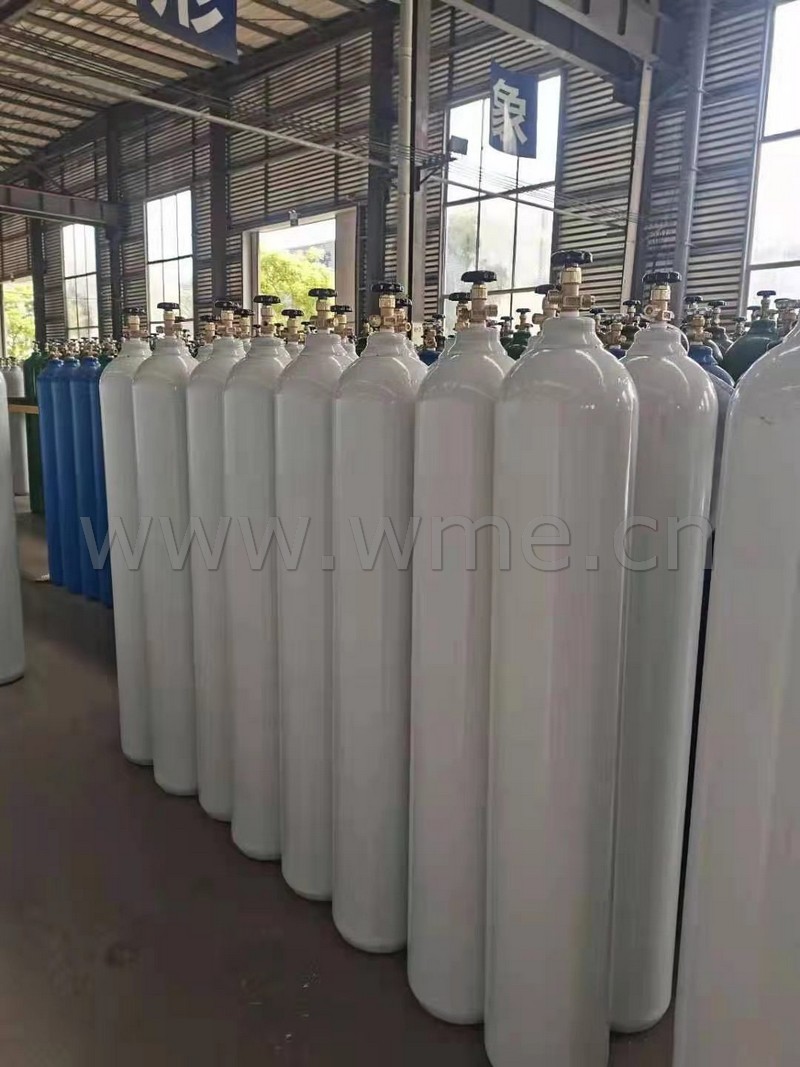

Medical Oxygen Cylinder
|
| Type | Outside Diameter | Water capacity | Height (without valve) |
Weight (without valve and cap) |
working pressure | wall thickness | material |
| ISO140-5-210 | 140mm | 5L | 445mm | 7kg | 210bar | 3.3mm | 34CrMo4 |
| ISO140-6-210 | 6L | 518mm | 8kg | ||||
| ISO140-6.67-210 | 6.67L | 566mm | 8.6kg | ||||
| ISO140-7-210 | 7L | 590mm | 9kg | ||||
| ISO140-7.5-210 | 7.5L | 627mm | 9.5kg | ||||
| ISO140-8-210 | 8L | 664mm | 10kg | ||||
| ISO140-9-210 | 9L | 737mm | 10.9kg | ||||
| ISO140-10-210 | 10L | 810mm | 11.9kg | ||||
| ISO140-11-210 | 11L | 883mm | 12.9kg | ||||
| ISO140-13.4-210 | 13.4L | 1058mm | 15.2kg | ||||
| ISO140-14-210 | 14L | 1102mm | 15.8kg | ||||
| ISO232-25-150 | 232mm | 25L | 772mm | 30kg | 150bar | 5.3mm | 37Mn |
| ISO232-30-150 | 30L | 904mm | 34.3kg | ||||
| ISO232-35-150 | 35L | 1035mm | 38.6kg | ||||
| ISO232-40-150 | 40L | 1167mm | 43kg | ||||
| ISO232-47-150 | 47L | 1351mm | 49kg |

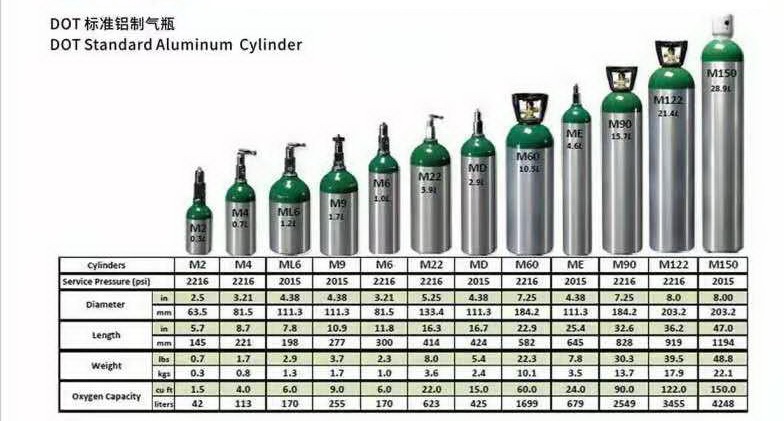

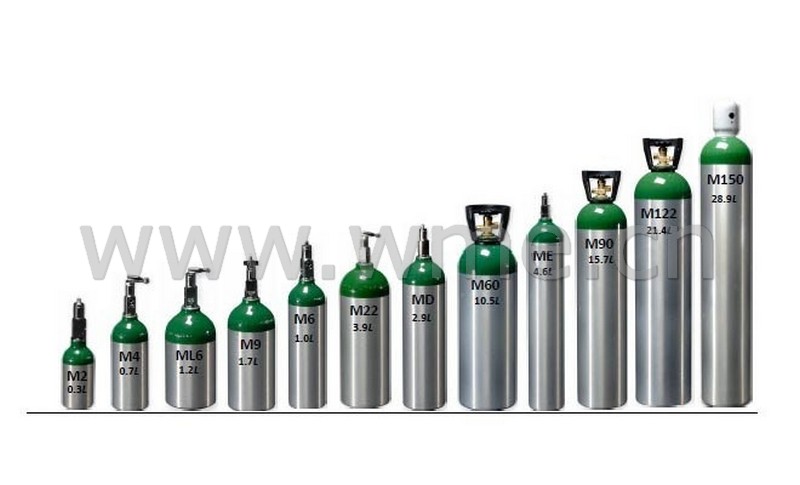

Aluminium Medical Oxygen Cylinder
|
|
|
|
|
