CUMMINS engine

made in

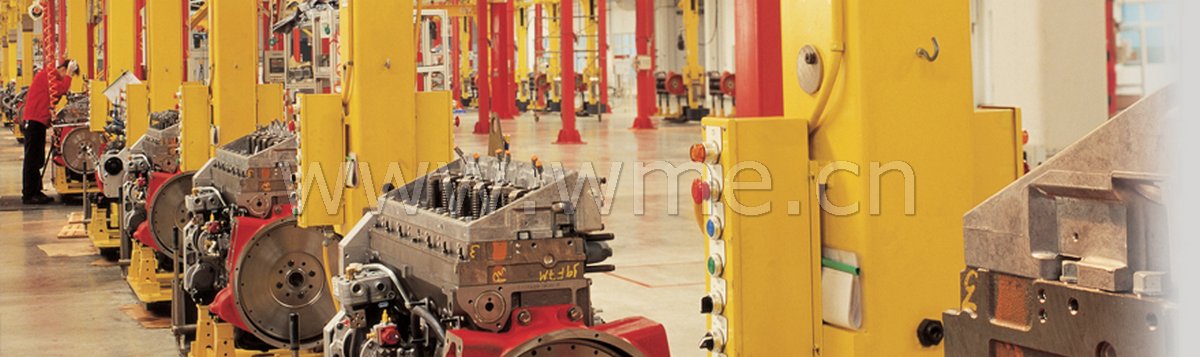

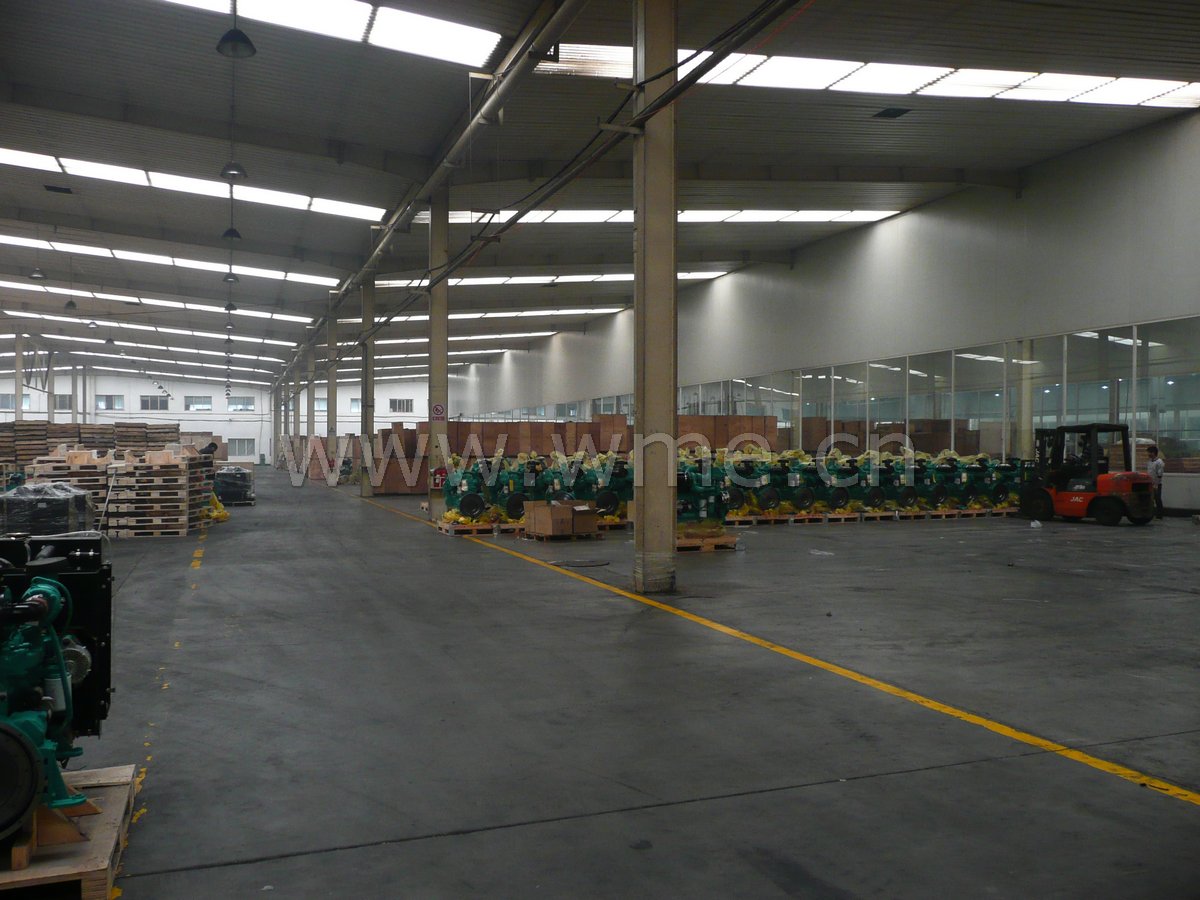

CUMMINS China factory



CUMMINS China factory





Stronger power, lower fuel consumption!









We can supply the generator set, water pump set, wind turbine set, and construction equipment with CUMMINS engine from our original CUMMINS China factory.





CUMMINS for construction equipment

B series | C series | L series | QSB | QSL | QSZ

QSB3.9 series | QSB4.5 series | QSB5.9 series | QSB6.7 series | QSB7

QSC8.3 series | QSL8.9 series | QSL9.3 series



CUMMINS for marine engine

B series | C series | L series

6CTA8.3-M220

6LTAA8.9-M315 | 6LTAA8.9-C300 | 6LTAA8.9-C325 | 6LTAA8.9-C360

6LTAA9.3 for wheel loader

6LT9.3 for wheel loader

6LTAA6.9-G2

NTA855-M350 | NTA855-M400 | NTA855-M450

L375-20



K19 | QSK19 | QSX19 | K38 | QSK38 | K50 | M11 | N series | QSN

EQB190 EQB210

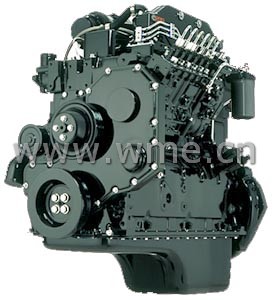

B series CUMMINS engine for truck

B series CUMMINS engine for construction equipment

C series CUMMINS engine for construction equipment

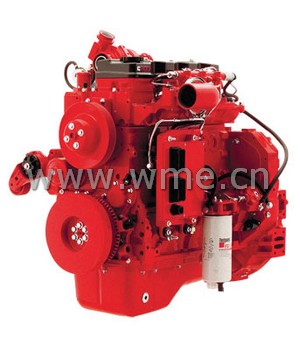

QSB series CUMMINS engine for construction equipment

QSL series CUMMINS engine for construction equipment

QSZ series CUMMINS engine for construction equipment

QSM series CUMMINS engine for construction equipment

ISBe series CUMMINS engine for construction equipment

ISDe series CUMMINS engine for truck

ISLe series CUMMINS engine for truck

B series CUMMINS engine for generator set

C series CUMMINS engine for generator set

QSZ series CUMMINS engine for generator set

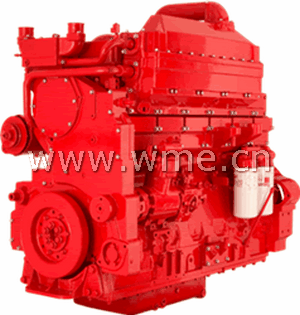

K19 series CUMMINS engine

K38 series CUMMINS engine

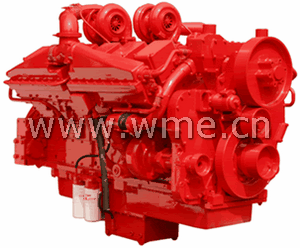

K50 series CUMMINS engine

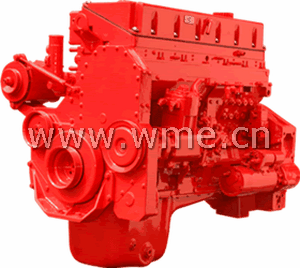

M11 series CUMMINS engine

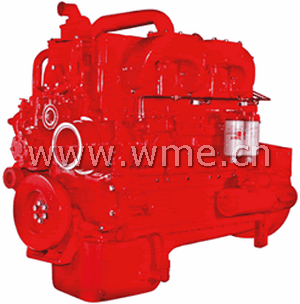

N series CUMMINS engine

ISM series CUMMINS engine

QSM11 series CUMMINS engine

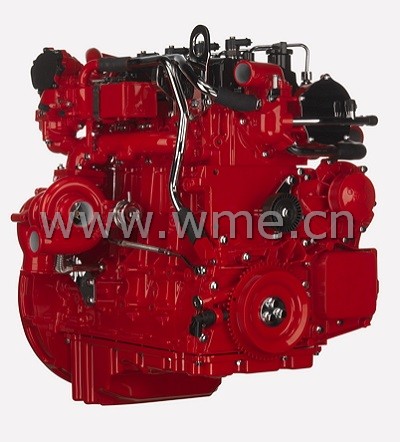

ISF2.8 series CUMMINS engine

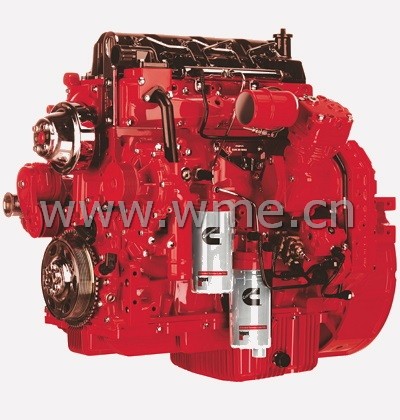

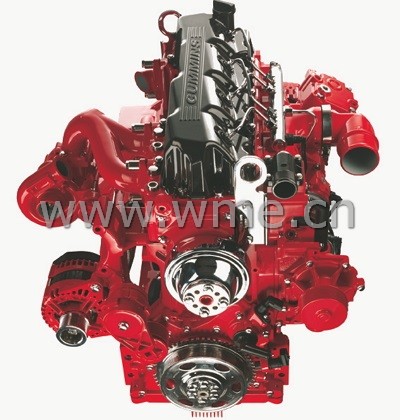

ISF3.8 series CUMMINS engine

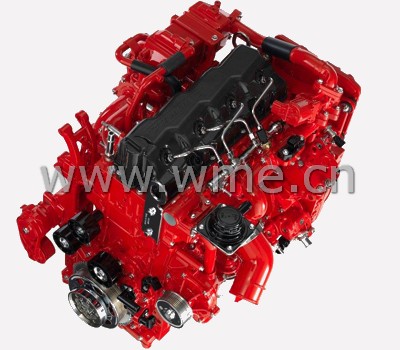

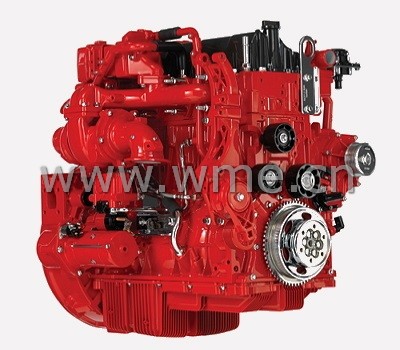

ISF4.5 series CUMMINS engine

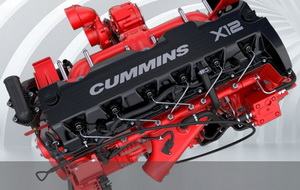

X series CUMMINS engine for construction equipment



↑Back to top











B series CUMMINS engine for truck






  Model Application Rated power
@running speed		 Max torque
@running speed		 Air intake Emission
B
4 cylinders / 3.9L		 B125 33 truck 92KW@2500rpm 410N.m@1500rpm turbocharged intercooled Euro III
B140 33 truck 103KW@2500rpm 502N.m@1500rpm turbocharged intercooled Euro III
B
6 cylinders / 5.9L		 B160 33 truck 125KW@2500rpm 500N.m@1400rpm turbocharged intercooled Euro III
B170 33 truck 125KW@2500rpm 560N.m@1300rpm turbocharged intercooled Euro III
B180 33 truck 132KW@2500rpm 610N.m@1500rpm turbocharged intercooled Euro III
B190 30 truck 140KW@2500rpm 640N.m@1500rpm turbocharged intercooled Euro III
B190 33 truck 155KW@2500rpm 700N.m@1500rpm turbocharged intercooled Euro III
B210 33 truck 155KW@2500rpm 700N.m@1500rpm turbocharged intercooled Euro III
B220 30 truck 155KW@2500rpm 700N.m@1500rpm turbocharged intercooled Euro III



↑Back to top











B series CUMMINS engine for construction equipment







CUMMINS engine B serial
Model Rated power@speed
(KW/rpm)		 Max.torque@speed
(N.m/rpm)
4BT3.9-C80 60/2000 330/1500
4BT3.9-C100 75/2400 330/1500
4BT3.9-C105 77/2800 330/1500
4BTA3.9-C125 93/2200 475/1500
4BTA3.9-C130 97/2500 475/1500

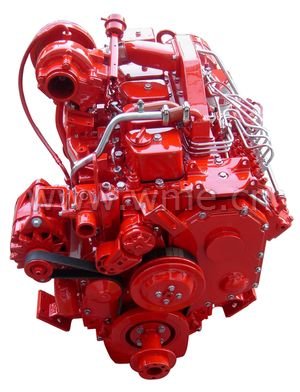

6BT5.9-C115 85/2000 430/1500
6BT5.9-C120 87/2200 436/1500
6BT5.9-C125 92/2400 425/1500
6BT5.9-C135 100/2000 570/1500
6BT5.9-C135 100/1900 590/1500
6BT5.9-C135 100/2200 560/1500
6BT5.9-C145 106/2100 580/1500
6BT5.9-C150 110/2300 560/1500
6BT5.9-C150 110/2200 580/1500
6BT5.9-C150 112/2500 565/1500
6BT5.9-C150 112/2400 580/1500
6BTA5.9-C150 114/2000 637/1500
6BTA5.9-C155 125/2300 630/1400
6BTA5.9-C170 125/2300 630/1400
6BTA5.9-C175 128/2100 680/1500
6BTA5.9-C180 132/2200 750/1300
6BTA5.9-C180 132/2500 630/1500
6BTAA5.9-C205 153/2200 870/1400



↑Back to top

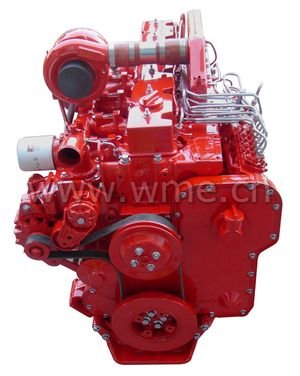

C series CUMMINS engine for construction equipment







CUMMINS engine B serial
Model Rated power@speed
(KW/rpm)		 Max.torque@speed
(N.m/rpm)
6CTA8.3-C145 105/1900 674/1400
6CTA8.3-C175 128/1850 820/1100
6CTA8.3-C180 134/2000 837/1400
6CTA8.3-C195 145/1900 820/1500
6CTA8.3-C215 160/2200 900/1500
6CTA8.3-C215 (highland) 160/2200 900/1500
6CTA8.3-C230 172/2200 1000/1500
6CTA8.3-C240 178/2200 1028/1500
6CTA8.3-C260 194/2200 1135/1500
6CTA8.9-C315 238/2200 1260/1200



↑Back to top











QSB series CUMMINS engine for construction equipment







CUMMINS engine QSB series
Model Rated power@speed
(KW/rpm)		 Max.torque@speed
(N.m/rpm)
QSB4.5-C80 60/2200 370/1400
QSB4.5-C95 71/2200 420/1500
QSB4.5-C100 74/2200 430/1400
QSB4.5-C110 82/2200 480/1500
QSB4.5-C125 92/2200 537/1500
QSB4.5-C130 97/2200 620/1500
QSB4.5-C150 112/2200 560/1400
QSB4.5-C160 118/2200 630/1500

QSB6.7-C130 97/2200 585/1400
QSB6.7-C140 105/2200 620/1500
QSB6.7-C155 114/2000 670/1400
QSB6.7-C160 118/2200 710/1400
QSB6.7-C170 125/2000 730/1400
QSB6.7-C180 132/2200 820/1500
QSB6.7-C190 140/2000 880/1400
QSB6.7-C205 151/2200 920/1500
QSB6.7-C215 160/2200 930/1500
QSB6.7-C220 164/2000 950/1400
QSB6.7-C230 172/2000 980/1500
QSB6.7-C240 179/2200 980/1500
QSB6.7-C260 194/2200 1052/1500







     QSB6.7-P160



↑Back to top

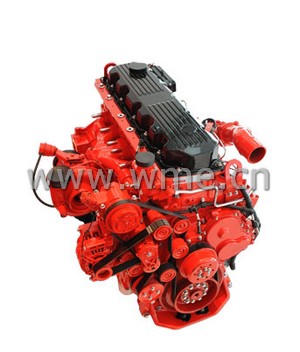

QSL series CUMMINS engine for construction equipment







CUMMINS engine QSL series
Model Rated power@speed
(KW/rpm)		 Max.torque@speed
(N.m/rpm)
QSL8.9-C220 164/2200 930/1400
QSL8.9-C240 179/2200 980/1400
QSL8.9-C260 194/2200 1080/1400
QSL8.9-C280 209/2200 1250/1400
QSL8.9-C295 220/2100 1350/1400
QSL8.9-C300 225/2000 1230/1300
QSL8.9-C325 239/2200 1260/1400
QSL8.9-C340 250/2200 1380/1400
QSL8.9-C360 264/2200 1480/1400

QSL9.3-C220 162/2200 984/1300
QSL9.3-C220 162/2200 940/1300
QSL9.3-C245 180/2200 1187/1300



↑Back to top

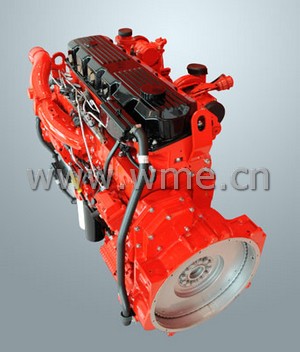

QSZ series CUMMINS engine for construction equipment







CUMMINS engine QSZ series
Model Rated power@speed
(KW/rpm)		 Max.torque@speed
(N.m/rpm)
QSZ13-C525 390/1900 2580/1300-1500
QSZ13-C550 410/1900 2650/1300-1500
QSZ13-C575 430/1900 2750/1300-1500
QSZ13-C450 335/1900 2200/1200-1400
QSZ13-C475 354/1900 2200/1200-1400
QSZ13-C500 372/1900 2750/1200-1400



↑Back to top

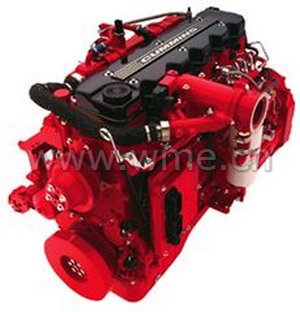

ISBe series CUMMINS engine for construction equipment







CUMMINS engine ISBe serial
Model Rated power@speed
(KW/rpm)		 Max.torque@speed
(N.m/rpm)		 Note
ISBe185 30 136/2500 700/1200~1700 Euro III turbocharged
ISBe220 30 162/2500 820/1500 Euro III turbocharged
ISBe250 30 184/2500 950/1400~1700 Euro III turbocharged
ISBe275 30 202/2200 950/1400~1700 Euro III turbocharged



↑Back to top











ISDe series CUMMINS engine for truck






  Model Application Rated power
@running speed		 Max torque
@running speed		 Air intake Emission
ISDe
4 cylinders / 4.5L		 ISDe140 30 truck / coarch 103KW@2500rpm 450N.m@1400rpm turbocharged intercooled Euro III
ISDe160 30 truck / coarch 118KW@2500rpm 600N.m@1400rpm turbocharged intercooled Euro III
ISDe180 30 truck / coarch 136KW@2500rpm 650N.m@1400rpm turbocharged intercooled Euro III
ISDe
6 cylinders / 6.7L		 ISDe185 30 truck / coarch 136KW@2500rpm 700N.m@1400rpm turbocharged intercooled Euro III
ISDe210 30 truck / coarch 155KW@2500rpm 800N.m@1400rpm turbocharged intercooled Euro III
ISDe230 30 truck / coarch 169KW@2500rpm 900N.m@1400rpm turbocharged intercooled Euro III
ISDe245 30 truck / coarch 180KW@2500rpm 925N.m@1400rpm turbocharged intercooled Euro III
ISDe270 30 truck / coarch 198KW@2500rpm 970N.m@1400rpm turbocharged intercooled Euro III
ISDe285 30 truck / coarch 210KW@2500rpm 970N.m@1400rpm turbocharged intercooled Euro III
ISDe
4 cylinders / 4.5L		 ISDe140 40 truck / coarch 103KW@2500rpm 550N.m@1400rpm turbocharged intercooled Euro IV
ISDe160 40 truck / coarch 118KW@2500rpm 600N.m@1400rpm turbocharged intercooled Euro IV
ISDe180 40 truck / coarch 132KW@2500rpm 700N.m@1400rpm turbocharged intercooled Euro IV
ISDe200 40 truck / coarch 140KW@2500rpm 740N.m@1400rpm turbocharged intercooled Euro IV
ISDe
6 cylinders / 6.7L		 ISDe185 40 truck / coarch 136KW@2500rpm 700N.m@1400rpm turbocharged intercooled Euro IV
ISDe210 40 truck / coarch 155KW@2500rpm 800N.m@1400rpm turbocharged intercooled Euro IV
ISDe230 40 truck / coarch 169KW@2500rpm 900N.m@1400rpm turbocharged intercooled Euro IV
ISDe245 40 truck / coarch 180KW@2500rpm 950N.m@1400rpm turbocharged intercooled Euro IV
ISDe270 40 truck / coarch 198KW@2500rpm 970N.m@1400rpm turbocharged intercooled Euro IV
ISDe285 40 truck / coarch 210KW@2500rpm 1020N.m@1400rpm turbocharged intercooled Euro IV
ISDe300 40 truck / coarch 221KW@2500rpm 1100N.m@1400rpm turbocharged intercooled Euro IV



↑Back to top

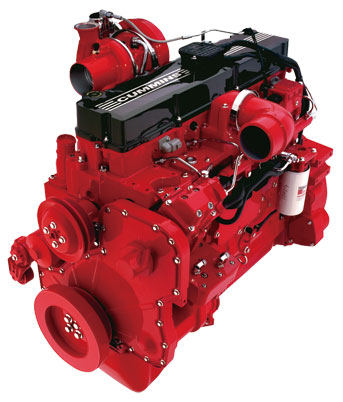

ISLe series CUMMINS engine for truck






  Model Application Rated power
@running speed		 Max torque
@running speed		 Air intake Emission
ISLe
6 cylinders / 8.9L		 ISLe270 30 truck / coarch 201KW@2100rpm 1050N.m@1000~1700rpm turbocharged intercooled Euro III
ISLe270 30 construction 201KW@2100rpm 1050N.m@1000~1900rpm turbocharged intercooled Euro III
ISLe290 30 truck / coarch 213KW@2100rpm 1050N.m@1000~1900rpm turbocharged intercooled Euro III
ISLe310 30 truck / coarch 228KW@2100rpm 1200N.m@1000~1700rpm turbocharged intercooled Euro III
ISLe340 30 truck / coarch 250KW@2100rpm 1425N.m@1100~1400rpm turbocharged intercooled Euro III
ISLe340 30 truck / coarch 250KW@2100rpm 1380N.m@1100~1500rpm turbocharged intercooled Euro III
ISLe375 30 truck / coarch 275KW@2100rpm 1550N.m@1100~1400rpm turbocharged intercooled Euro III
ISLe290 31 truck / coarch 213KW@2100rpm 1050N.m@1000~1900rpm turbocharged intercooled Euro III
ISLe310 31 truck / coarch 228KW@2200rpm 1200N.m@1000~1700rpm turbocharged intercooled Euro III
ISLe325 31 truck / coarch 239KW@2200rpm 1350N.m@1100~1600rpm turbocharged intercooled Euro III
ISLe
6 cylinders / 8.9L		 ISLe270 40 truck / coarch 199KW@2100rpm 1050N.m@1400rpm turbocharged intercooled Euro IV
ISLe290 40 truck / coarch 213KW@2100rpm 1050N.m@1400rpm turbocharged intercooled Euro IV
ISLe310 40 truck / coarch 228KW@2100rpm 1200N.m@1400rpm turbocharged intercooled Euro IV
ISLe315 40 truck / coarch 231KW@2100rpm 1200N.m@1400rpm turbocharged intercooled Euro IV
ISLe325 40 truck / coarch 239KW@2100rpm 1350N.m@1400rpm turbocharged intercooled Euro IV
ISLe340 40 truck / coarch 250KW@2100rpm 1425N.m@1400rpm turbocharged intercooled Euro IV
ISLe360 40 truck / coarch 265KW@2100rpm 1550N.m@1400rpm turbocharged intercooled Euro IV
ISLe375 40 truck / coarch 275KW@2100rpm 1550N.m@1400rpm turbocharged intercooled Euro IV
ISLe400 40 truck / coarch 294KW@2100rpm 1700N.m@1400rpm turbocharged intercooled Euro IV
ISLe290 41 truck / coarch 213KW@2100rpm 1050N.m@1100~1700rpm turbocharged intercooled Euro IV
ISLe310 41 truck / coarch 228KW@2100rpm 1200N.m@1100~1700rpm turbocharged intercooled Euro IV
ISLe325 41 truck / coarch 239KW@2100rpm 1350N.m@1100~1500rpm turbocharged intercooled Euro IV
ISLe340 41 truck / coarch 250KW@2100rpm 1425N.m@1100~1500rpm turbocharged intercooled Euro IV



↑Back to top











QSM series CUMMINS engine for construction equipment








Model Rated power@speed
hp(KW)@rpm		 Max.power@speed
hp(KW)@rpm		 Max.torque@speed
lb-ft(N.m)@rpm
QSM-C Tier 3
QSM-C400 400(298)@2100 446(333)@1800 1400(1898)@1400
QSM-C400 400(298)@2100 428(319)@1900 1400(1898)@1400
QSM-C400 400(298)@2100 402(300)@1800 1400(1898)@1400
QSM-C400 400(298)@1800   1400(1898)@1400
QSM-C375 375(280)@2100 400(298)@1800 1400(1898)@1400
QSM-C360 360(268)@2100 385(287)@1800 1350(1830)@1400
QSM-C360 360(268)@1800   1260(1708)@1400
QSM-C350 350(261)@2100 385(287)@1800 1309(1775)@1400
QSM-C350 350(261)@2100 372(277)@1800 1350(1830)@1400
QSM-C340 340(254)@1800   1260(1708)@1400
QSM-C335 335(250)@2100 365(272)@1800 1235(1674)@1400
QSM-C330 330(246)@2100 330(246)@2100 1235(1674)@1400
QSM-C300 300(224)@2100   1050(1424)@1400
QSM-C290 290(216)@2100 320(239)@1800 1090(1478)@1400
QSM-C Tier 2
QSM-C400 400(298)@2100 470(351)@1800 1400(1898)@1400
QSM-C400 400(298)@2100 446(333)@1800 1400(1898)@1400
QSM-C400 400(298)@2100 403(300)@1900 1400(1898)@1400
QSM-C400 400(298)@1800   1400(1898)@1400
QSM-C385 385(287)@1800 385(287)@1800 1400(1898)@1400
QSM-C375 375(280)@2100 400(298)@1800 1400(1898)@1400
QSM-C375 375(280)@2000 400(298)@1800 1400(1898)@1400
QSM-C360 360(268)@2100 396(295)@1800 1350(1830)@1400
QSM-C360 360(268)@1800   1260(1708)@1400
QSM-C350 350(261)@2100 385(287)@1800 1309(1775)@1400
QSM-C335 335(250)@2100 367(274)@1800 1257(1704)@1400
QSM-C335 335(250)@2000 367(274)@1800 1321(1791)@1400
QSM-C335 335(250)@1800 335(250)@1800 1255(1702)@1400
QSM-C330 330(246)@2100 365(272)@1800 1234(1673)@1400
QSM-C330 330(246)@2100 353(263)@1800 1075(1458)@1400
QSM-C330 330(246)@2100 340(254)@1800 1170(1586)@1400
QSM-C330 330(246)@2100 330(246)@1800 1235(1674)@1400
QSM-C320 320(239)@2000 350(261)@1800 1260(1708)@1400
QSM-C315 315(235)@2100 315(235)@2100 1178(1597)@1400
QSM-C315 315(235)@1800 315(235)@1800 1160(1573)@1400
QSM-C299 299(223)@1800 336(251)@1400 1260(1708)@1400
QSM-C299 299(223)@2100 315(235)@1800 1182(1603)@1400
QSM-C290 290(216)@2100 320(239)@1800 1092(1481)@1400
QSM-C290 290(216)@2100 299(223)@1800 952(1291)@1400
QSM-C280 280(209)@2100 280(209)@2100 950(1288)@1400
QSM-C270 270(201)@1800 270(201)@1800 1010(1369)@1400
QSM-C250 250(186)@2100 250(186)@2100 845(1146)@1300



↑Back to top











B series CUMMINS engine for generator set







NO. 机型
Engine Type		 FR 额定功率
Prime Power		 备用功率
Standby Power		 油泵
型式 Pump Type		 调速器型式 Governor Type 油泵厂家
Pump Supplier
1 4B3.9-G1 FR92340 24 kW @ 1500 r/min 27 kW @ 1500 r/min A RSV BYC
2 4B3.9-G2 FR92539 24 kW @ 1500 r/min 27 kW @ 1500 r/min A GAC BYC
3 4BT3.9-G1 FR92341 36 kW @ 1500 r/min 40 kW @ 1500 r/min A RSV BYC
4 4BT3.9-G2 FR92540 36 kW @ 1500 r/min 40 kW @ 1500 r/min A GAC BYC
5 4BTA3.9-G2 FR92541 50 kW @ 1500 r/min 55 kW @ 1500 r/min A GAC BYC
6 4BTA3.9-G2 FR93145 50 kW @ 1500 r/min 55 kW @ 1500 r/min A SEGMA BYC
(ACA98191)
7 4BTA3.9-G2 FR92578 50 kW @ 1500 r/min 55 kW @ 1500 r/min A 孚创FUCHUANG BYC
8 4BTA3.9-G1 FR92888 58 kW @ 1500r/min 64kW @ 1500r/min PB RSV BYC (AC97968)
9 4BTA3.9-G2 FR92625 58 kW @ 1500r/min 64kW @ 1500r/min PB GAC BYC (AC97968)
67 kW @ 1800r/min 74kW @ 1800r/min
10 4BTA3.9-G2 (12V ) FR92668 58 kW @ 1500r/min 64kW @ 1500r/min PB GAC BYC (AC97968)
67 kW @ 1800r/min 74kW @ 1800r/min
11 6BT5.9-G1 FR91589 86 kW @ 1500 r/min 92 kW @ 1500 r/min A RSV WEIFU
12 6BT5.9-G1 FR92489 86 kW @ 1500 r/min 92 kW @ 1500 r/min A RSV BYC
13 6BT5.9-G2 FR92632 86 kW @ 1500 r/min 92 kW @ 1500 r/min A GAC BYC
14 6BT5.9-G2 (12V ) FR92650 86 kW @ 1500 r/min 92 kW @ 1500 r/min A GAC BYC
15 6BT5.9-G2 FR93146 86 kW @ 1500 r/min 92 kW @ 1500 r/min A SEGMA BYC (ACA98191)
16 6BT5.9-G1 FR92942 92 kW @ 1500 r/min 101 kW @ 1500 r/min PB RSV BYC
17 6BT5.9-G2 FR92830 96 kW @ 1500 r/min 106 kW @ 1500 r/min PB GAC BYC (ACA97899)
115 kW @ 1800 r/min 127 kW @ 1500 r/min
18 6BT5.9-G2 FR92831 96 kW @ 1500 r/min 106 kW @ 1500 r/min PB GAC(12V) BYC (ACA97899)
115 kW @ 1800 r/min 127 kW @ 1500 r/min
19 6BT5.9-G2 FR92832 96 kW @ 1500 r/min 106 kW @ 1500 r/min PB 孚创FUCHUANG BYC (ACA97899)
115 kW @ 1800 r/min 127 kW @ 1500 r/min
20 6BTA5.9-G2 FR92306 106 kW @ 1500 r/min 116 kW @ 1500 r/min PB GAC BYC
120 kW @ 1800 r/min 132 kW @ 1800 r/min
21 6BTA5.9-G2(12V) FR92943 106 kW @ 1500 r/min 116 kW @ 1500 r/min PB GAC BYC (AC98016)
120kW @ 1800 r/min 132 kW @ 1800 r/min
22 6BTAA5.9-G2 FR9266-03 120 kW @ 1500 r/min 130 kW @ 1500 r/min PB GAC BYC
132 kW @ 1800 r/min 145 kW @ 1800 r/min
23 6BTAA5.9-G2 FR92871 120 kW @ 1500 r/min 130 kW @ 1500 r/min PB GAC BYC (AC98016)
132 kW @ 1800 r/min 145 kW @ 1800 r/min
24 6BTAA5.9-G2 (12V) FR92944 120 kW @ 1500 r/min 130 kW @ 1500 r/min PB GAC BYC (AC98016)
132 kW @ 1800 r/min 145 kW @ 1800 r/min



↑Back to top











C series CUMMINS engine for generator set







NO. 机型
Engine Type		 FR 额定功率
Prime Power		 备用功率
Standby Power		 油泵
型式 Pump Type		 调速器型式 Governor Type 油泵厂家
Pump Supplier
25 6CT8.3-G2 FR92183 133kW @ 1500r/min 145 kW @ 1500r/min PB GAC BYC
26 6CT8.3-G2 FR92442 133kW @ 1500r/min 145 kW @ 1500r/min PB 孚创FUCHUANG BYC
27 6CTA8.3-G1 FR93038 163 kW @ 1500 r/min PB RSV BYC (ACA98085)
28 6CTA8.3-G2 FR91961 163 kW @ 1500 r/min 180 kW @ 1500 r/min PB GAC BYC
170 kW @ 1800 r/min 187 kW @ 1800 r/min
29 6CTA8.3-G2 FR91651 163 kW @ 1500 r/min 180 kW @ 1500 r/min PB 孚创FUCHUANG BYC
30 6CTA8.3-G2 FR92995 163 kW @ 1500 r/min 180 kW @ 1500 r/min PB SEGMA BYC (ACA98093)
170 kW @ 1800 r/min 187 kW @ 1800 r/min
31 6CTAA8.3-G2 FR92110 183 kW @ 1500 r/min 203 kW @ 1500 r/min P7100 GAC BYC
190 kW @ 1800 r/min 210 kW @ 1800 r/min
32 6LTAA8.9-G2 FR92516 220kW @ 1500r/min 240 kW @ 1500r/min P7100 GAC BYC
235kW @ 1800r/min 258kW @ 1800r/min
33 6LTAA8.9-G2 FR92996 220kW @ 1500r/min 240 kW @ 1500r/min P7100 SEGMA BYC (ACA98093)
235kW @ 1800r/min 258kW @ 1800r/min



↑Back to top











QSZ series CUMMINS engine for generator set







CUMMINS engine QSZ series
Model Rated power@speed
(KW/rpm)		 Max.torque@speed
(N.m/rpm)
QSZ13-G2 400/1500
QSZ13-G2 450/1800
QSZ13-G3 450/1800
QSZ13-G3 450/1800



↑Back to top











K19 series CUMMINS engine







K19 series CUMMINS engine

Type: 4 stroke, 6 cylinders in line.

Intake way: Turbocharged and intercooled

Swept volume: 19L

Cylinder diameter * Stroke length: 159*159mm

Power range: 450~890hp; Max torque: 2586N.m; Weight: 1838KGS

* C for construction equipment; P for stationary power; L for vehicle in rail

Model Rated power@speed Max.torque@speed
KT19-C450 450hp@2100rpm 1907N.m@1300rpm
KTA19-C525 525hp@2100rpm 2237N.m@1300rpm
KTA19-C600 600hp@2100rpm 2237N.m@1500rpm
KTTA19-C675 675hp@2100rpm 2698N.m@1400rpm
KTTA19-C700 700hp@2100rpm 2731N.m@1400rpm

KT19-P450 450hp@2100rpm 1907N.m@1300rpm
KTA19-P525 525hp@2100rpm 2237N.m@1300rpm
KTA19-P600 600hp@2100rpm 2237N.m@1500rpm
KTA19-P700 700hp
KTA19-P750 750hp@1800rpm
KTTA19-P675 675hp@2100rpm 2698N.m@1400rpm
KTTA19-P700 700hp@2100rpm 2731N.m@1400rpm

KT19-L450 450hp@2100rpm 1907N.m@1300rpm
KTA19-L525 525hp@2100rpm 2237N.m@1300rpm
KTA19-L600 600hp@2100rpm 2237N.m@1500rpm
KTTA19-L675 675hp@2100rpm 2698N.m@1400rpm
KTTA19-L700 700hp@2100rpm 2731N.m@1400rpm

KTA19-G2 300KW/375KVA for backup use
KTA19-G3 360KW/450KVA for backup use
KTA19-G4 400KW/500KVA for backup use
KTA19-G5 450KW/563KVA for backup use
KTAA19-G6A 500KW/625KVA for backup use

KTA19-D(M) 448KW@1500rpm for regular use























































Model Max.power@speed
KT19-M365 365hp@1800rpm
KT19-M380 380hp@1800rpm
KT19-M425 425hp@1800rpm
KT19-M470 470hp@1800rpm
KT19-M510 510hp@2100rpm
KTA19-M470 470hp@1800rpm
KTA19-M500 500hp@1800rpm
KTA19-M530 530hp@1800rpm
KTA19-M550 550hp@2100rpm
KTA19-M600 600hp@1800rpm
KTA19-M640 640hp@1800rpm
KTA19-M700 700hp@2100rpm





























Model for backup use
power@speed		 for regular use
power@speed
KTA19-G2(M) 369KW@1500rpm 336KW@1500rpm



* QSK19 series CUMMINS engine are with EFI technology. (EFI= electronic fuel injection, which is also known as common rail)

Swept volume: 19L

Power range: 369~669KW



↑Back to top











K38 series CUMMINS engine







K38 series CUMMINS engine

Type: 4 stroke, 12 cylinder in V type.

Intake way: Turbocharged and intercooled

Swept volume: 38L

Cylinder diameter * Stroke length: 159*159mm

Power range: 750~1600hp; Weight: 4222KGS

* C for construction equipment; P for stationary power; L for vehicle in rail

Model Rated power@speed Max.torque@speed
KT38-C925 925hp@2100rpm 4095N.m@1300rpm
KTA38-C1050 1050hp@2100rpm 4631N.m@1300rpm
KTA38-C1200 1200hp@2100rpm 4678N.m@1500rpm
KTTA38-C1350 1350hp@2100rpm 5264N.m@1400rpm

KT38-P925 925hp@2100rpm 4095N.m@1300rpm
KTA38-P1050 1050hp@2100rpm 4631N.m@1300rpm
KTA38-P1200 1200hp@2100rpm 4678N.m@1500rpm
KTTA38-P1350 1350hp@2100rpm 5264N.m@1400rpm

KT38-L925 925hp@2100rpm 4095N.m@1300rpm
KTA38-L1050 1050hp@2100rpm 4631N.m@1300rpm
KTA38-L1200 1200hp@2100rpm 4678N.m@1500rpm
KTTA38-L1350 1350hp@2100rpm 5264N.m@1400rpm

































Model Max.power@speed
KT38-M800 800hp@1800rpm
KT38-M850 850hp@1800rpm
KTA38-M940 940hp@1800rpm
KTA38-M1045 1045hp@1800rpm
KTA38-M750 750hp@2100rpm
KTA38-M850 850hp@1800rpm
KTA38-M900 900hp@1800rpm
KTA38-M1000 1000hp@1800rpm
KTA38-M1100 1100hp@2100rpm
KTA38-M1050 1050hp@1800rpm
KTA38-M1200 1200hp@1800rpm
KTA38-M1300 1300hp@2100rpm





  KTA38-G5 | KTA38-M2



* QSK38 series CUMMINS engine are with EFI technology. (EFI= electronic fuel injection, which is also known as common rail)

Swept volume: 38L

Power range: 806~1200KW



↑Back to top











K50 series CUMMINS engine







K50 series CUMMINS engine

Swept volume: 50L

* C for construction equipment; P for stationary power; L for vehicle in rail

Model Rated power@speed Max.torque@speed
KTA50-C1050 1350hp@2100rpm 5264N.m@1300rpm
KTA50-C1200 1600hp@2100rpm 5966N.m@1300rpm
KTTA50-C1350 1800hp@2100rpm 7020N.m@1300rpm
KTA50-C1600 1600hp@2100rpm

KTA50-P1050 1350hp@2100rpm 5264N.m@1300rpm
KTA50-P1200 1600hp@2100rpm 5966N.m@1300rpm
KTTA50-P1350 1800hp@2100rpm 7020N.m@1300rpm

KTA50-L1050 1350hp@2100rpm 5264N.m@1300rpm
KTA50-L1200 1600hp@2100rpm 5966N.m@1300rpm
KTTA50-L1350 1800hp@2100rpm 7020N.m@1300rpm

K1800E1343 1800hp@1900rpm 7085N.m@1300rpm
K2000E1492 2000hp@1900rpm 7865N.m@1300rpm



































Model Max.power@speed
KTA50-M1250 1250hp@1800rpm
KTA50-M1385 1385hp@1800rpm
KTA50-M1400 1400hp@2100rpm
KTA50-M1600 1600hp@1800rpm
KTA50-M1700 1700hp@1800rpm
KTA50-M1800 1800hp@2100rpm
KTA50-M1875 1875hp@1950rpm





















KTA50-G3 | KTA50-G8 | KTA50-G9



↑Back to top











M11 series CUMMINS engine







M11 series CUMMINS engine

Type: 4 stroke, 6 cylinders in line.

Intake way: Turbocharged and intercooled

Swept volume: 11L

Cylinder diameter * Stroke length: 125*147mm

Max power: 420hp ; Max torque: 1650N.m ; Weight: 940KGS

emission: EURO-3

* M11-C245/290/310 fit for plateau altitude 4500m.

Model Rated power@speed Max.torque@speed Application
M11-C245 245hp@2100rpm 1058N.m@1300rpm automobile
M11-C270 270hp@2100rpm 1200N.m@1300rpm automobile
M11-C290 290hp@2100rpm 1200N.m@1300rpm automobile
M11-C310 310hp@2100rpm 1265N.m@1300rpm automobile
M11-C330 330hp@2100rpm 1250N.m@1300rpm automobile
M11-C350 350hp@2100rpm 1560N.m@1300rpm automobile

























Model Rated power@speed Max.torque@speed Application
M11-C225 225hp@2100rpm 1030N.m@1300rpm Industry
M11-C250 250hp@2100rpm 1146N.m@1300rpm Industry
M11-C270 270hp@2100rpm 1288N.m@1300rpm Industry
M11-C290 290hp@2100rpm 1330N.m@1300rpm Industry
M11-C300 300hp@2100rpm 1376N.m@1300rpm Industry
M11-C310 310hp@2100rpm 1265N.m@1300rpm Industry
M11-C330 330hp@2100rpm 1458N.m@1300rpm Industry
M11-C350 350hp@2100rpm 1560N.m@1300rpm Industry

























Model Rated power@speed Max.torque@speed Application
M11-P225 225hp@2100rpm 1030N.m@1300rpm Industry
M11-P250 250hp@2100rpm 1146N.m@1300rpm Industry
M11-P270 270hp@2100rpm 1288N.m@1300rpm Industry
M11-P290 290hp@2100rpm 1330N.m@1300rpm Industry
M11-P300 300hp@2100rpm 1376N.m@1300rpm Industry
M11-P310 310hp@2100rpm 1265N.m@1300rpm Industry
M11-P330 330hp@2100rpm 1458N.m@1300rpm Industry
M11-P350 350hp@2100rpm 1560N.m@1300rpm Industry

























Model Rated power@speed Max.torque@speed Application
M11-L225 225hp@2100rpm 1030N.m@1300rpm Industry
M11-L250 250hp@2100rpm 1146N.m@1300rpm Industry
M11-L270 270hp@2100rpm 1288N.m@1300rpm Industry
M11-L290 290hp@2100rpm 1330N.m@1300rpm Industry
M11-L300 300hp@2100rpm 1376N.m@1300rpm Industry
M11-L310 310hp@2100rpm 1265N.m@1300rpm Industry
M11-L330 330hp@2100rpm 1458N.m@1300rpm Industry
M11-L350 350hp@2100rpm 1560N.m@1300rpm Industry



↑Back to top











N series CUMMINS engine







N series CUMMINS engine

Type: 4 stroke, 6 cylinders in line.

Intake way: Turbocharged and intercooled

Swept volume: 14L

Cylinder diameter * Stroke length: 140*152mm

Power range: 185~545hp ; Max torque: 1763N.m ; Weight: 1250KGS

Model Rated power@speed Max.torque@speed
NTC 250hp(187KW)@2100rpm 1017N.m@1500rpm
NTC 290hp(216KW)@2100rpm 1261N.m@1500rpm
NTC 350hp(261KW)@2100rpm 1593N.m@1300rpm
NTC 400hp(298KW)@2100rpm 1627N.m@1400rpm













* NTC-250/290/350 fit for plateau altitude 4500m.







* C for construction equipment; P for stationary power; L for vehicle in rail

Model Rated power@speed Max.torque@speed
NT855-C/P/L250 250hp(187KW)@2100rpm 1017N.m@1500rpm
NT855-C/P/L280 280hp(175KW)@2100rpm 1078N.m@1250rpm
NT855-L290 290hp(216KW)@2100rpm 1261N.m@1300rpm
NTA855-C/P/L310 310hp(231KW)@2100rpm 1261N.m@1400rpm
NTA855-C/P/L335 335hp(250KW)@2100rpm 1364N.m@1500rpm
NTA855-C/P/L360 360hp(268KW)@2100rpm 1464N.m@1500rpm
NTA855-C/P/L400 400hp(298KW)@2100rpm 1559N.m@1500rpm
NTA855-C/P/L450 450hp(336KW)@2100rpm 2100N.m@1500rpm























* NTC/P/L-280/310/335/360 fit for plateau altitude 4500m.



NTA855-P400 | NTA855-P500





Model Max.power@speed
NT855-M240 240hp(179KW)@1800rpm
NT855-M270 280hp(175KW)@1800rpm
NT855-M300 290hp(216KW)@1800rpm
NT855-M340 310hp(231KW)@1800rpm
NT855-M360 335hp(250KW)@2100rpm
NTA855-M350 360hp(268KW)@1800rpm
NTA855-M380 400hp(298KW)@1800rpm
NTA855-M400 450hp(336KW)@2100rpm

























Model for backup use
power@speed		 for regular use
power@speed
NTA855-G1(M) 265KW@1500rpm 240KW@1500rpm
NTA855-G2(M) 321KW@1500rpm 263KW@1500rpm
NTA855-G4(M) 351KW@1500rpm 317KW@1500rpm



↑Back to top











ISM series CUMMINS engine









Type: 6 cylinders in line.

Intake way: Turbocharged and intercooled

Swept volume: 10.8L

Cylinder diameter * Stroke length: 125*147mm

Power range: 308~440hp

Weight: 940KGS; Dimension: 1335*825*1159mm

Model Rated power@speed Max.torque@speed Emission
ISM340E 20 250KW@1900rpm 1669N.m@1200rpm EURO-2
ISM380E 20 280KW@1900rpm 1825N.m@1200rpm
ISM405E 20 298KW@1900rpm 2000N.m@1200rpm
ISM440E 20 324KW@1800rpm 2100N.m@1200rpm
ISME308 30 226KW@1900rpm 1450N.m@1200rpm EURO-3
ISME345 30 254KW@1900rpm 1710N.m@1200rpm
ISME385 30 283KW@1900rpm 1835N.m@1200rpm
ISME420 30 306KW@1900rpm 2010N.m@1200rpm
ISME335 30 250KW@1900rpm 1410N.m@1200~1600rpm
ISME360 30 269KW@1900rpm 1410N.m@1200rpm
ISME380 30 284KW@1900rpm 1590N.m@1200rpm
ISM11E4 308 226KW@1900rpm 1500N.m@1200~1300rpm EURO-4
ISM11E4 345 250KW@1900rpm 1699N.m@1200rpm
ISM11E4 385 280KW@1900rpm 1825N.m@1200rpm
ISM11E4 420 301KW@1900rpm 2000N.m@1200rpm
ISM11E4 440 318KW@1900rpm 2080N.m@1200~1300rpm
ISM11E5 345 250KW@1900rpm 1699N.m@1200rpm EURO-5
ISM11E5 385 280KW@1900rpm 1825N.m@1200rpm
ISM11E5 420 301KW@1900rpm 2000N.m@1200rpm
ISM11E5 440 318KW@1900rpm 2080N.m@1200~1300rpm



↑Back to top











QSM11 series CUMMINS engine









Swept volume: 10.8L

Intake way: Turbocharged and intercooled

Cylinder diameter * Stroke length: 125*147mm

Compression ratio: 16.3:1

Model Power Dimension
L * W * H		 Dry weight Wet weight
QSM11 G-Drive TierⅡ 314~470hp 1610*920*1150mm 973KGS 1007KGS
QSM11-G3/4 TierⅢ 345~470hp 1312*930*1158mm 993KGS 1041KGS
QSM11 TierⅡ 250~400hp 1307*850*1256mm 940KGS 984KGS
QSM11 TierⅢ 290~400hp 1307*912*1279mm 940KGS 984KGS

















Model 50Hz main power 50Hz backup power 60Hz main power 60Hz backup power Application Emission
QSM11-G1 234KWm 257KWm 359KWm 395KWm generator set EPA Tier Ⅱ
EURO-2
QSM11-G2 292KWm 321KWm 427KWm 470KWm generator set
QSM11-G3 257KWm 292KWm 387KWm 443KWm generator set EPA Tier Ⅲ
EURO-3
QSM11-G4 292KWm 322KWm 426KWm 470KWm generator set





















Model Rated power@speed Max.power@speed Max.torque@speed Power type Emission
QSM11 298KW@2100rpm 351KW@1800rpm 1898N.m@1400rpm Limited EPA Tier Ⅱ
EURO-2
QSM11 298KW@2100rpm 333KW@1800rpm 1898N.m@1400rpm Limited
QSM11 298KW@2100rpm 300KW@1400rpm 1898N.m@1400rpm Intermittent
QSM11 298KW@1800rpm 298KW@1800rpm 1898N.m@1400rpm Intermittent
QSM11 287KW@1800rpm 287KW@1800rpm 1898N.m@1400rpm Intermittent
QSM11 280KW@2100rpm 298KW@1800rpm 1898N.m@1400rpm Intermittent
QSM11 280KW@2000rpm 298KW@1800rpm 1898N.m@1400rpm Intermittent
QSM11 268KW@2100rpm 295KW@1800rpm 1830N.m@1400rpm Intermittent
QSM11 268KW@1800rpm 268KW@1800rpm 1708N.m@1400rpm Continuous
QSM11 261KW@2100rpm 287KW@1800rpm 1775N.m@1400rpm Intermittent
QSM11 250KW@2100rpm 274KW@1800rpm 1704N.m@1400rpm Intermittent
QSM11 250KW@2000rpm 274KW@1800rpm 1791N.m@1400rpm Intermittent
QSM11 250KW@1800rpm 250KW@1800rpm 1702N.m@1400rpm Continuous
QSM11 245KW@2100rpm 272KW@1800rpm 1673N.m@1400rpm Intermittent
QSM11 246KW@2100rpm 263KW@1800rpm 1458N.m@1400rpm Intermittent
QSM11 246KW@2100rpm 254KW@1800rpm 1586N.m@1400rpm Intermittent
QSM11 246KW@2100rpm 246KW@1800rpm 1674N.m@1400rpm Intermittent
QSM11 239KW@2000rpm 261KW@1800rpm 1708N.m@1400rpm Intermittent
QSM11 235KW@2100rpm 235KW@2100rpm 1597N.m@1400rpm Intermittent
QSM11 235KW@1800rpm 235KW@1800rpm 1573N.m@1400rpm Continuous
QSM11 223KW@1800rpm 251KW@1400rpm 1708N.m@1400rpm Continuous
QSM11 223KW@2100rpm 235KW@1800rpm 1603N.m@1400rpm Intermittent
QSM11 216KW@2100rpm 239KW@1800rpm 1481N.m@1400rpm Intermittent
QSM11 216KW@2100rpm 223KW@1800rpm 1291N.m@1400rpm Intermittent
QSM11 209KW@2100rpm 209KW@2100rpm 1288N.m@1300rpm Intermittent
QSM11 201KW@1800rpm 201KW@1800rpm 1369N.m@1400rpm Continuous
QSM11 186KW@2100rpm 186KW@2100rpm 1146N.m@1300rpm Intermittent
QSM11 298KW@2100rpm 333KW@1800rpm 1898N.m@1400rpm limited EPA Tier Ⅲ
EURO-3
QSM11 298KW@2100rpm 319KW@1900rpm 1898N.m@1400rpm limited
QSM11 298KW@2100rpm 300KW@1800rpm 1898N.m@1400rpm Intermittent
QSM11 298KW@1800rpm 298KW@1800rpm 1898N.m@1400rpm Intermittent
QSM11 280KW@2100rpm 298KW@1800rpm 1898N.m@1400rpm Intermittent
QSM11 268KW@2100rpm 287KW@1800rpm 1830N.m@1400rpm Intermittent
QSM11 268KW@1800rpm 268KW@1800rpm 1708N.m@1400rpm Continuous
QSM11 261KW@2100rpm 287KW@1800rpm 1775N.m@1400rpm Intermittent
QSM11 261KW@2000rpm 277KW@1800rpm 1830N.m@1400rpm Intermittent
QSM11 254KW@1800rpm 277KW@1800rpm 1830N.m@1400rpm Intermittent
QSM11 250KW@2100rpm 272KW@1800rpm 1674N.m@1400rpm Intermittent
QSM11 246KW@2100rpm 246KW@2100rpm 1674N.m@1400rpm Intermittent
QSM11 224KW@2100rpm 224KW@2100rpm 1424N.m@1400rpm Intermittent
QSM11 224KW@2000rpm 256KW@1800rpm 1575N.m@1400rpm Intermittent
QSM11 216KW@2100rpm 239KW@1800rpm 1478N.m@1400rpm Intermittent



↑Back to top

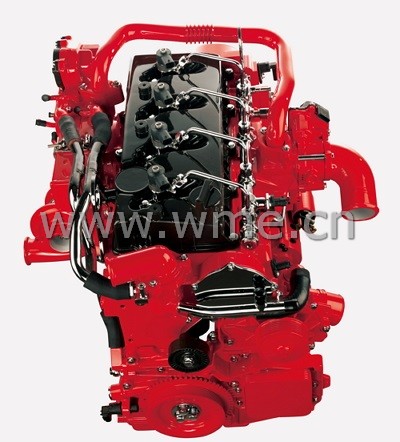

ISF2.8 series CUMMINS engine











Cyinder Displacement max Power max Torque Dimension
L * W * H		 Net Weight
4 cylinders in line 2.78L 161HP 360N·m

EGR642*655*718mm
SCR704*647*734mm

 214KGS



↑Back to top









Model rated Power max Torque Emission
ISF2.8s3129T 129(96)@3200rpm 310N·m@1600~2700rpm Euro III
ISF2.8s3148T 148(110)@3200rpm 360N·m@1800~2700rpm Euro III
ISF2.8s4107P 107(80)@3600rpm 280N·m@1400~2400rpm Euro IV
ISF2.8s4129P 129(96)@3600rpm 280N·m@1400~3000rpm Euro IV
280N·m@1250~3000rpm Euro IV
ISF2.8s4161P 161(120)@3600rpm 360N·m@1500~3000rpm Euro IV
ISF2.8s4129T 129(96)@3200rpm 310N·m@1600~2700rpm Euro IV
ISF2.8s4129V 129(96)@3200rpm 310N·m@1400~2700rpm Euro IV
ISF2.8s4148T 148(110)@3200rpm 360N·m@1800~2700rpm Euro IV
ISF2.8s4148V 148(110)@3200rpm 360N·m@1500~2700rpm Euro IV
ISF2.8s4117V 117(87)@3200rpm 260N·m@1300~3200rpm Euro IV
ISF2.8s5161P 161(120)@3200rpm 360N·m@1600~3200rpm Euro V
ISF2.8s5129P 129(96)@3600rpm 280N·m@1200~3000rpm Euro V
ISF2.8s5148T 148(110)@2900rpm 360N·m@1500~2900rpm Euro V
ISF2.8s5129T 129(96)@2900rpm 315N·m@1500~2900rpm Euro V



QSF2.8 53KW@2200rpm



↑Back to top











ISF3.8 series CUMMINS engine











Cyinder Displacement max Power max Torque Dimension
L * W * H		 Net Weight
4 cylinders in line 3.78L 168HP 600N·m

810*695*806mmm

 355KGS



↑Back to top









Model rated Power max Torque Emission
ISF3.8s3141 141(105)@2600rpm 450N·m@1200~2200rpm Euro III
ISF3.8s3154 154 (115)@2600rpm 500N·m@1200~1900rpm Euro III
ISF3.8s3168 168 (125) @ 2600rpm 600N·m@1300~1700rpm Euro III
F3.8s3141 141(105) @ 2600rpm 450N·m@1300~1500rpm Euro III
F3.8s3122 122(90) @ 2600rpm 380N·m@1300~1500rpm Euro III
ISF3.8s4141 141(105) @ 2600rpm 450N·m@1200~2200rpm Euro IV
ISF3.8s4154 154 (115) @2600rpm 500N·m@1200~1900rpm Euro IV
ISF3.8s4168 168(125) @ 2600rpm 600N·m@1300~1700rpm Euro IV
ISF3.8e4R141 141 (105) @ 2600rpm 450N·m@1200~2200rpm Euro IV
ISF3.8e4R154 154 (115) @ 2600rpm 500N·m@1200~1900rpm Euro IV
ISF3.8e4R168 168 (125) @ 2600rpm 600N·m@1300~1700rpm Euro IV
ISF3.8s5141 141(105) @ 2600rpm 450N·m@1200~2200rpm Euro V
ISF3.8s5154 154 (115) @ 2600rpm 500N·m@1200~1900rpm Euro V
ISF3.8s5168 168(125) @ 2600rpm 600N·m@1300~1700rpm Euro V



QSF3.8 97KW@2500rpm

QSF3.8 104KW@2200rpm



↑Back to top











ISF4.5 series CUMMINS engine









Application Air in Fuel Cylinder Displacement max Power rated running speed Emission
for truck, coach turbocharging intercooling diesel 4 cylinders in line 4.5L 157KW 2500rpm Euro VI



↑Back to top











X series CUMMINS engine for construction equipment






Model Cyinder Displacement Power Torque Dimension
L * W * H		 Net Weight Emission
X11 6 cylinders in line 10.5L 205~250KW 1420~1800N·m 1487*898*1051mm 831KGS Euro V / VI
X12 6 cylinders in line 11.8L 265~375KW 1900~2300N·m 1487*898*1051mm 851KGS Euro V / VI
X13 6 cylinders in line 12.9L 382~412KW 2400~2600N·m 1487*898*1051mm 915KGS Euro V / VI
X11 Engineering Edition 6 cylinders in line 10.5L 205~250KW 1420~1800N·m 1487*898*1051mm 843KGS Euro V / VI
X12 Engineering Edition 6 cylinders in line 11.8L 265~375KW 1900~2300N·m 1487*898*1051mm 885KGS Euro V / VI
X12N 6 cylinders in line 11.8L 250~279KW 1500~1700N·m 1487*990*1051mm 842KGS Euro V



↑Back to top









All specifications are approximate. Specifications are subject to change without notice.





CUMMINS logo

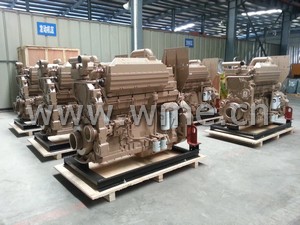

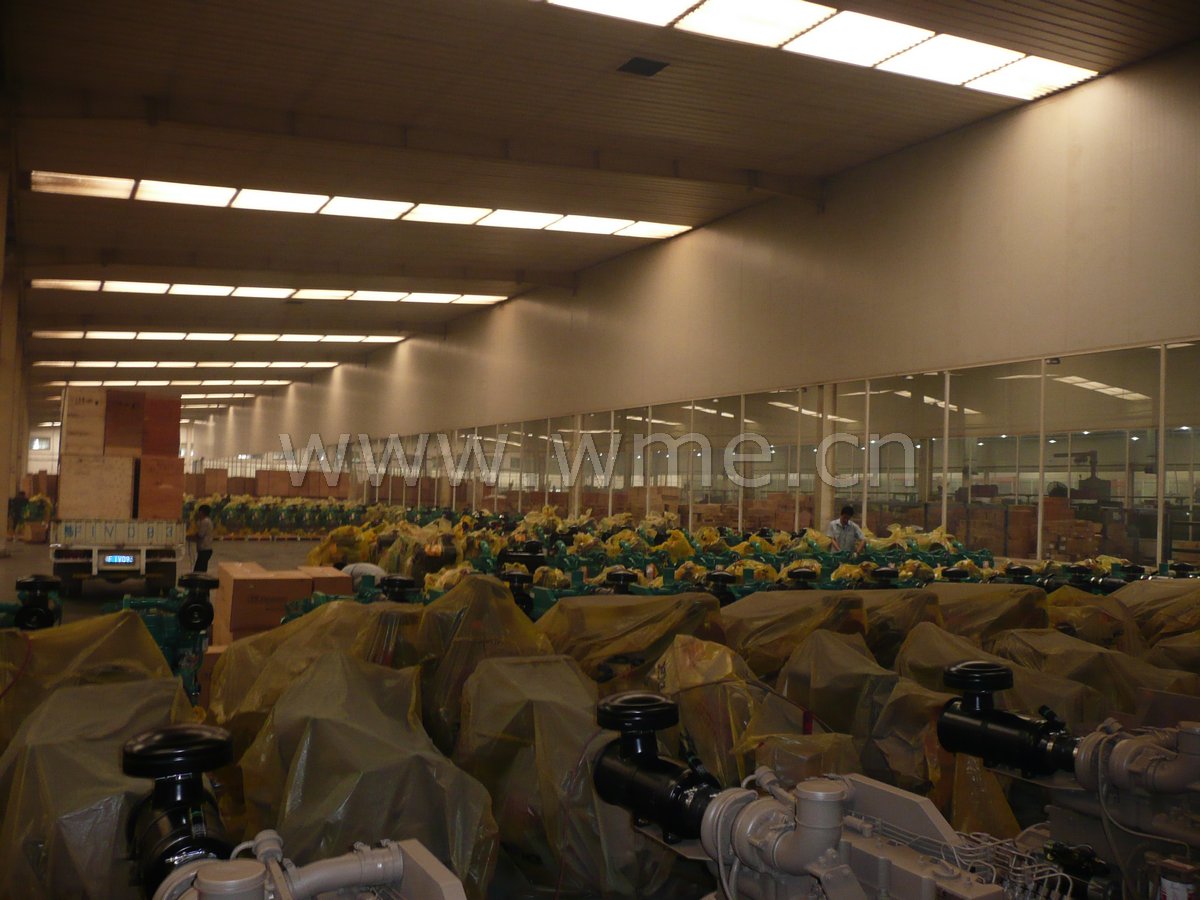

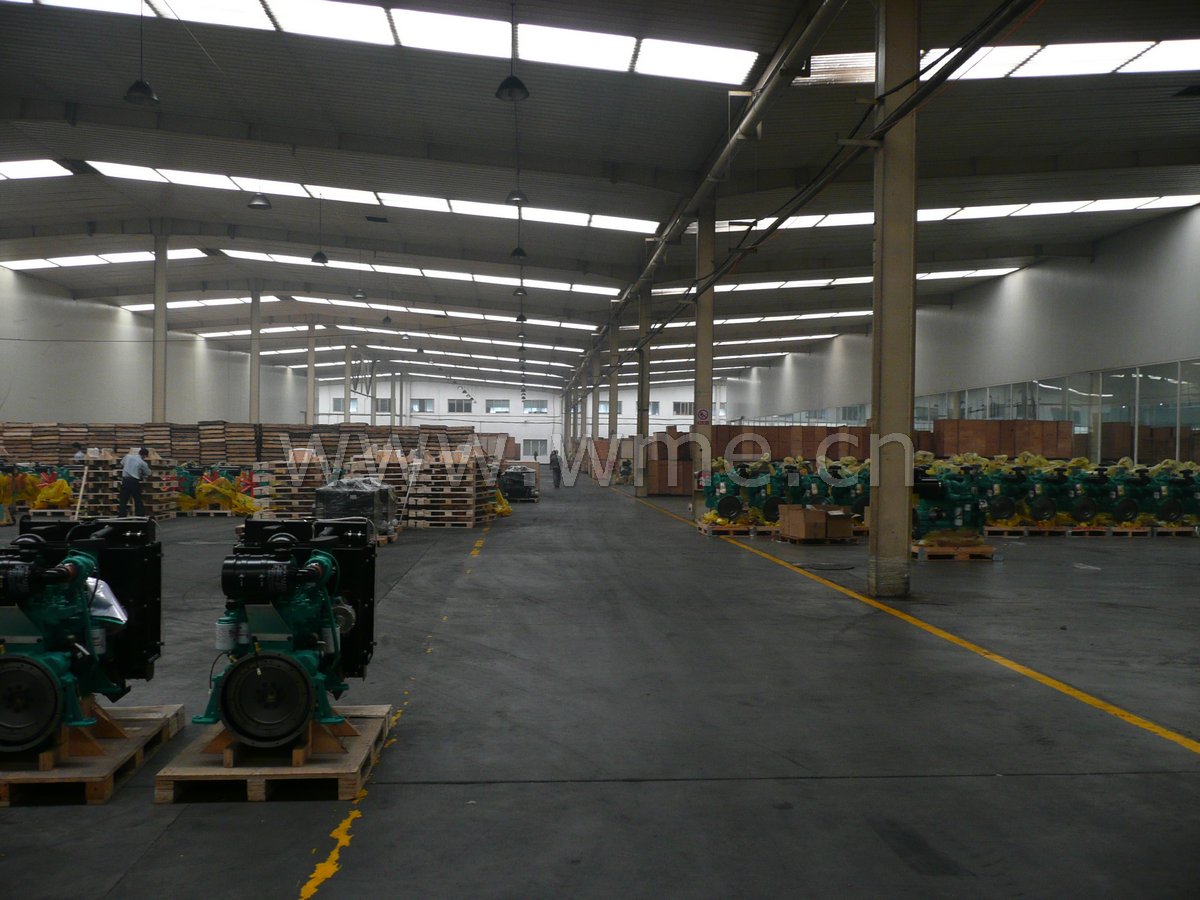

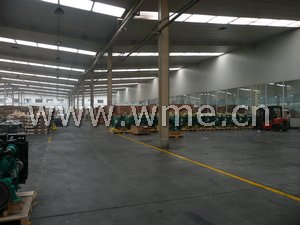

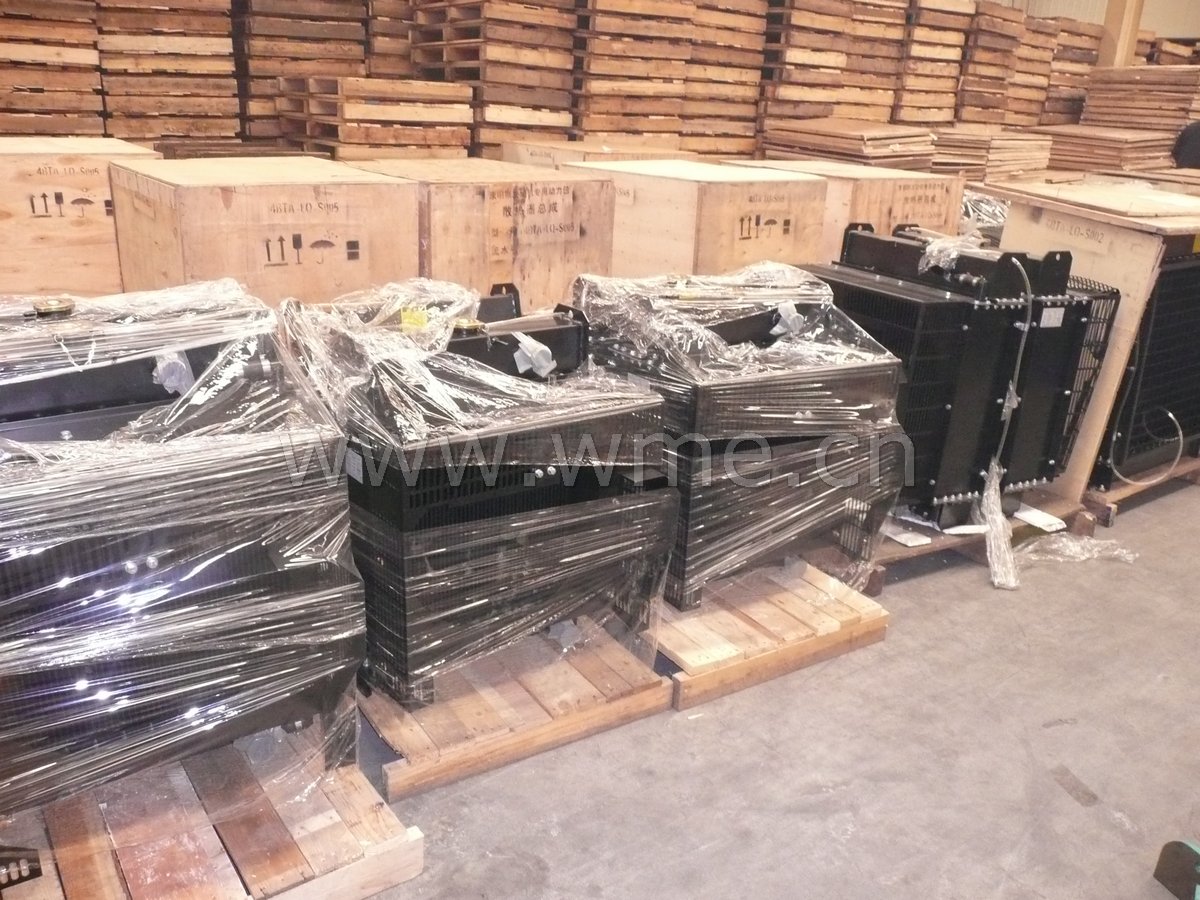

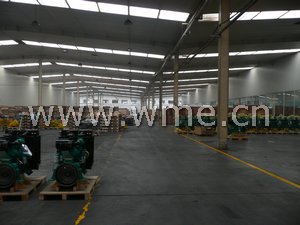

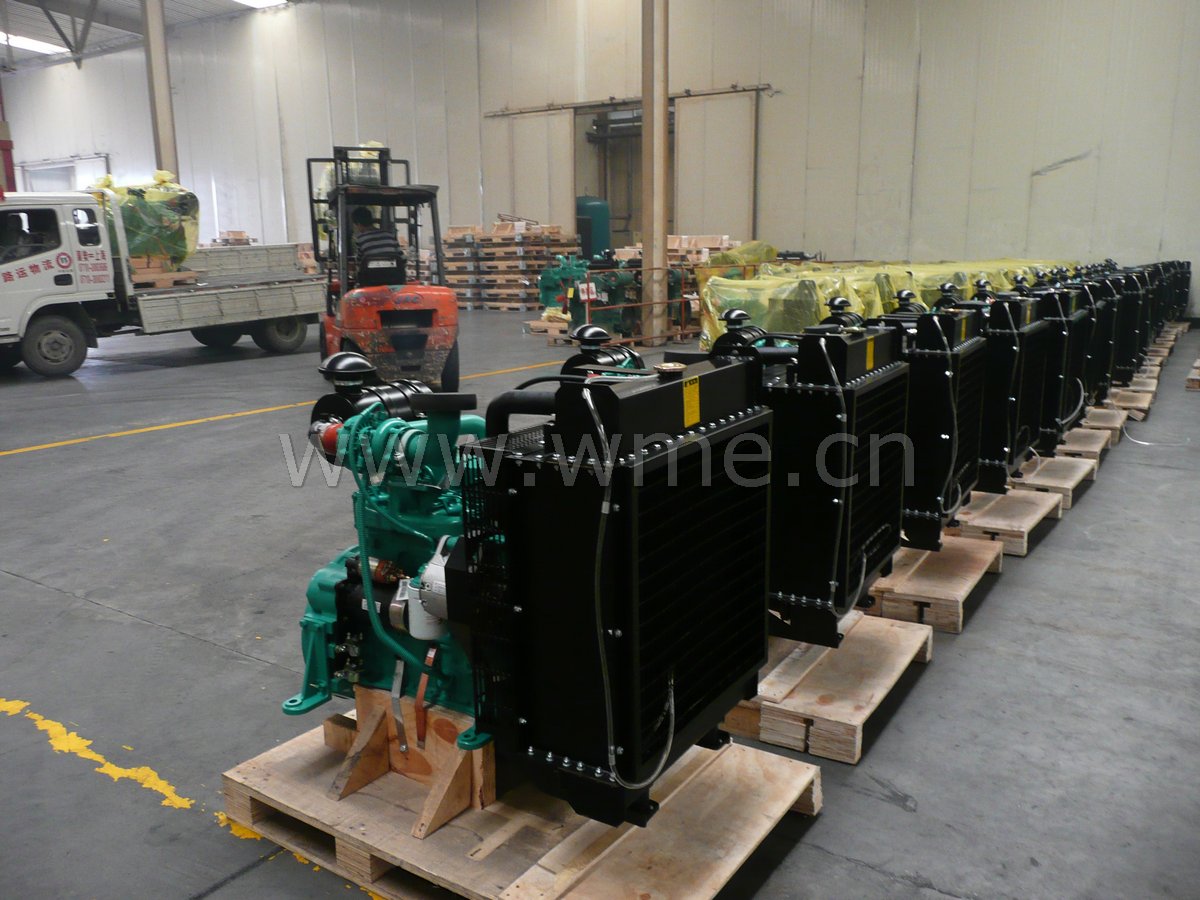

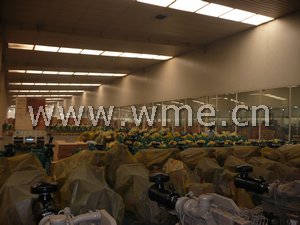

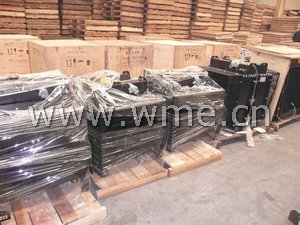

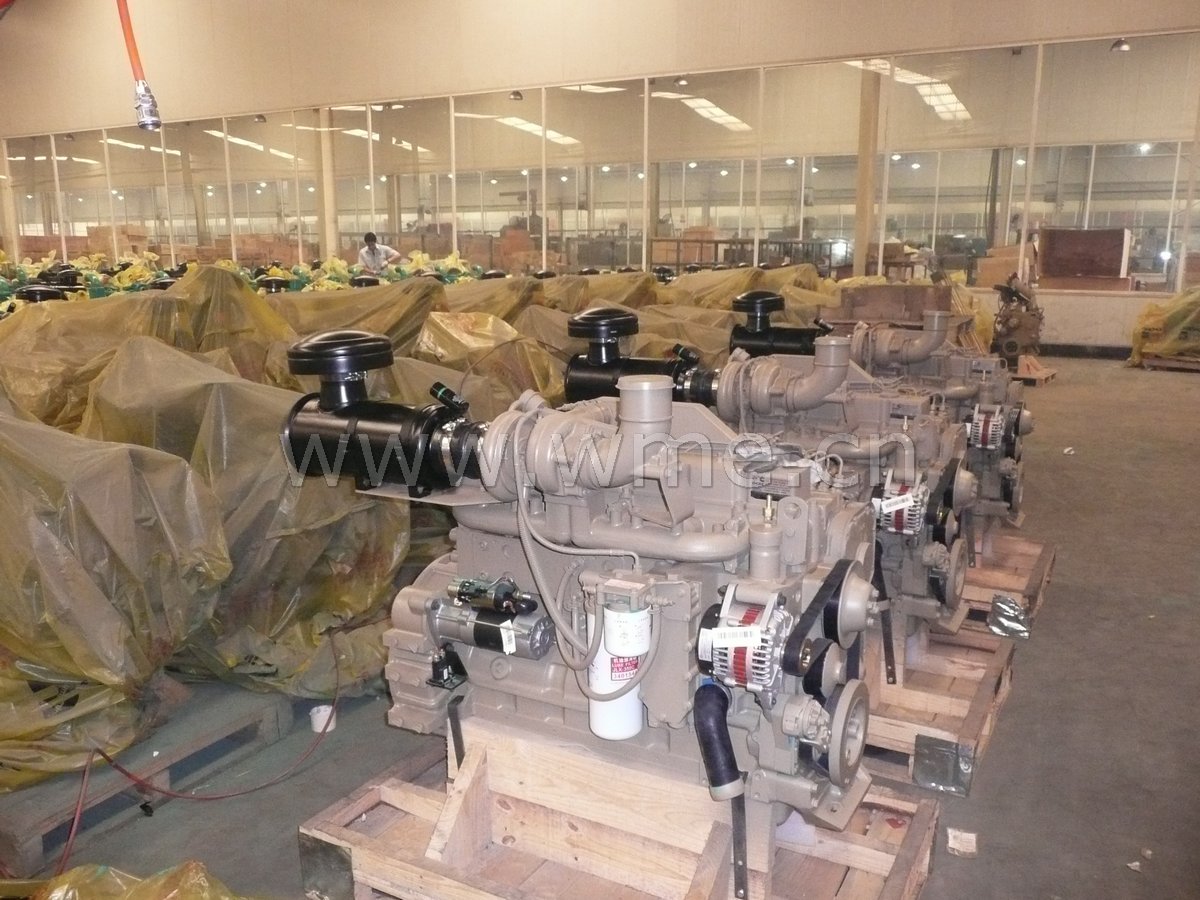

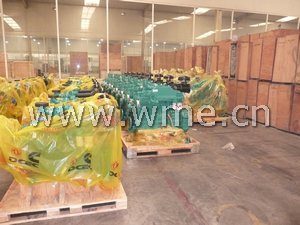

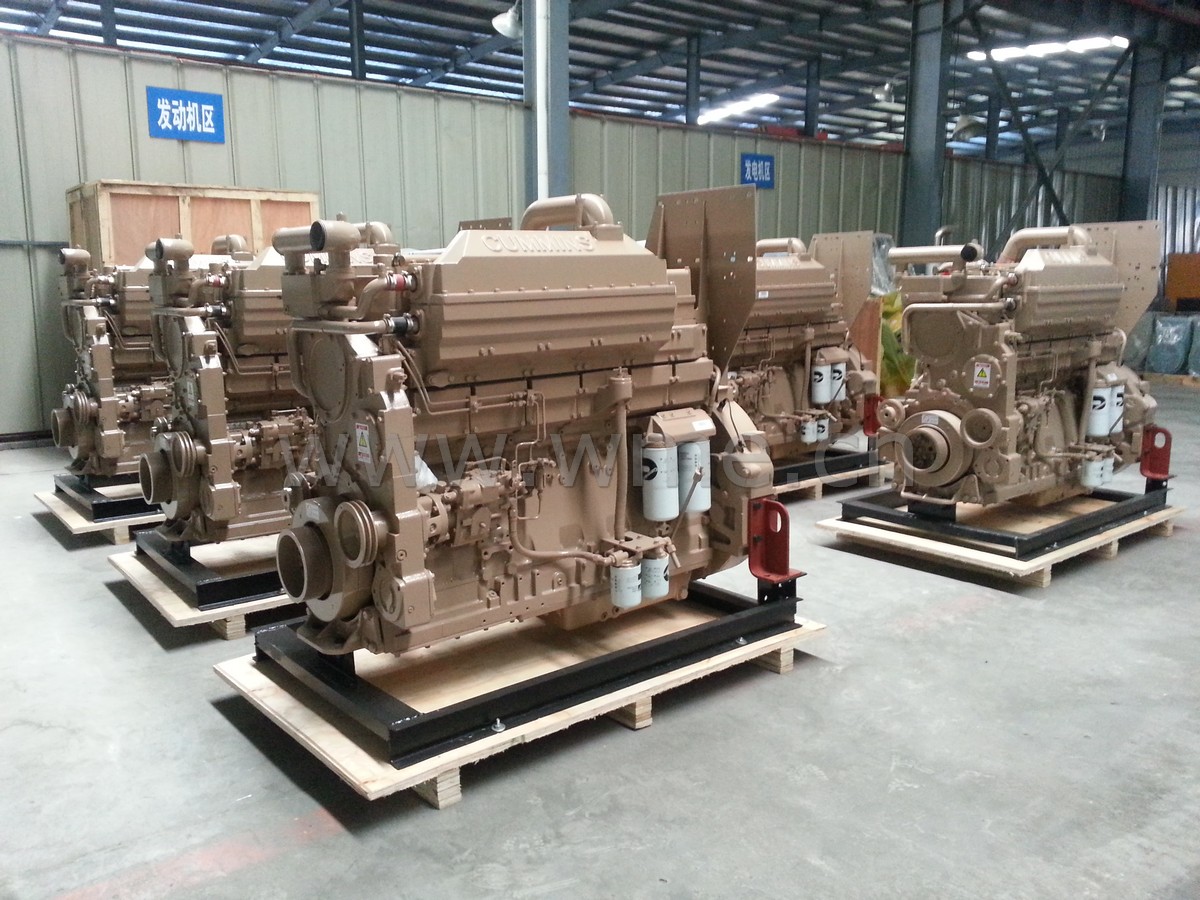

CUMMINS logo		 CUMMINS engine warehouse
CUMMINS engine warehouse





CUMMINS engine warehouse
CUMMINS engine warehouse		 CUMMINS engine warehouse
CUMMINS engine warehouse		 CUMMINS engine warehouse
CUMMINS engine warehouse





CUMMINS engine warehouse
CUMMINS engine warehouse		 CUMMINS engine warehouse
CUMMINS engine warehouse		 CUMMINS engine warehouse
CUMMINS engine warehouse





CUMMINS engine warehouse

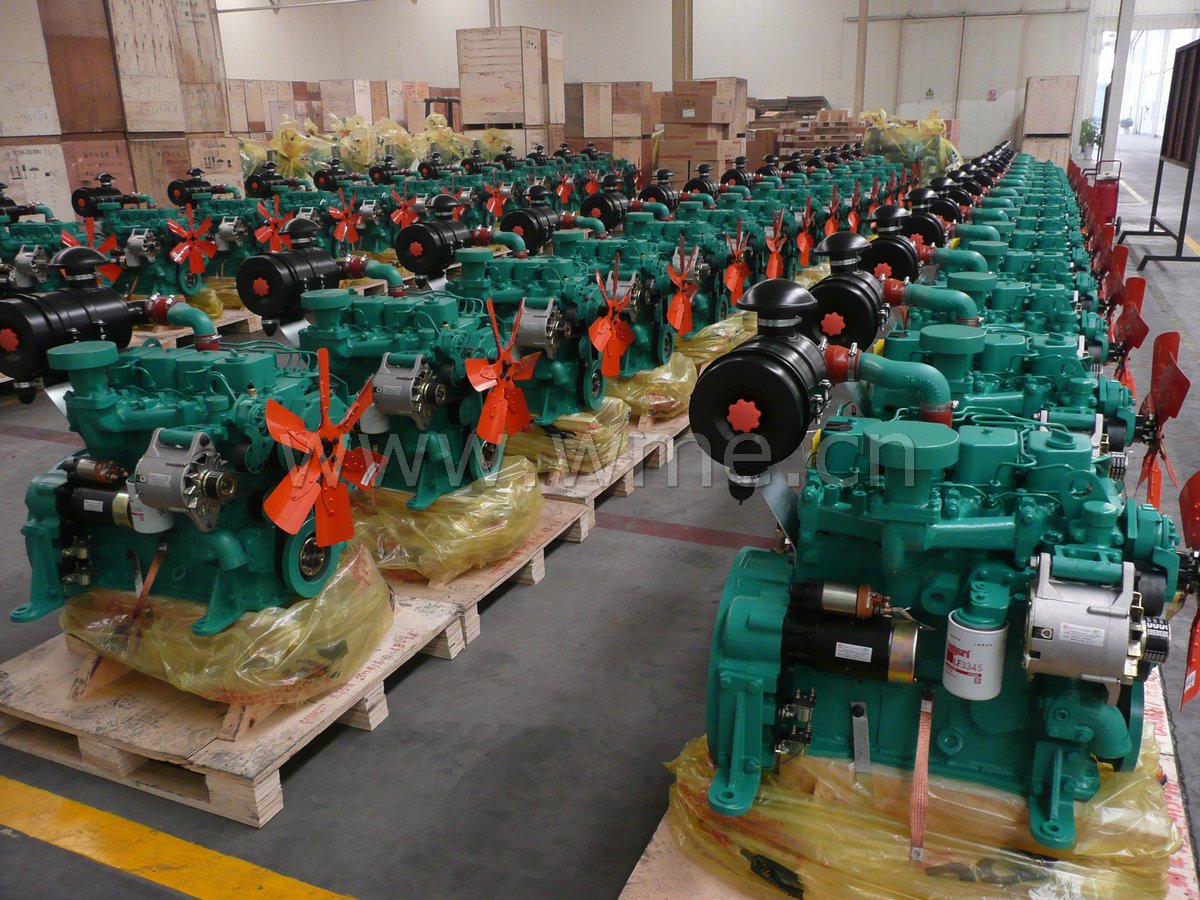

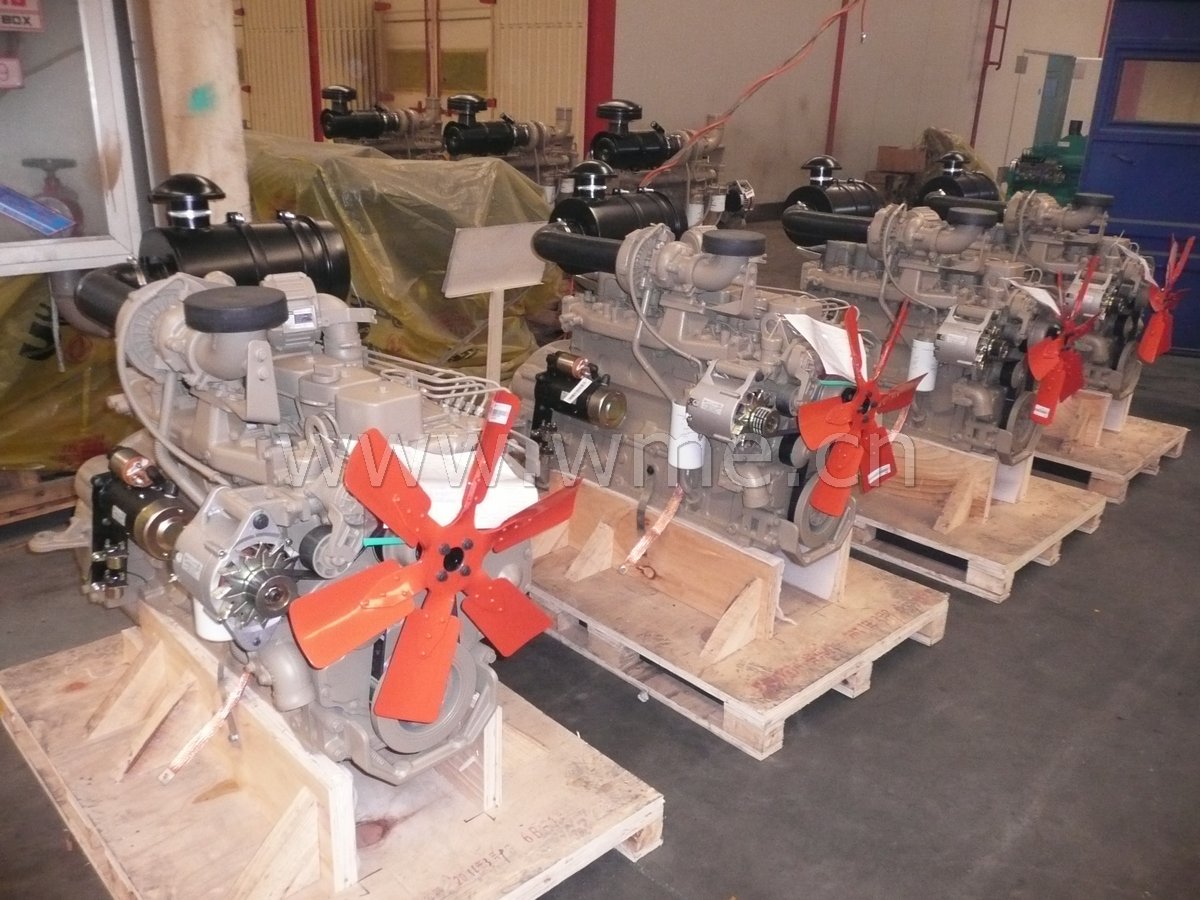

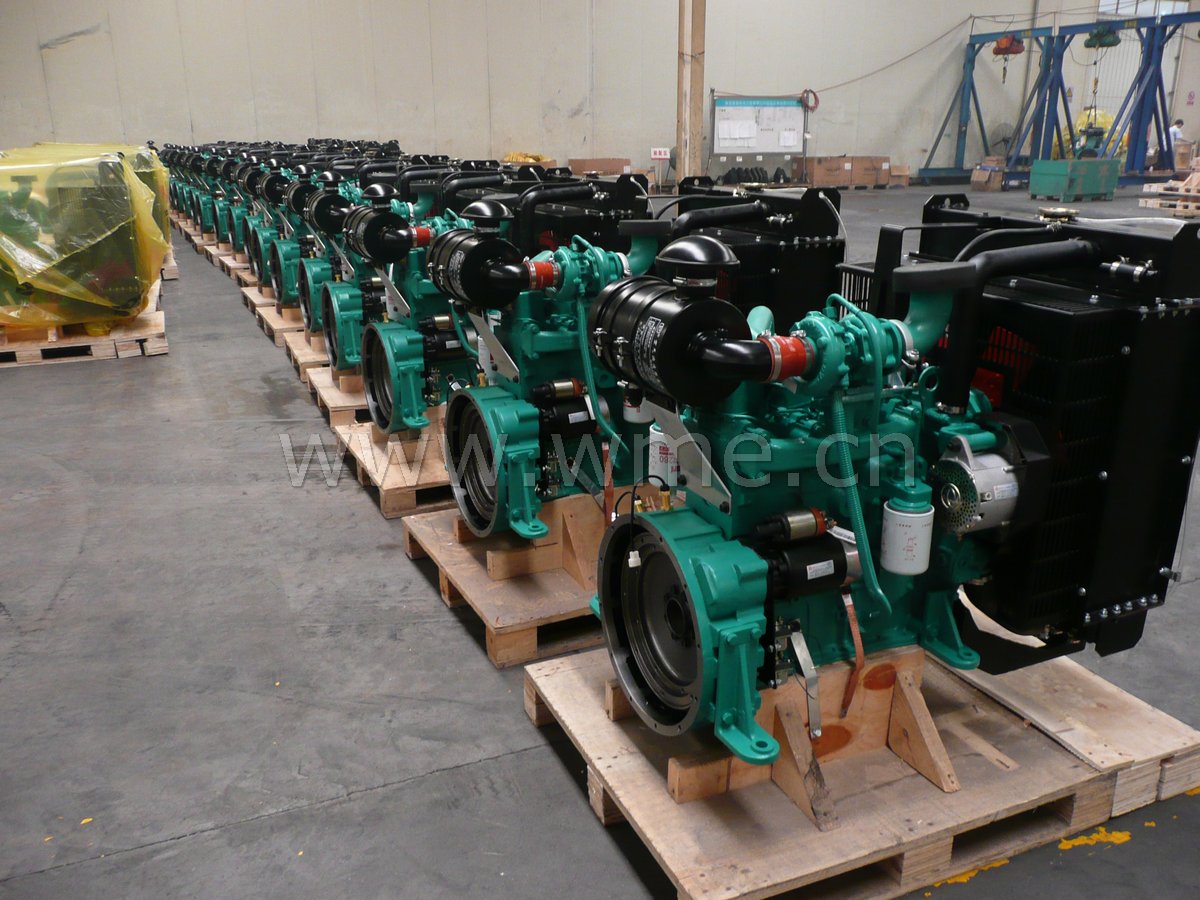

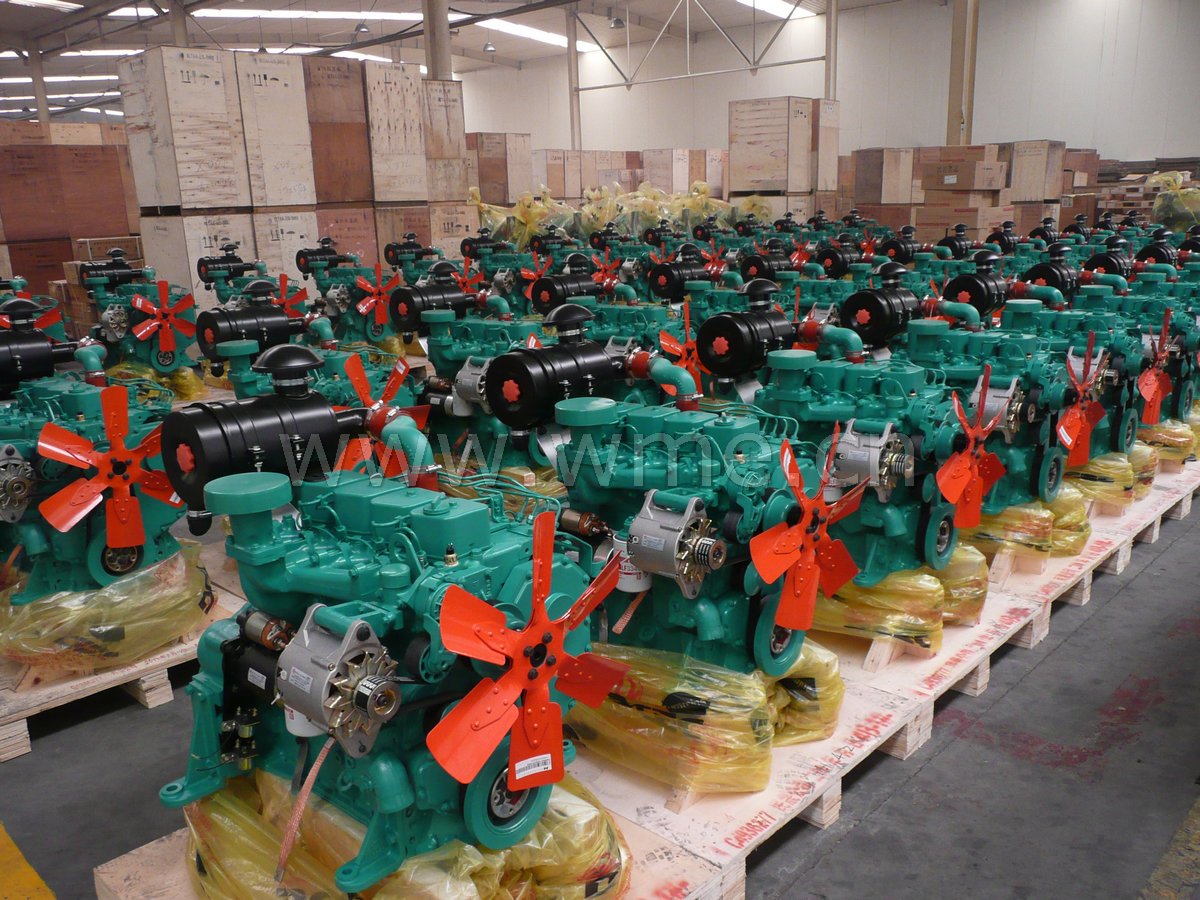

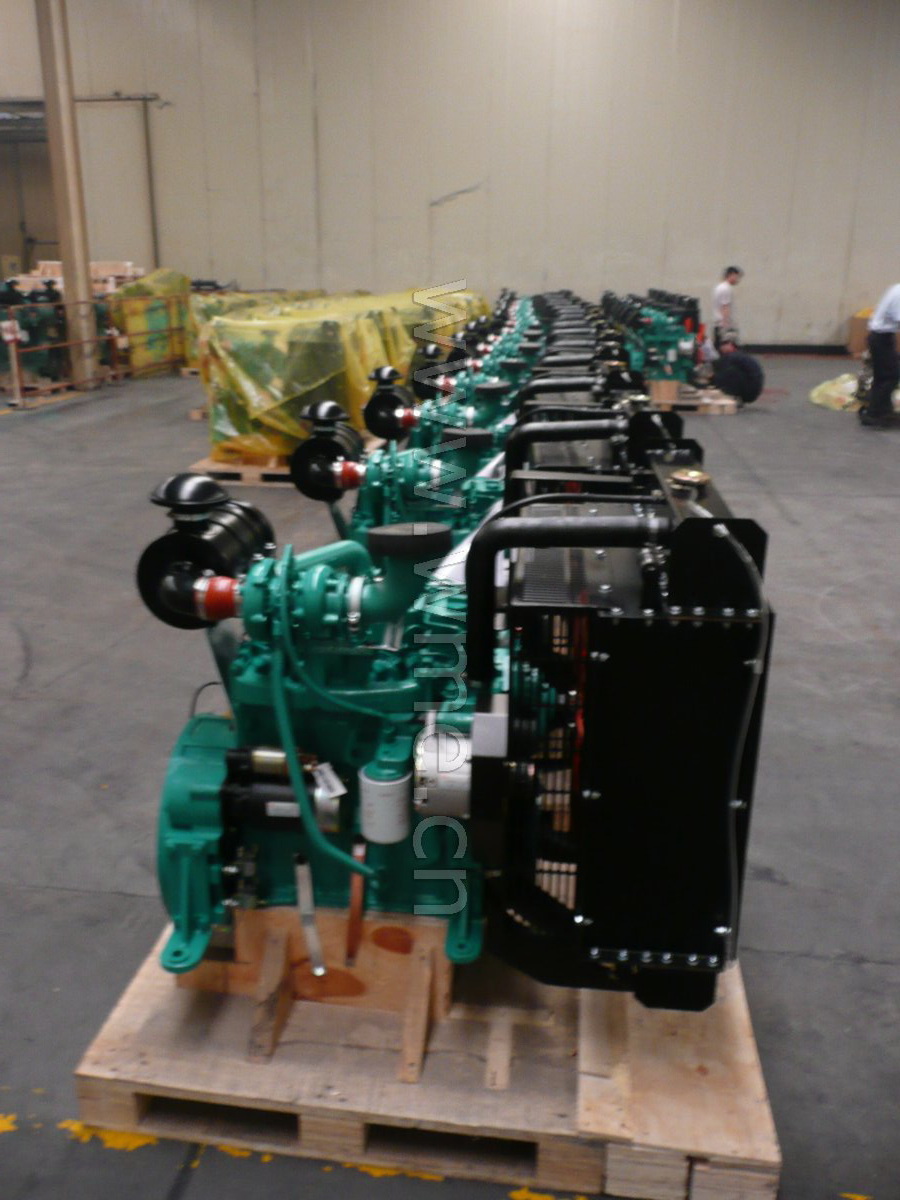

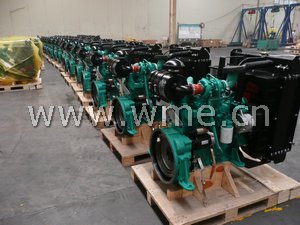

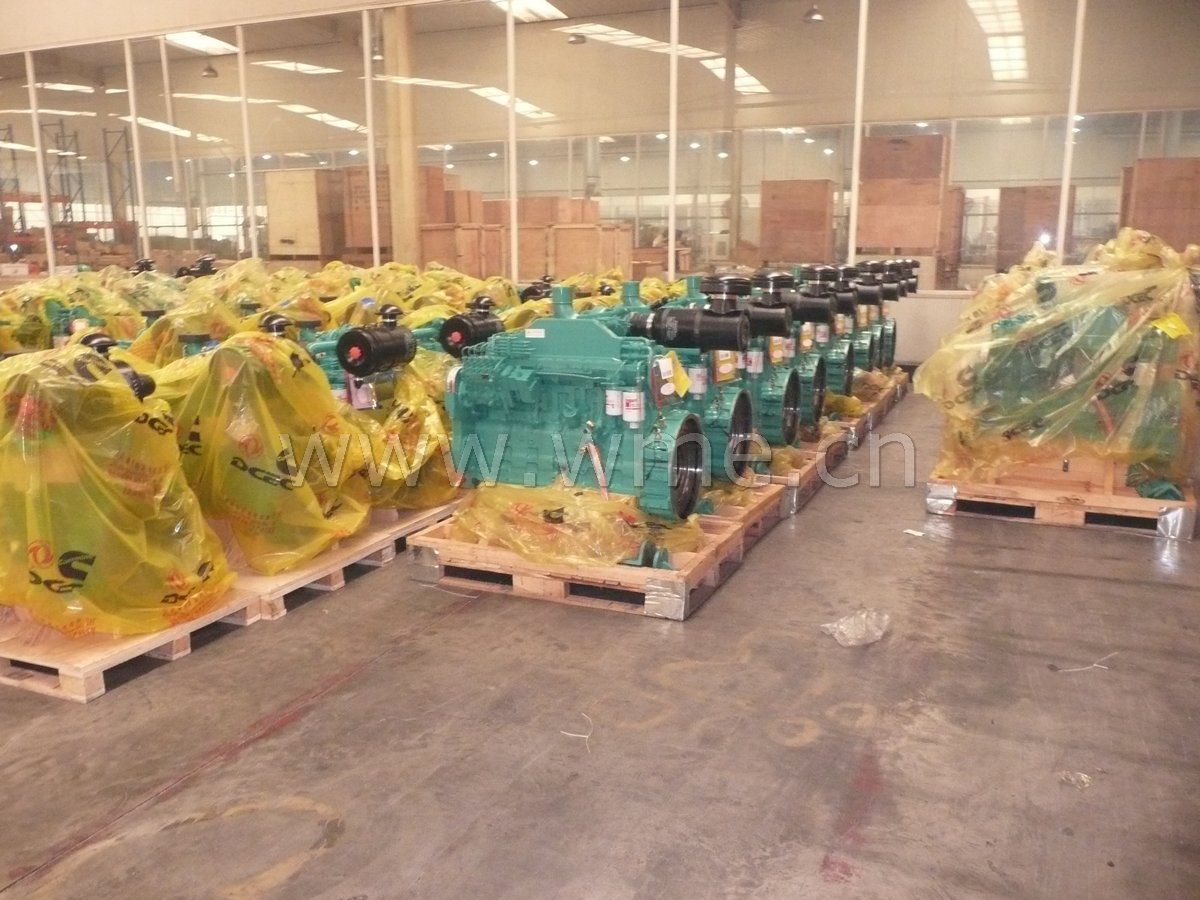

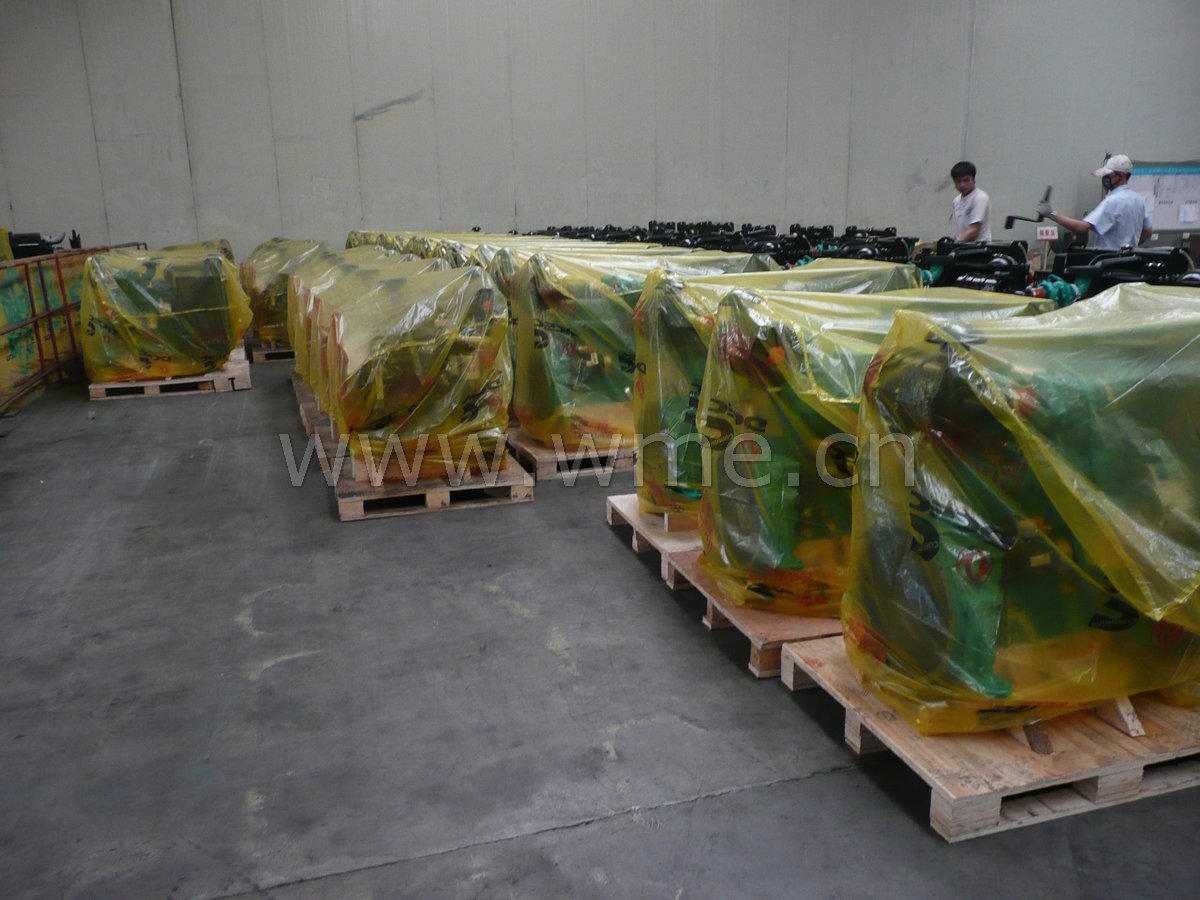

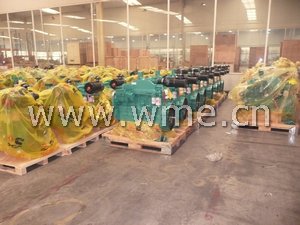

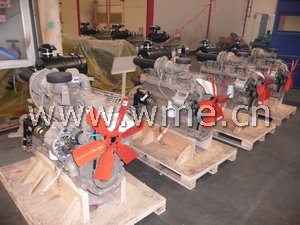

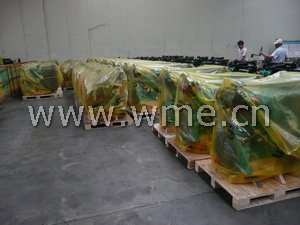

CUMMINS engine warehouse		 CUMMINS engine inside the carton
CUMMINS engine inside the carton		 CUMMINS engine inside the carton
CUMMINS engine inside the carton





CUMMINS engine inside the carton
CUMMINS engine inside the carton		 CUMMINS engine inside the carton
CUMMINS engine inside the carton		 CUMMINS engine inside the carton
CUMMINS engine inside the carton





CUMMINS engine inside the carton
CUMMINS engine inside the carton		 CUMMINS engine inside the carton

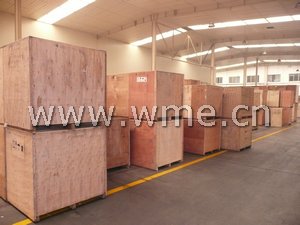

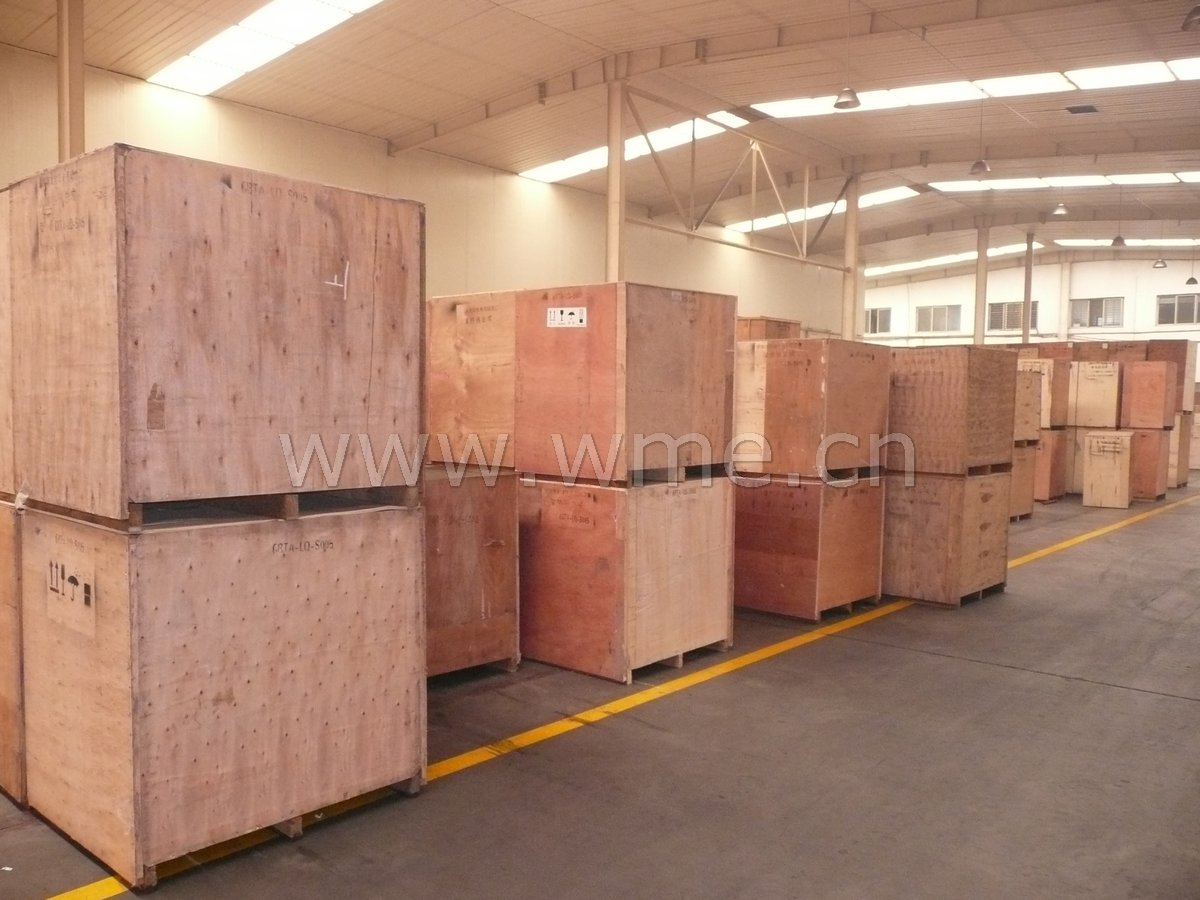

CUMMINS engine inside the carton		 CUMMINS engine carton
CUMMINS engine carton

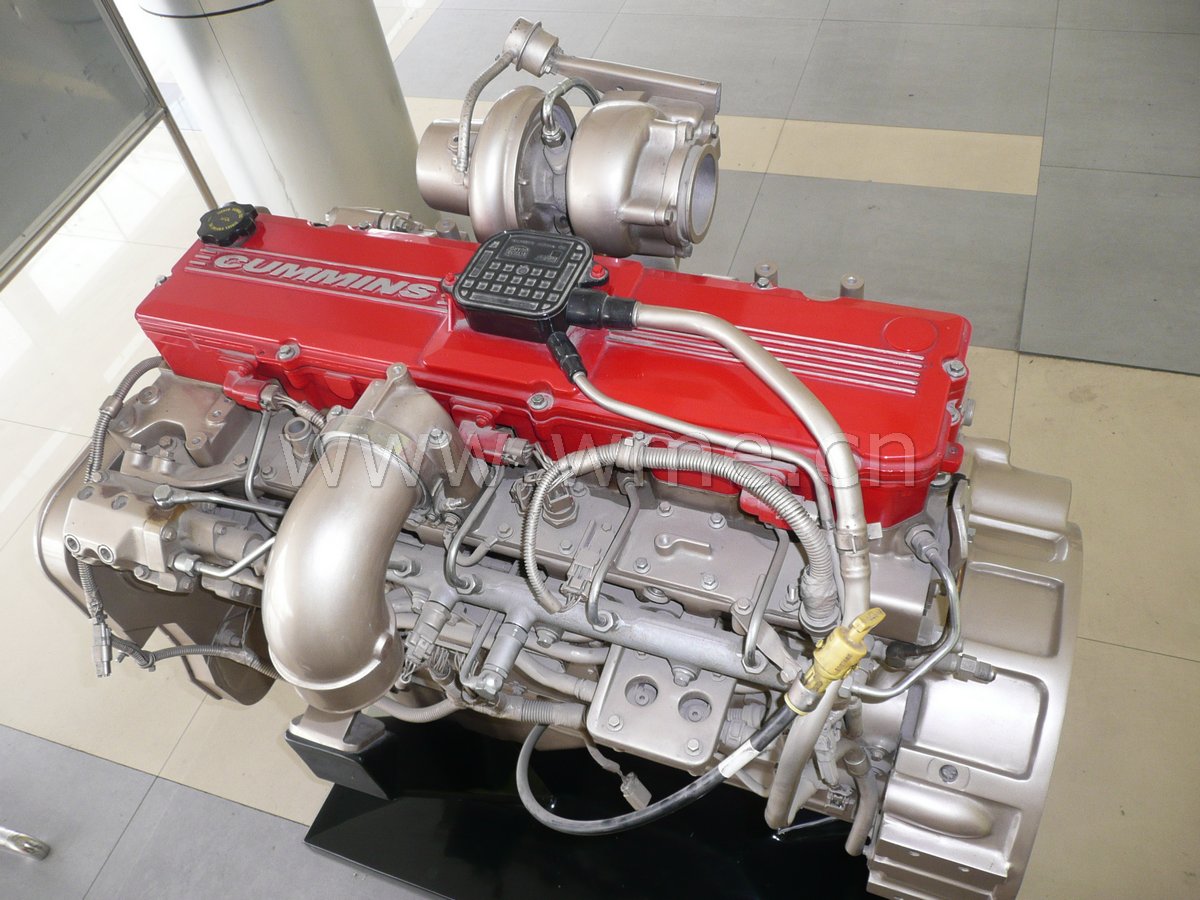

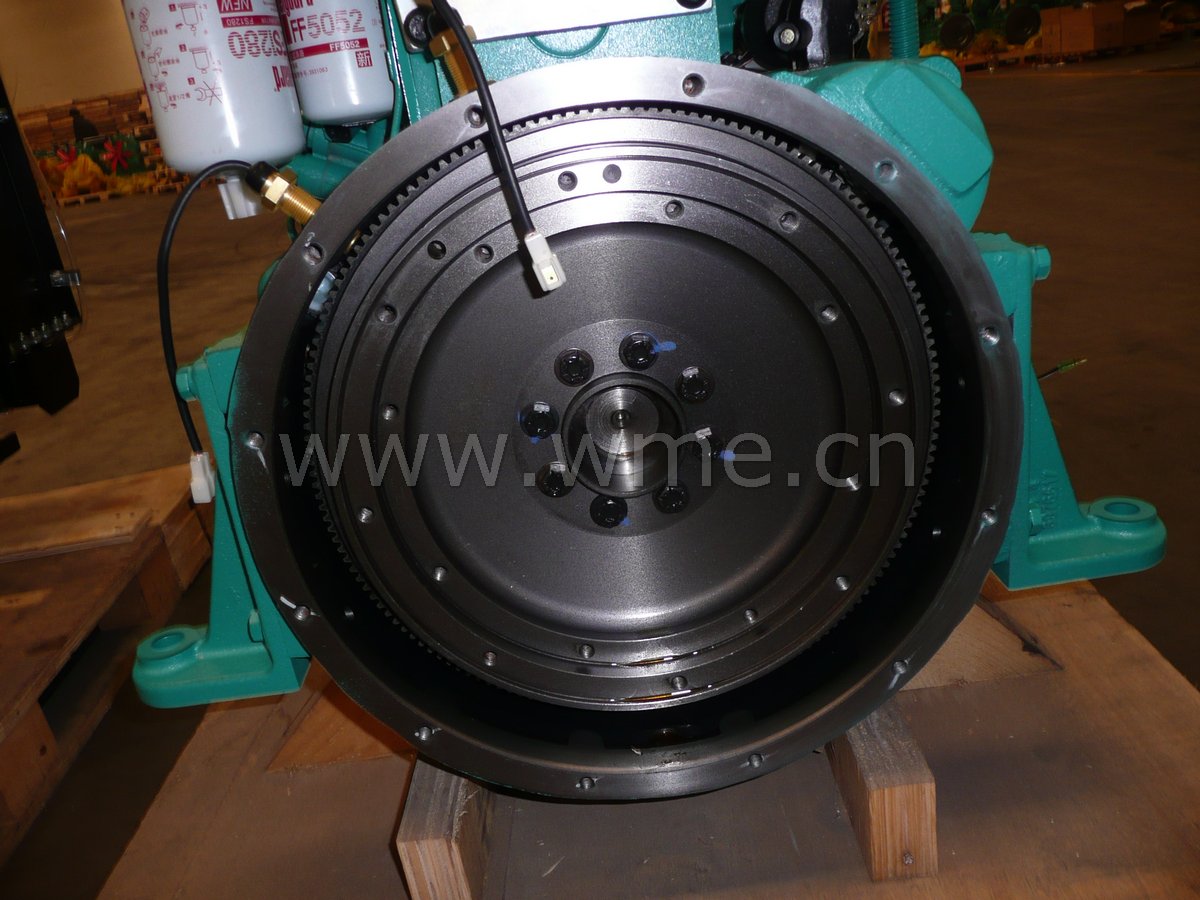

CUMMINS engine
CUMMINS engine		 CUMMINS engine

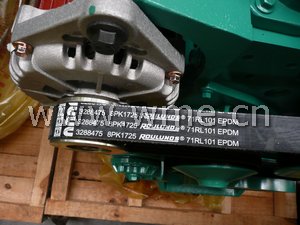

CUMMINS engine		 CUMMINS engine belt
CUMMINS engine belt

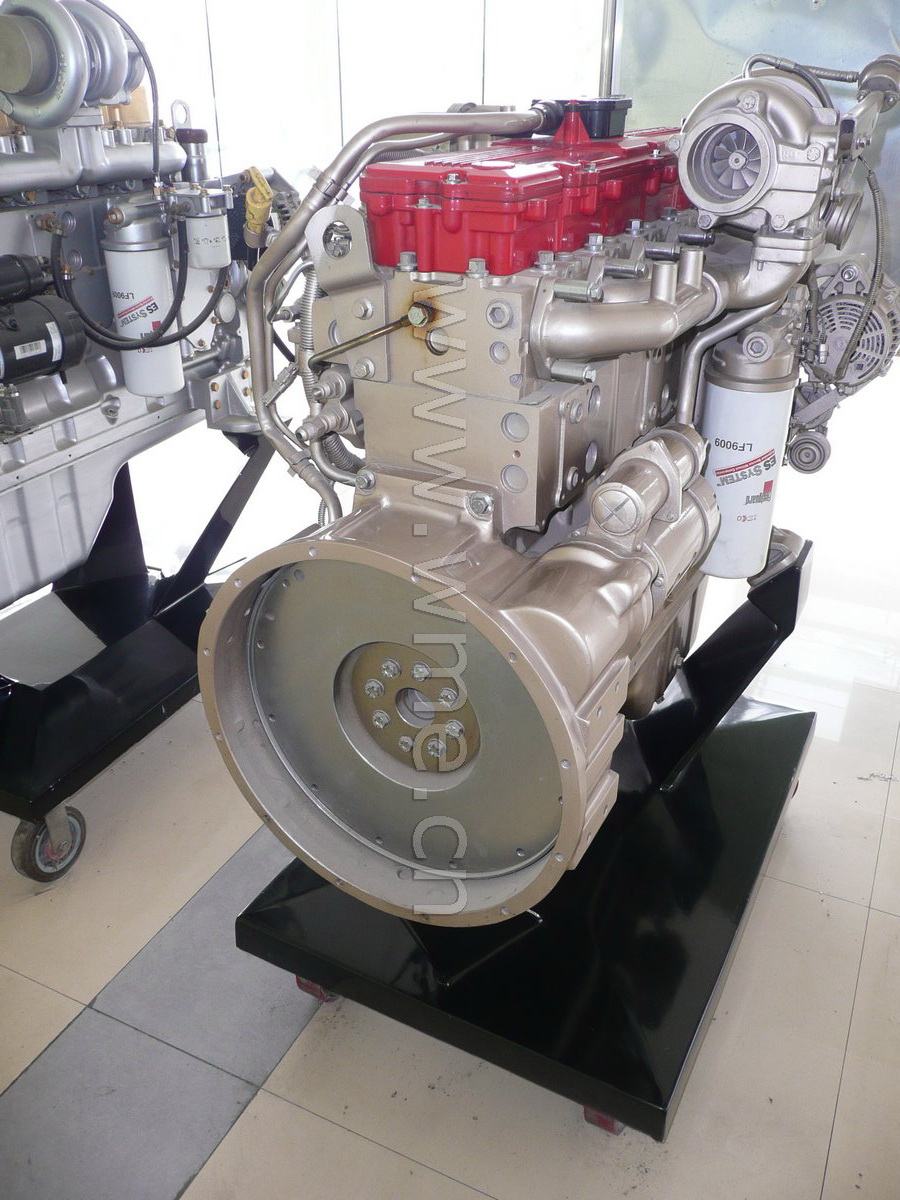

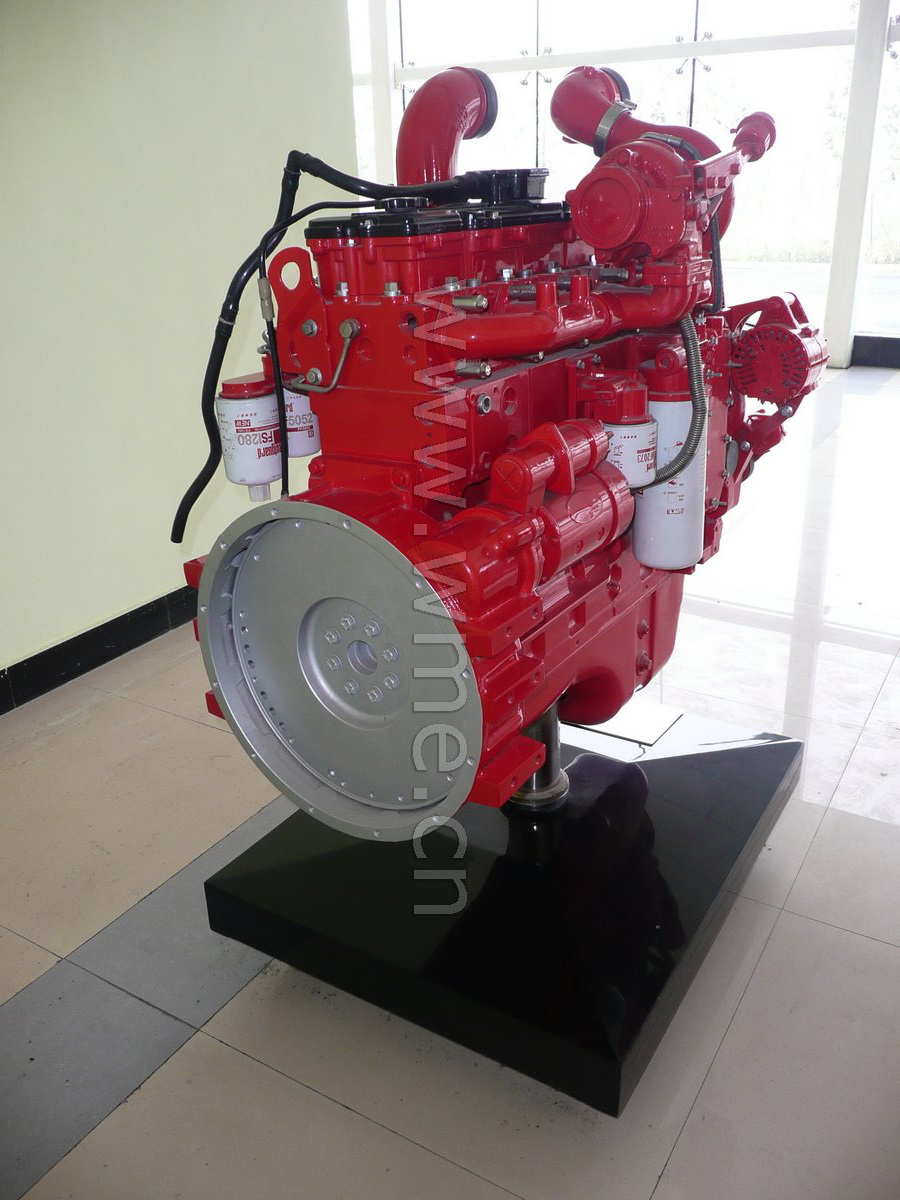

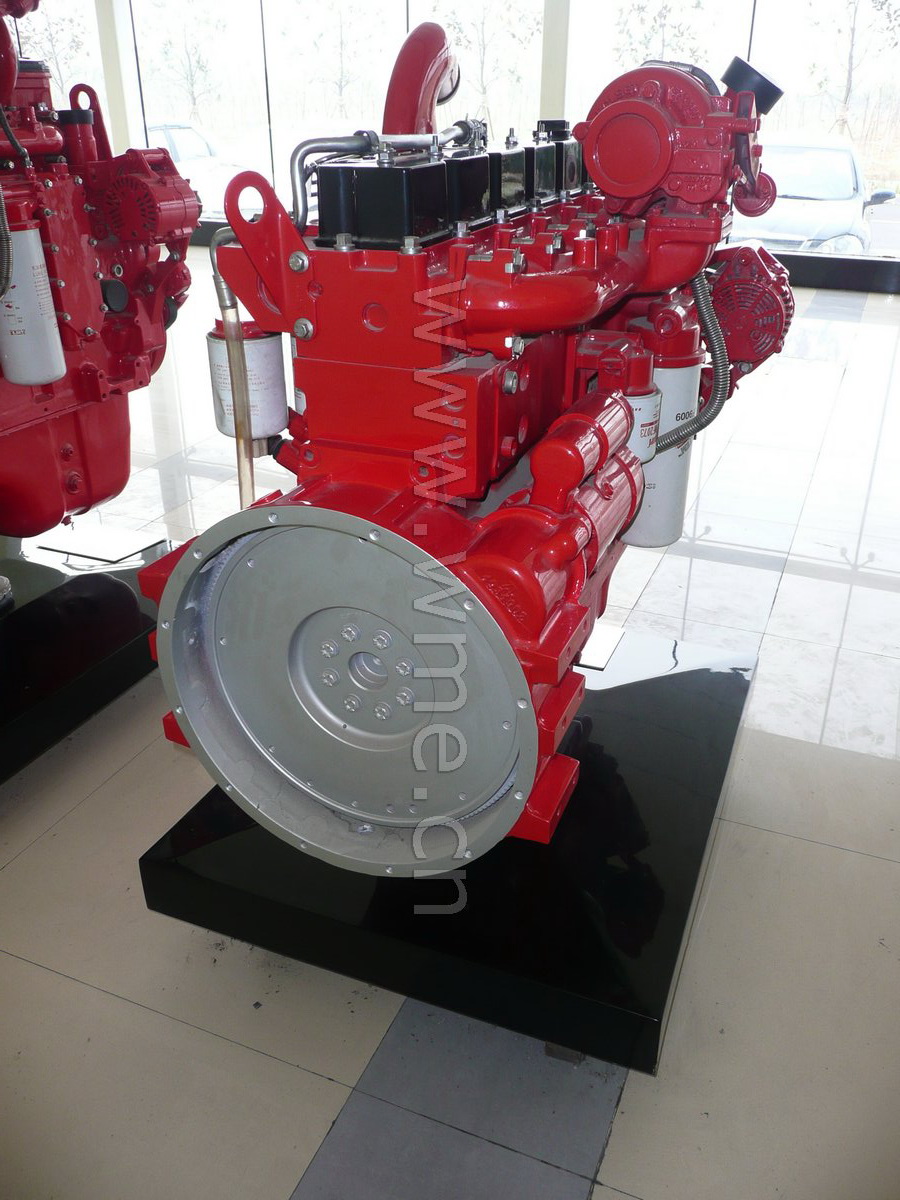

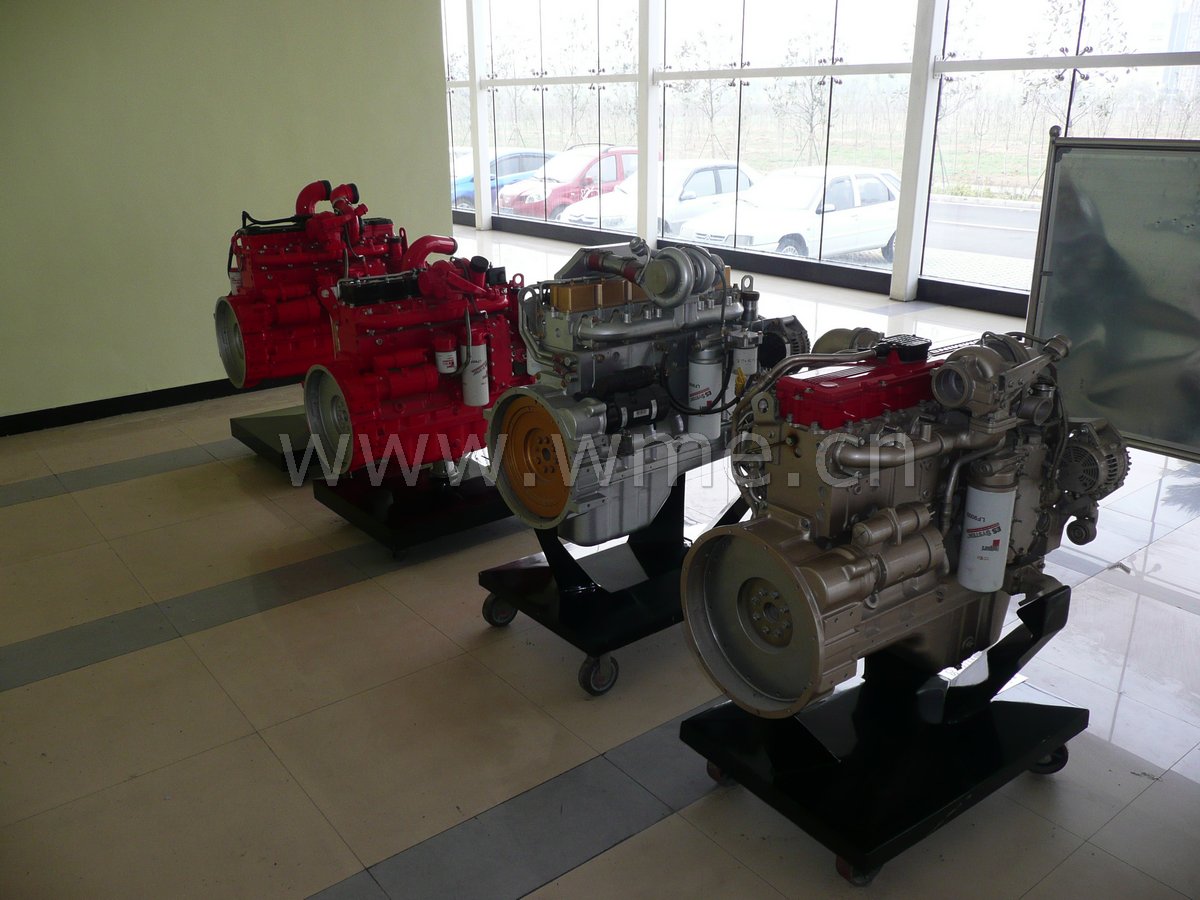

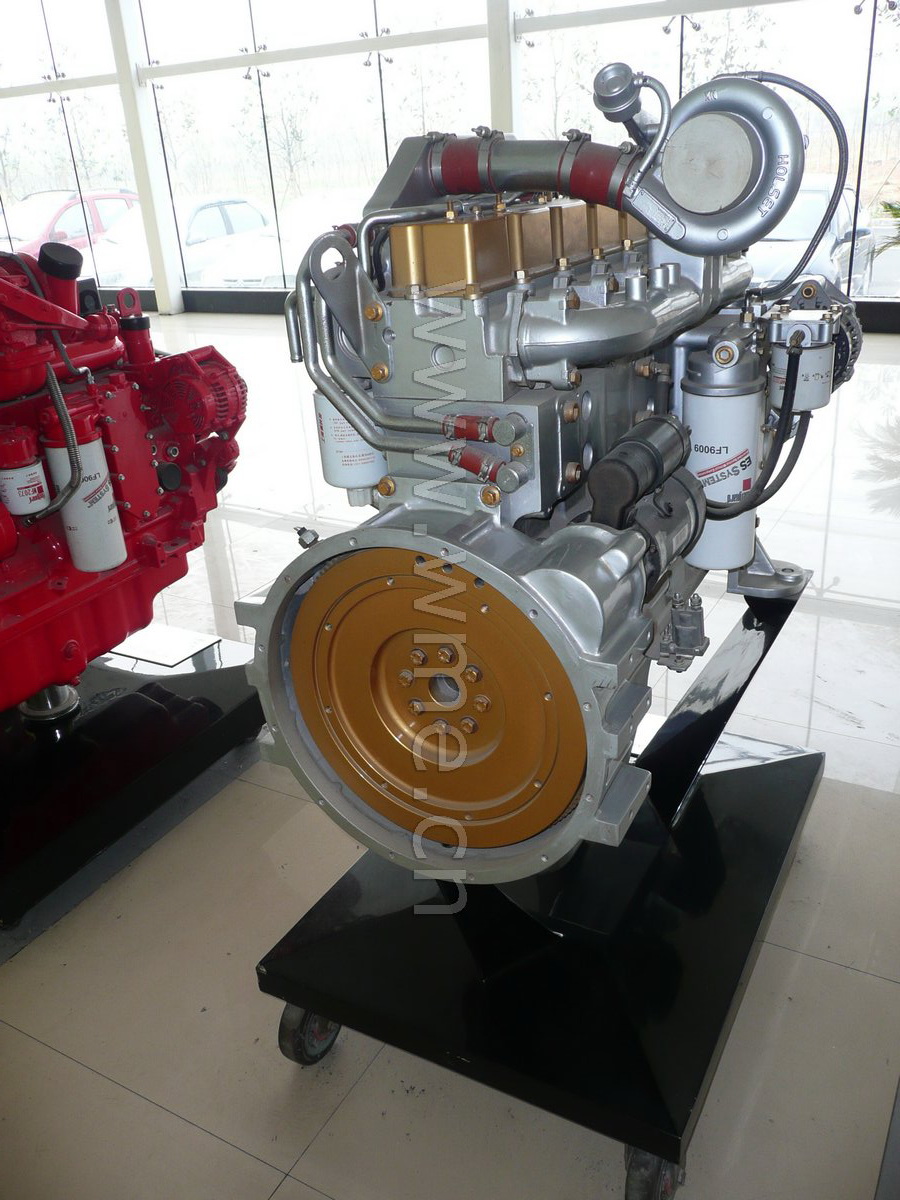

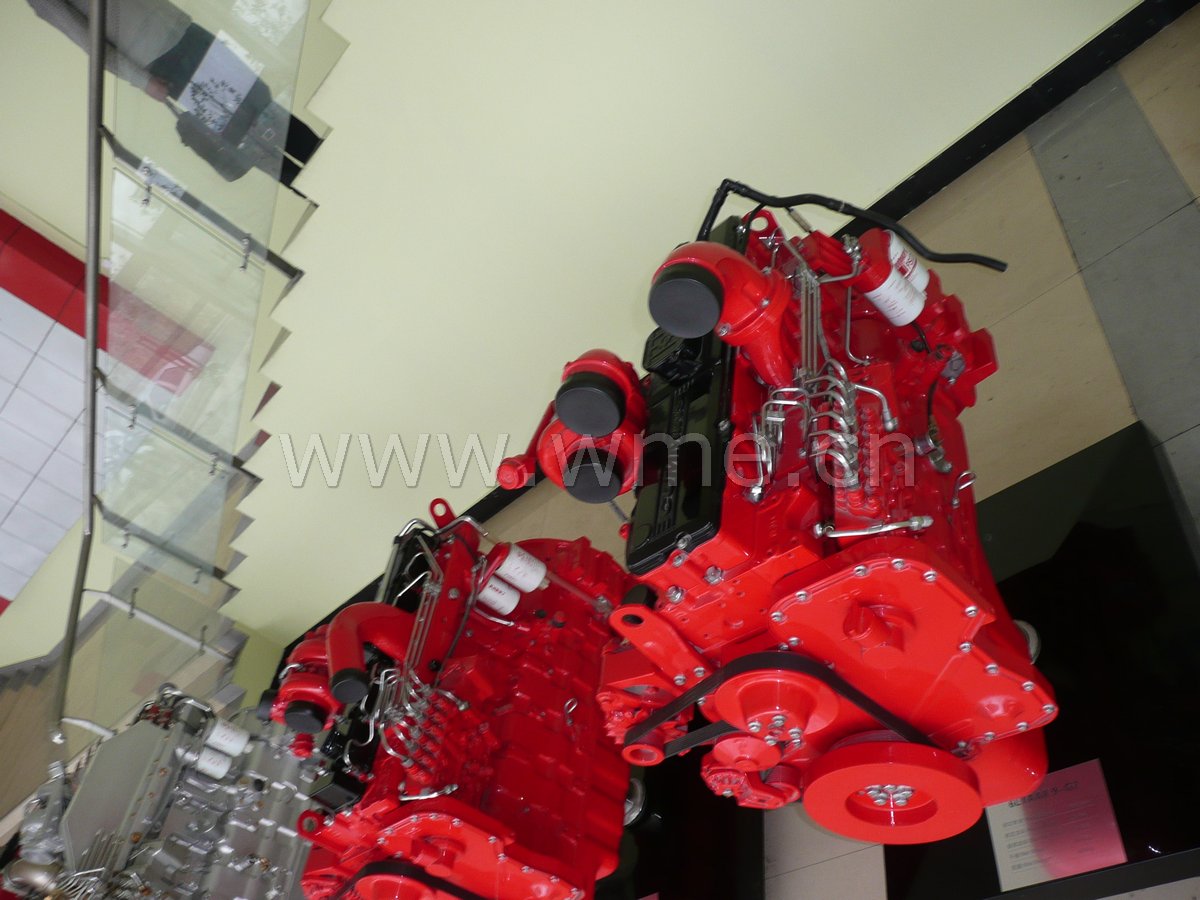

CUMMINS engine show
CUMMINS engine show		 CUMMINS engine show
CUMMINS engine show		 CUMMINS engine show
CUMMINS engine show





CUMMINS engine show
CUMMINS engine show		 CUMMINS engine show
CUMMINS engine show		 CUMMINS engine show
CUMMINS engine show

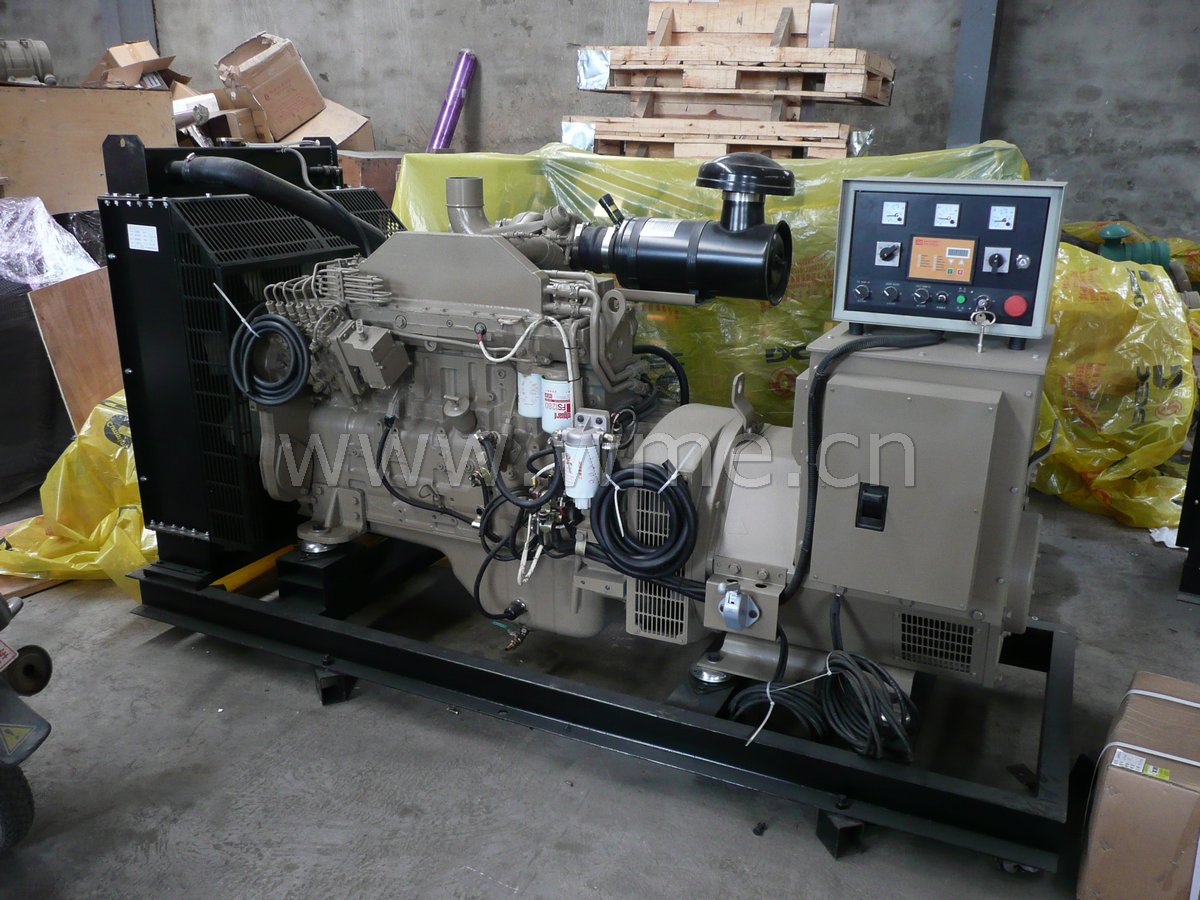

CUMMINS engine generator set

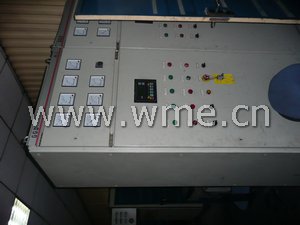

CUMMINS engine generator set		 CUMMINS engine ttest

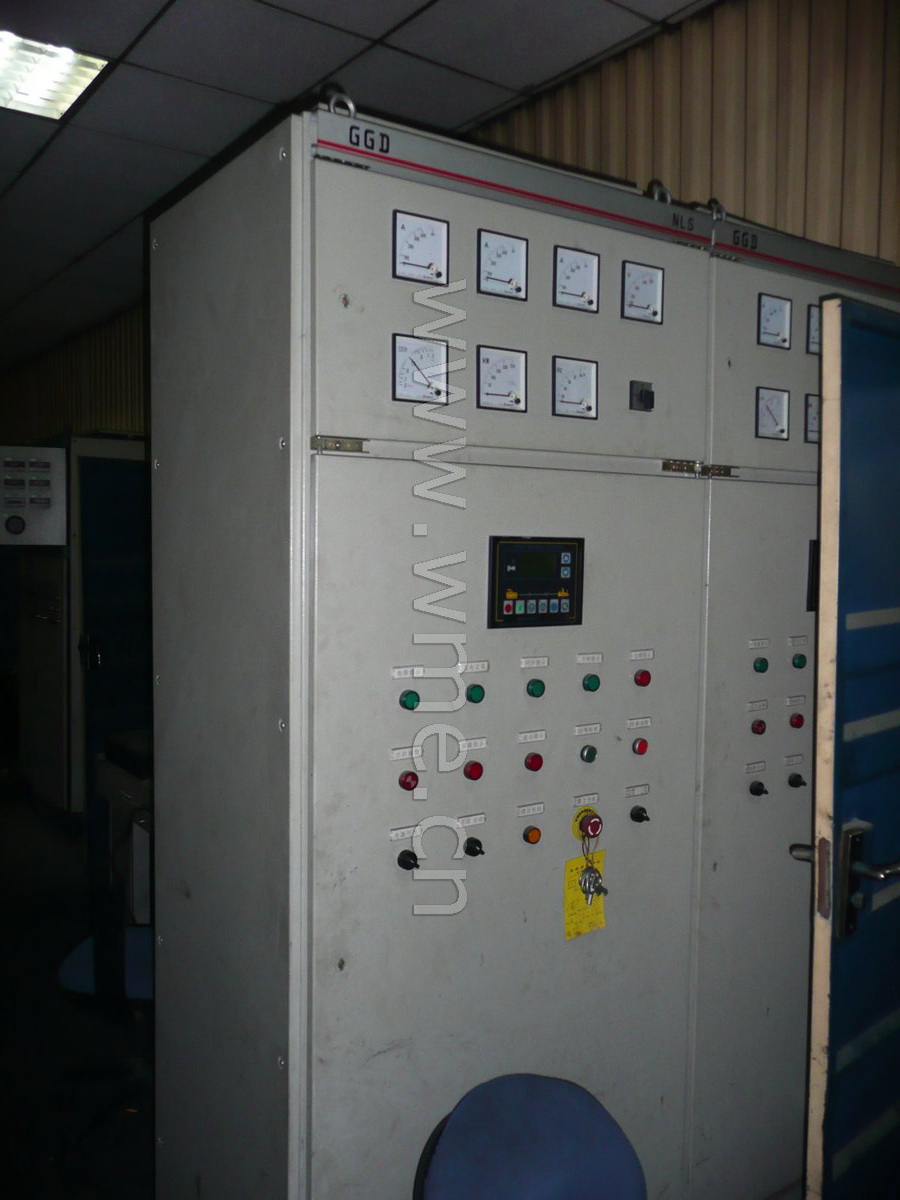

CUMMINS engine test

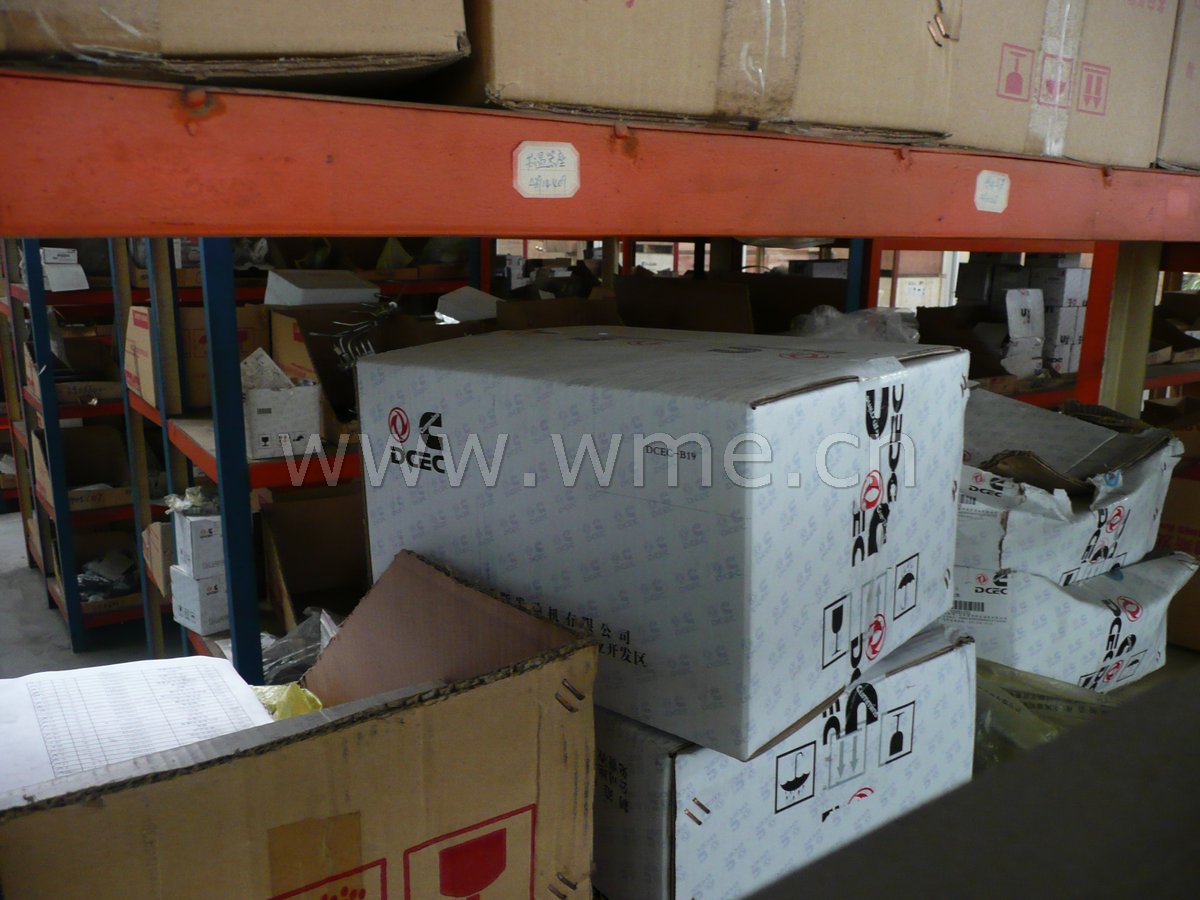

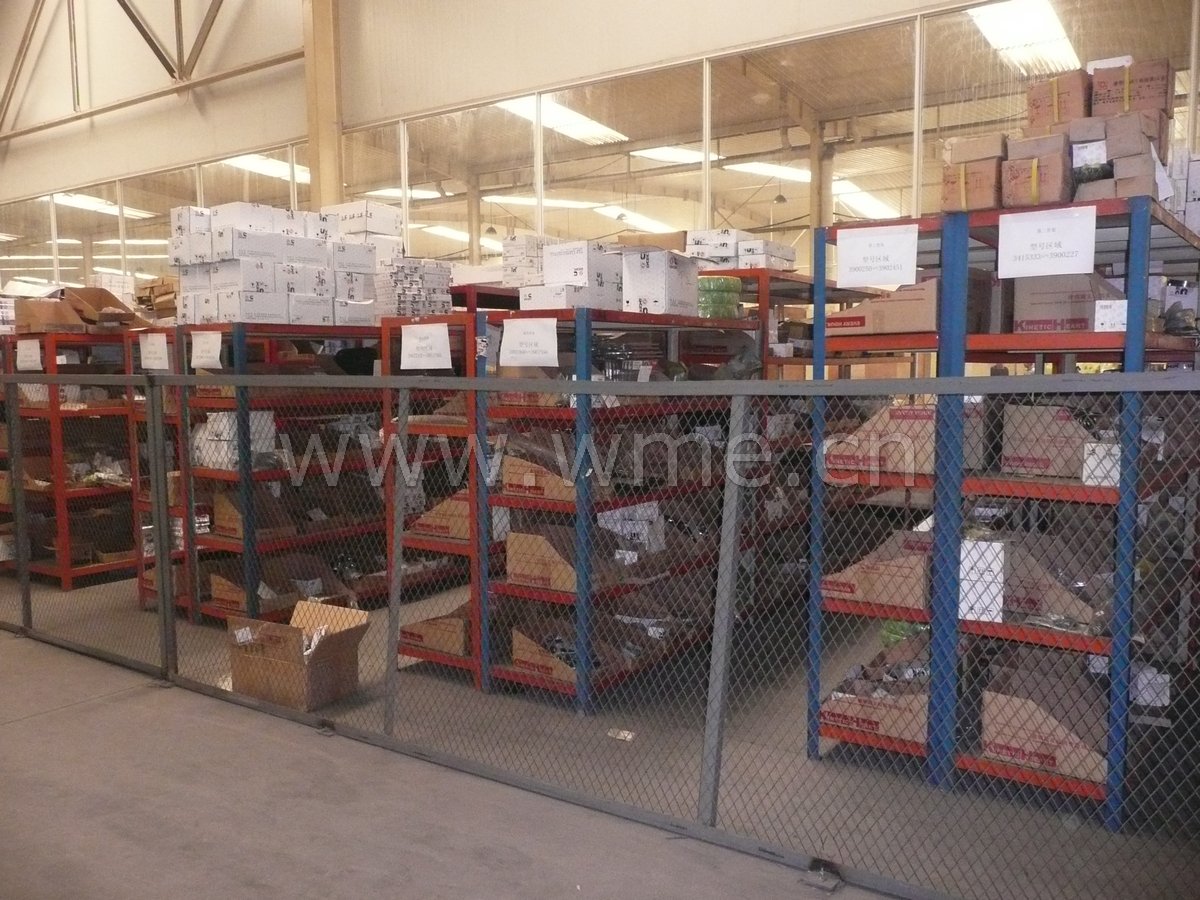

CUMMINS engine parts
CUMMINS engine parts 		CUMMINS engine parts
CUMMINS engine parts





WEICHAI | YUCHAI | SDEC | CHANGCHAI | QUANCHAI | YUNNEI | ZONGSHEN | HND | KOFO | DONGAN

CUMMINS | CAT | JOHN-DEERE | PERKINS | DEUTZ | MTU

KOMATSU | ISUZU | KUBOTA | YANMAR

MITSUBISHI | KAWASAKI | ROBIN | HONDA | YAMAHA

Generator Set | Water Pump Set | Wind Turbine Set

WUHAN MACHINE EQUIPMENT CO LTD © 2023
