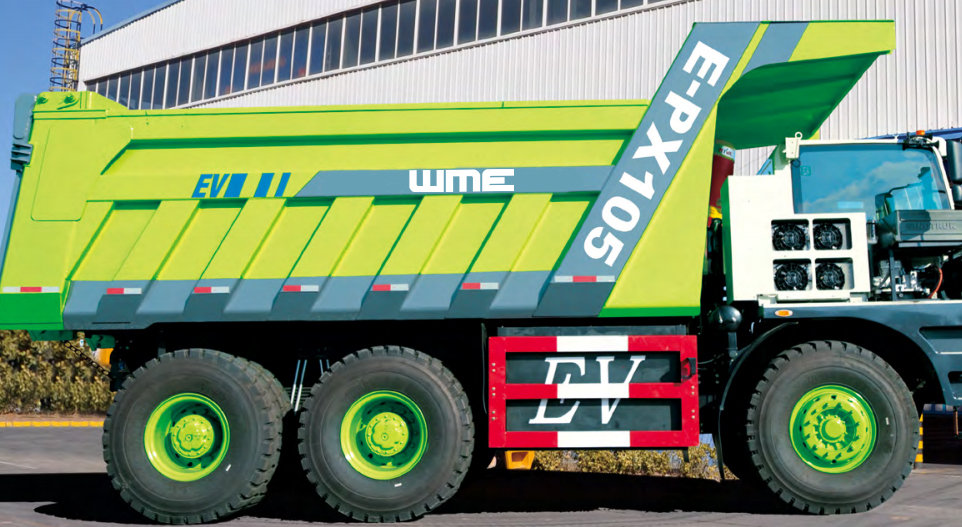

Battery Swapping PX105

Battery Swapping PX105 - China PX mining dump truck

Model	Battery Swapping PX105
Overall dimension(mm)	9500×3790×4210
Wheel base(mm)	4000+1690
Inner dimension of box(mm)	6400×3400×1800
Curb Weigh(kg)	36000
Rated load(kg)	70000
Rated total weight(kg)	106000
Max.Speed（km/h）	40
Steering System	Full hydraulic
Powertrain	Langgao dual motor/7 gears transmission
Electronic steering system	EHPS
Axle	25000+40000+40000
Front/rear suspension	Front pneumatic hydraulic suspension, rear balance suspension
Battery	280—509 LD Tiany
Min turning radius(m)	≤13
Max gradeability	30%
Tire	16.00R25

PX105

PX95

PX90

PX65

PX105E

PX95E

PX90E

PX105HD

Battery-Swapping PX105

Unmanned PX105

PX120

PX48

PX-KD25

PX-KD15

PX136MT

All specifications are approximate and subject to change without notice.
