Introduction to GIA Drilling Tools

Introduction to GIA Drilling Tools

It should be at least 45.5 mm. For a new 140.0 mm drill bit, the size can vary by 0.5 - 1.5 mm (depending on the size of the drill bit and the alloy). This means, for example, a range from 140 mm to 141.5 mm. This is because the alloy wears out rapidly initially. The key consideration is that the diameter of a new drill bit for a borehole larger than 45.0 mm may vary depending on drilling conditions and the formation being drilled.



The following example shows the SR35 threaded drilling tool.

      Drill Rods

Length Part No. Product Name Product Code Shank Thread Rod Body Thread Rod Body Shape Wrench Flat
5530mm 90008602 Drifter rod（Drill rod for jumbo） 22H35 - SR35/T38 - 5530 - 23 SR35 T38 H35 None
4310mm 90008603 Drifter rod（Drill rod for jumbo） 22H35 - SR35/T38 - 4310 - 23 SR35 T38 H35 None
3700mm 90008604 Drifter rod（Drill rod for jumbo） 22H35 - SR35/T38 - 3700 - 23 SR35 T38 H35 None

GIA R35

GIA K111

GIA 0338XD+

GIA Q5

GIA Q6

GIA X1

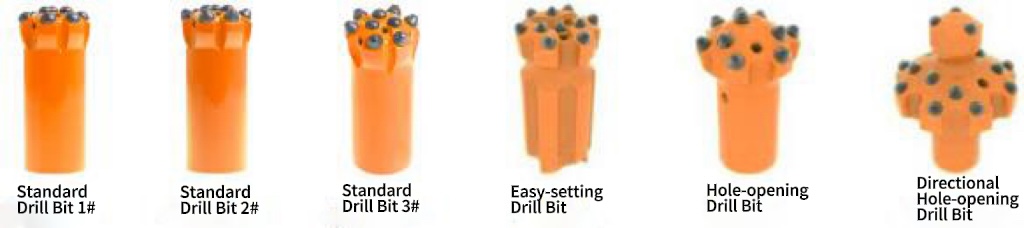

      Drill Bit

Diameter Part No. Product Code Thread Face Form Button Form Number of Gauge Buttons（× Diameter） Number of Top Gauge Buttons（× Diameter） Side Water Hole（× Diameter） Top Water Hole（× Diameter） Chisel Edge Angle Application Recommendation
Soft Hard Service Life Speed
45mm 90005222 1431 - 45SR35 - 38/610 - 50 - 61 SR35 Flat Face Conical Button 6×10mm 3×8mm 1×6mm 3×5mm 35°   XXX XXX XXX
45mm 90005223 1431 - 45SR35 - 38/69 - 50 - 61 SR35 Flat Face Conical Button 6×9mm 3×8mm 1×5mm 3×5mm 40° XXX   X XXX
45mm 90005220 1431 - 45SR35 - 38/610 - 50 - 51 SR35 Flat Face Ballistic Button 6×10mm 3×8mm 1×6mm 3×5mm 35° XX   XXX X
45mm 90005221 1431 - 45SR35 - 38/69 - 50 - 51 SR35 Flat Face Ballistic Button 6×9mm 3×8mm 1×6mm 3×5mm 35° X X XX XXX
57mm 90005228 1431 - 57SR35 - 39/610 - 50 - 51 SR35 Flat Face Ballistic Button 6×10mm 3×98mm - 3×6mm 35°
64mm 90005229 1431 - 64SR35 - 410/810 - 50 - 51 SR35 Flat Face Ballistic Button 8×10mm 4×10mm - 2×9mm 40°
76mm 90005230 1431 - 76SR35 - 411/812 - 50 - 51 SR35 Flat Face Ballistic Button 8×12mm 4×11mm 1×7mm 2×9mm 35°
76mm 90005231 1441 - 76SR35 - 409/1211 - 50 - 41 SR35 Guided Reaming Button 8×11mm 4×11mm
4×9mm		 2×10mm - 35°
89mm 90005232 1441 - 89SR35 - 310/1212 - 50 - 41 SR35 Guided Reaming Button 8×12mm 4×12mm
3×10mm		 2×10mm 1×5mm -
102mm 90005233 1441 - 102SR35 - 313/1213 - 50 - 41 SR35 Guided Reaming Button 8×13mm 4×13mm
3×13mm		 4×8mm - 35°

       Note: “×” represents the intensity of the item. The more “×” symbols, the better the performance of that item.



All specifications are approximate. Specifications are subject to change without notice.
