| Model |

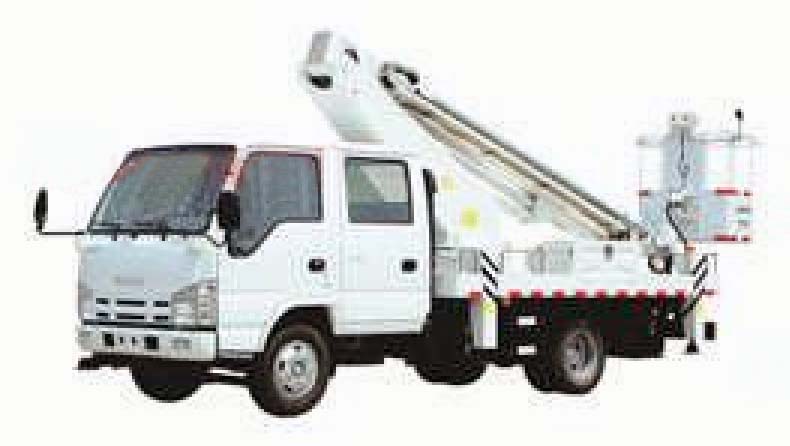

16M-AERIAL-PLATFORM |
| Chassis Brand |
ISUZU |
| Overall Dimension |
7650*2100*3250mm
|
| GVW/Kerb Weight |
6810kg/6485kg |
| Cab Capacity |
2+3 persons allowed |
| Air Conditioner |
With air conditioner |
| Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine,4KH1-TCG40 |
| Power |
120Ps |
| Displacement |
2999ml |
| Emission Standard |
EuroIV |
| Drive Type |
4X2(left hand drive) |
| Transmission |
ISUZU MSB transmission, 5-forward gears & 1 reverse,
no overhaul within 500,000km |
| Wheelbase/No. of axle |
3815 mm/2 |
| Tire Specification |
7.00-16or7.00R16 |
| Tire Number |
6 tyres and 1 spare tire |
| Max Speed |
95 km/h |
| Paint |
Metallic paint |
| Cage Rated Capacity |
200 kg |
| Working Height |
16m |
| Beam |
The beam is articulated & telescopic extension type,hydraulic actuated and controlled |
| Slewing |
Slewing range is continuous 235° (minimum) with aslewing speed of maximum 15° per second. |
| Control |
Control both on the ground and remote control in cage |
| Safety Device |
Relief valve, balance valve, double-way hydraulic lock,hand operated emergency hydraulic pump |
| Leveling System |
Hydraulic stabilizer to level the vehicle on uneven Leveling System ground |
|
|
