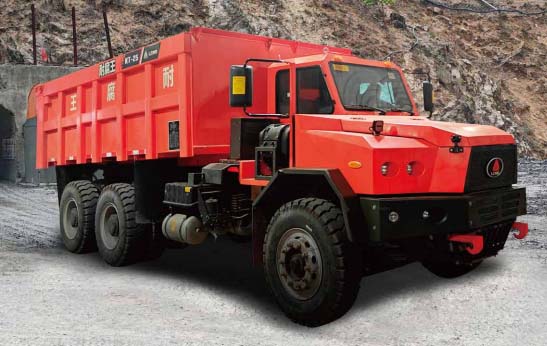

LGMG Underground Mining Truck KT25

KT25-China-Lgmg-Mining Underground Mining Truck

Model	KT25
Curb Weight (kg)	13800kg
Designed Gross Mass (kg)	38800kg
Rated Load (t)	25
Engine	YUCHAI YCK08300-S300
Transmission	FAST 7DS100
Axle Load (t)	9.5+16+16
Tire	尼龙胎，10.00-20
Maximum Speed (km/h)	40
Size of Baffle Box (Length × Width × Height mm)	/
Volume of Baffle Box (m³)	11/13.5
Overall Dimension of the Machine (Length × Width × Height mm)	7800x2630x2650

All specifications are approximate. Specifications are subject to change without notice.
