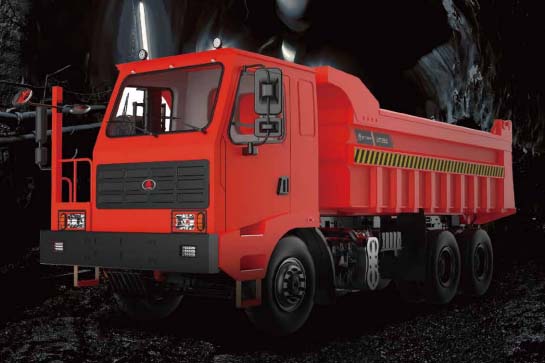

LGMG Underground Mining Truck UT350F

UT350F-China-Lgmg-Mining Underground Mining Truck

Model	UT350F
Curb Weight (kg)	20000kg
Designed Gross Mass (kg)	55000kg
Rated Load (t)	35
Engine	WEICHAI WP12G460E470
Transmission	FAST 7DS180
Axle Load (t)	9.5+16+16
Tire	12.00R20
Maximum Speed (km/h)	50/51
Size of Baffle Box (Length × Width × Height mm)	/
Volume of Baffle Box (m³)	16.5/20
Overall Dimension of the Machine (Length × Width × Height mm)	8816×2500×3150

All specifications are approximate. Specifications are subject to change without notice.
