PX-KD15

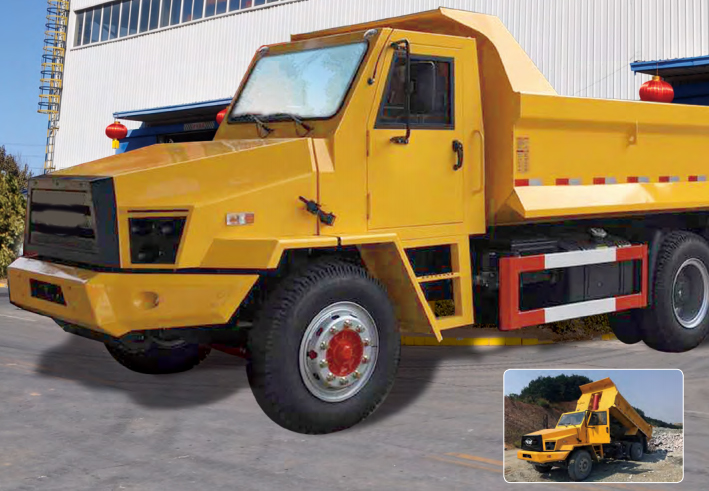

PX-KD15 - China PX mining dump truck

Model	PX-KD15
Overall dimension(mm)	6600×2550×2480
Inner dimension of box(mm)	3600×2300×1000
Body Capacity(m³)	8
Curb Weigh(kg)	11900
Rated load(kg)	15000
Rated total weight(kg)	26900
Engine	YFAW Xichai CA6DL2-26-GU33(China III)
Transmission	FAST 9JS119
Front/rear axle	PX 7T front axle/PX φ300 reduction casting steel axle
Body description	Q345 bottom 24mm side 16mm, 4TG-180×5230 cylinder
Min ground clearance(mm)	235
Min turning radius(m)	≤5.1
Max gradeability	25%
Tire	10.00R22

PX105

PX95

PX90

PX65

PX105E

PX95E

PX90E

PX105HD

Battery-Swapping PX105

Unmanned PX105

PX120

PX48

PX-KD25

PX-KD15

PX136MT

All specifications are approximate and subject to change without notice.
