PX-KD25

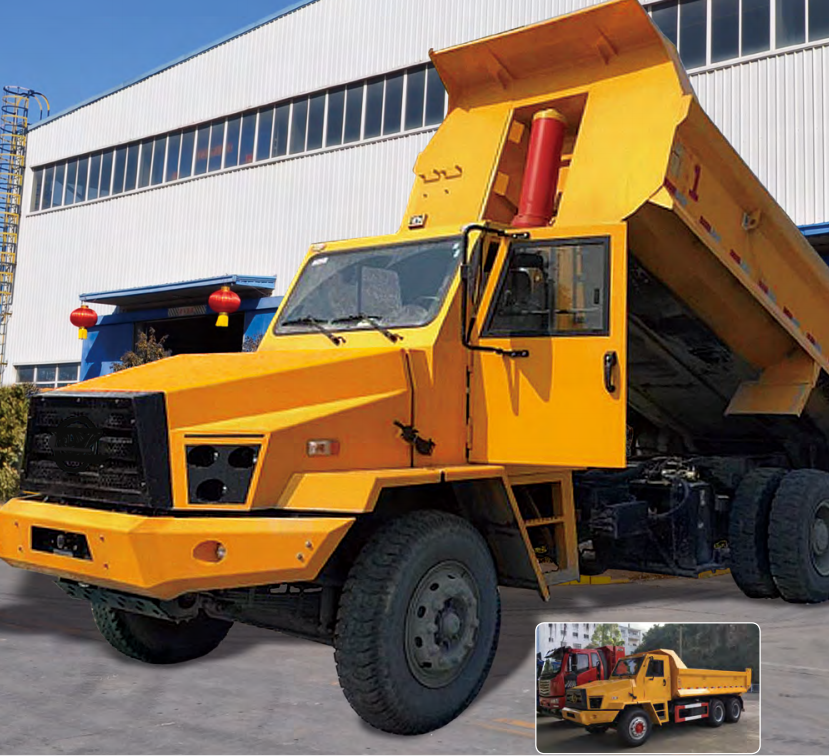

PX-KD25 - China PX mining dump truck

Model	PX-KD25
Overall dimension(mm)	7890×2500×2600
Inner dimension of box(mm)	4950×2350×1000
Body capacity(m³)	12
Curb Weigh(kg)	14200±100
Rated load(kg)	25000
Rated total weight(kg)	39200±100
Engine	Yuchai 375HP(China III)
Transmission	FAST 10JSD160
Front/rear axle	PX 7T front axle/PX φ300 reduction casting steel axle
Body description	Mn steel plate bottom 26mm side 10mm, 160 front hoisting cylinder
Min ground clearance(mm)	290
Min turning radius(m)	≤8
Max gradeability	21%
Tire	10.00R20

PX105

PX95

PX90

PX65

PX105E

PX95E

PX90E

PX105HD

Battery-Swapping PX105

Unmanned PX105

PX120

PX48

PX-KD25

PX-KD15

PX136MT

All specifications are approximate. Specifications are subject to change without notice.
