| Model |

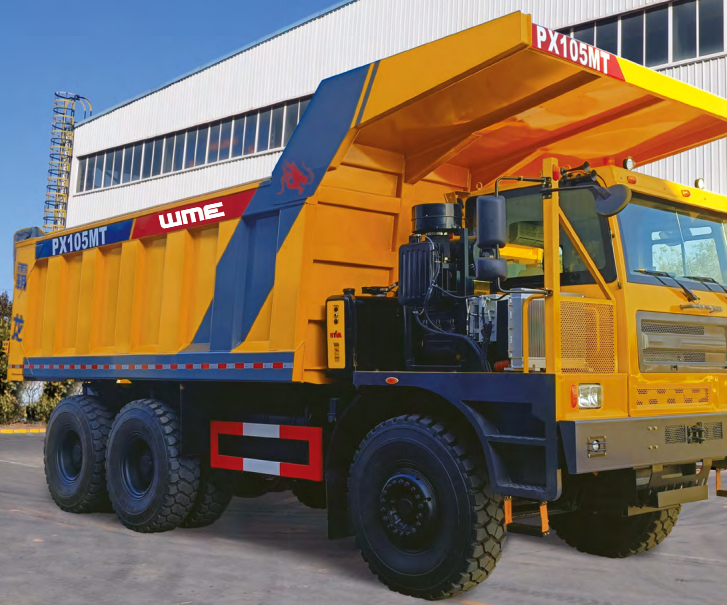

PX105MT/AT |
PX105 Coal Truck |
PX105MTYQ |
| Overall dimension(mm) |
9600×3680×4300 |
10500×3680×4400 |
9600×3680×4300 |
| Wheel base(mm) |
4000+1690 |
4600+1750 |
4000+1690 |
| Inner dimension of box(mm) |
6400×3400×1750 |
7400×3400×2400 |
6400×3400×1750 |
| Body capacity(m³) |
38-40 |
Flat:60/Stack:70 |
40 |
| Curb Weigh(kg) |
35000 |
35000 |
35000 |
| Rated load(kg) |
70000 |
70000 |
70000 |
| Rated total weight(kg) |
105000 |
105000 |
105000 |
| Engine |
Yuchai 520-560HP(China III)/Weichai 530HP(China III) |
Yuchai 520-560HP(China III)/Weichai 530HP(China III) |
YuChai YC6K520-GT30 E3/WP13G530E310 |
| Transmission |
FAST 8DS260/Allison 4800ORS |
FAST 8DS260/Allison 4800ORS |
FAST 8DS260 |
| Steering Engine |
Eaton full hydraulic |
Eaton full hydraulic |
Eaton full hydraulic |
| Front/rear axle |
PX 25T front axle/ PX40T casting dual reduction tandem axle |
PX 25T front axle/ PX40T casting dual reduction tandem axle |
PX 25T front axle/ PX40T casting dual reduction tandem axle |
| Frame |
480×140Welded rigid frame |
480×140Welded rigid frame |
Welded Semi-rigid cube type frame 480*140 |
| Body description |
High strength plate, bottom 16mm, side 12mm, front hoisting, Hyva cylinder, square box |
High strength plate, bottom 16mm, side 12mm, front hoisting, Hyva cylinder, square box |
Bottom board 16mm side board 12mm,Front hoisting,Cylinder Hyva202 ,Mining cargo body; |
| Leaf spring |
Front:pneumatic，hydraulic, rear:120×27×18 |
Front:pneumatic，hydraulic, rear::120×27×18 |
Front: Oil-gas spring Rear:120×27×18 |
| Min ground clearance(mm) |
435 |
435 |
435 |
| Min turning radius(m) |
≤12 |
≤12 |
≤12 |
| Max gradeability |
35% |
33% |
35% |
| Tire |
16.00R25 |
16.00R25 |
16.00R25 |
