| Model |

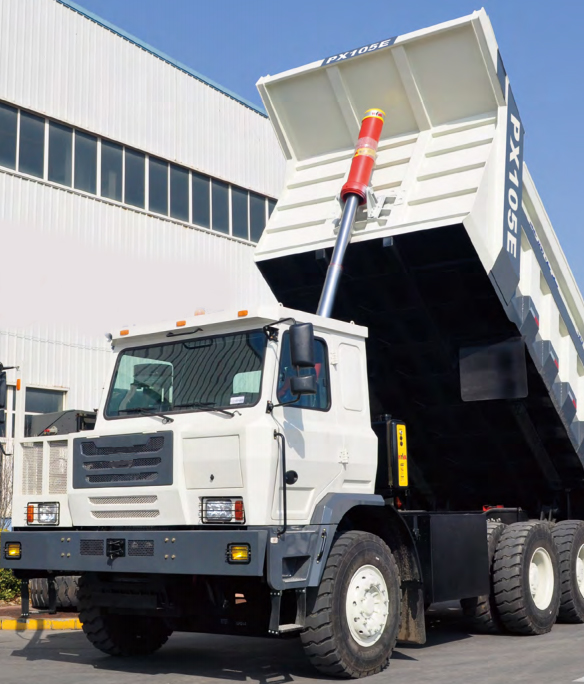

PX105E |
| Overall dimension(mm) |
9600×3670×4380 |
| Wheel base(mm) |
4000+1750 |
| Inner dimension of box(mm) |
6400×3400×1750 |
| Body Capacity(m³) |
38 |
| Curb Weigh(kg) |
35000 |
| Rated load(kg) |
70000 |
| Rated total weight(kg) |
105000 |
| Battery |
CATL |
| Heat management |
Air international:8+8kw |
| Transmission |
Langgao 2gears |
| Motor |
Langgao dual motor |
| Steering Engine |
Full hydraulic |
| Front/rear axle |
PX 25T front axle/ PX40T casting dual reduction tandem axle |
| Frame |
480×150 Welded rigid frame |
| Body description |
High strength plate, bottom 16mm, side 12mm, rear 12mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
Front: pneumatic hydraulic, rear:120×32×13 |
| Min ground clearance(mm) |
380 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
33% |
| Tire |
16.00R25 |
|
|
