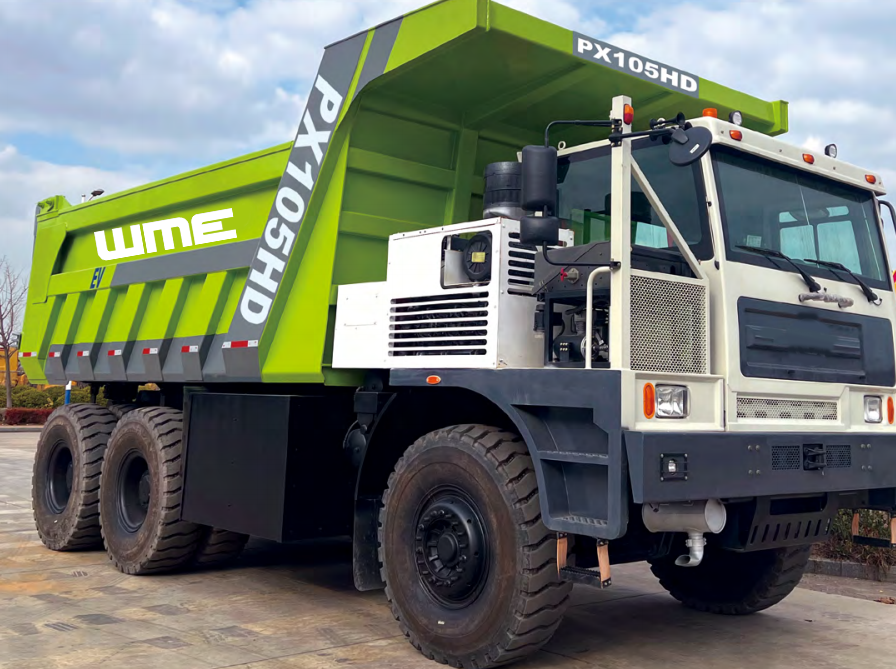

| Model |
PX105HD |
| Overall dimension(mm) |
9800×3670×4380 |
| Wheel base(mm) |
4200+1750 |
| Inner dimension of box(mm) |
6400×3400×1850 |
| Body capacity(m³) |
40 |
| Curb Weigh(kg) |
35000 |
| Rated load(kg) |
68000 |
| Rated total weight(kg) |
105000 |
| Battery |
CATL 423kwh |
| Extender |
Yucai YC100ZQ-1 |
| Motor |
Breton BRT2A450 |
| Heat management |
16KW heat management unit |
| Transmission |
Breton |
| Steering Engine |
Full hydraulic |
| Front/rear axle |
PX 25T front axle/ PX35T casting dual reduction tandem axle |
| Frame |
450×150Welded rigid frame |
| Body description |
High strength plate, bottom 16mm, side 12mm, rear 12mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
Front:pneumatic，hydraulic, rear:120×27×18 |
| Min ground clearance(mm) |
380 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
33% |
| Tire |
16.00R25 |
|
|
