| Model |
PX120MT |

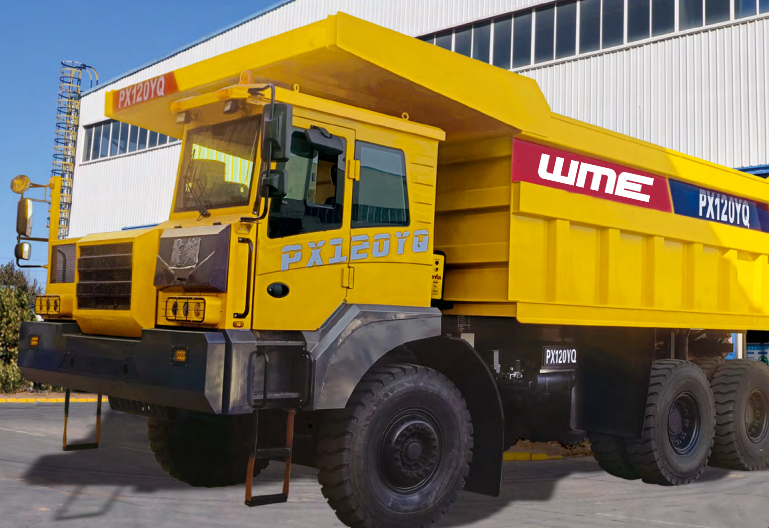

PX120 Coal Truck
|
| Overall dimension(mm) |
9700×3980×4230 |
11200×3980×4730 |
| Wheel base(mm) |
4050+1900 |
4800+1900 |
| Inner dimension of box(mm) |
6200×3800×2100 |
7700×3800×2400 |
| Body capacity(m³) |
Flat:50/Stack:60 |
Flat:70/Stack:81 |
| Curb Weigh(kg) |
40000 |
40000 |
| Rated load(kg) |
80000 |
80000 |
| Rated total weight(kg) |
120000 |
120000 |
| Engine |
Yuchai 770HP(China III) |
Yuchai 770HP(China III) |
| Transmission |
FAST 8DS260 |
FAST 8DS260 |
| Steering Engine |
Eaton full hydraulic |
Eaton full hydraulic |
| Front/rear axle |
PX 30T front axle/ PX45T casting dual reduction tandem axle |
PX 30T front axle/ PX45T casting dual reduction tandem axle |
| Frame |
Rigid frame 500×140, height: 500mm,width:1250mm, wing plate: 18mm, web plate:14mm |
Rigid frame 500×140, height: 500mm,width:1250mm, wing plate: 18mm, web plate:14mm |
| Body description |
High strength plate, bottom 16mm, side 12mm, front hoisting, Hyva cylinder, square box |
High strength plate, bottom 12mm, side 10mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
Front:pneumatic，hydraulic, rear: dual pneumatic，hydraulic |
Front:pneumatic，hydraulic, rear: dual pneumatic，hydraulic |
| Min ground clearance(mm) |
435 |
435 |
| Min turning radius(m) |
≤12 |
≤12 |
| Max gradeability |
30% |
30% |
| Tire |
16.00R25 |
16.00R25 |
|
|
