| Model |

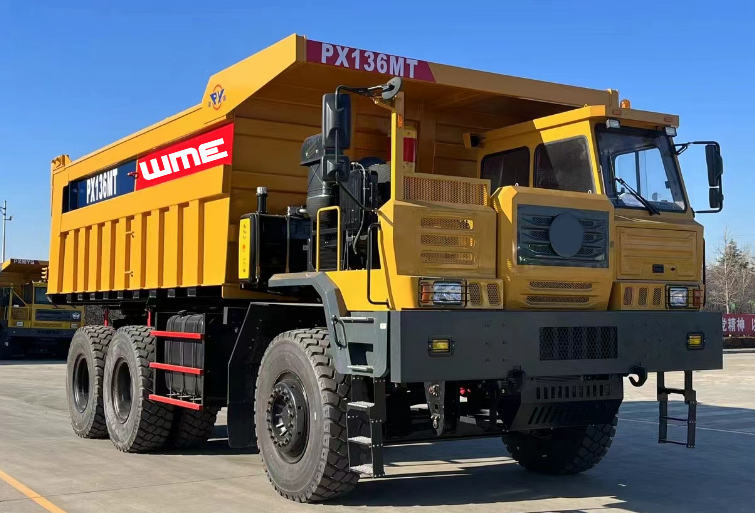

PX136MT |
| Overall dimension(mm) |
9950×4200×4500 |
| Wheel base(mm) |
4200+1900 |
| Inner dimension of box(mm) |
6700×3800×1950 |
| Body Capacity(m³) |
50 |
| Curb Weigh(kg) |
45000 |
| Rated load(kg) |
95000 |
| Rated total weight(kg) |
140000 |
| Engine |
Cummins QSM15 77C/YC770/WP765 |
| Transmission |
Fast 8DS280 |
| Steering Engine |
Full hydraulic power steering engine |
| Front/rear axle |
PX30Tcasting steel front axle/PX 55T casting dual reduction middle/rear axle |
| Frame |
Welded Semi-rigid cube type frame 550×155（25+16） |
| Body description |
BHNM400 steel plate bottom plate is 18mm, T700 steel plate side plate is 12mm |
| Min ground clearance(mm) |
425 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
35% |
| Tire |
480/95R29 |
