| Model |

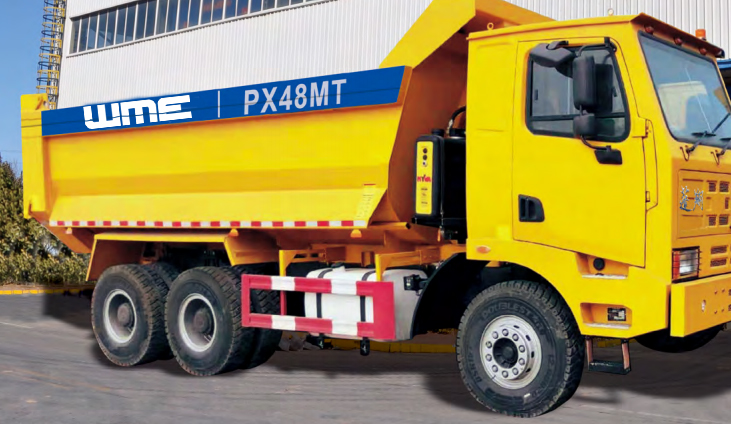

PX48MT |
| Overall dimension(mm) |
8750×2560×3450 |
| Wheel base(mm) |
3825+1350 |
| Inner dimension of box(mm) |
5400×2350×1500 |
| Body Capacity(m³) |
19 |
| Curb Weigh(kg) |
15000 |
| Rated load(kg) |
30000 |
| Rated total weight(kg) |
45000 |
| Engine |
WeiChai 340HP(China III) |
| Transmission |
FAST RTD11509C |
| Steering Engine |
Hydraulic power |
| Front/rear axle |
9Tfront axle/PX 16T casting reduction axle |
| Frame |
300×90×(8+8) |
| Body description |
Bottom 8+8 mm, side 8mm, rear10mm, T700 plate, front hoisting, HYVA cylinder, U shape box |
| Min ground clearance(mm) |
314 |
| Min turning radius(m) |
≤8 |
| Max gradeability |
30% |
| Tire |
10.00R20 |
|
|
