| Model |

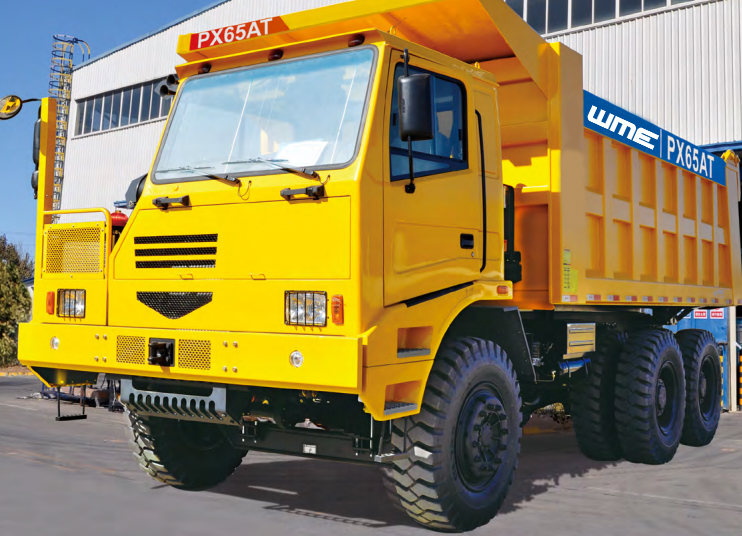

PX65MT/AT |
PX65MT |
| Overall dimension(mm) |
8680×3050×3800 |
8680×3050×3800 |
| Wheel base(mm) |
3650+1560 |
3650+1560 |
| Inner dimension of box(mm) |
5600×2850×1550 |
5600×2850×1550 |
| Body Capacity(m³) |
25 |
25 |
| Curb Weigh(kg) |
22000 |
22000 |
| Rated load(kg) |
43000 |
43000 |
| Rated total weight(kg) |
65000 |
65000 |
| Engine |
WeiChai 380HP(China III) |
WD12G420E211(China II) |
| Transmission |
FAST 7DS200K/Allison 4500ORS |
FAST 7DS200K |
| Steering Engine |
Hydraulic power |
Shashi Jiulong Steering Gear |
| Front/rear axle |
PX 13T front axle/ PX25T casting dual reduction tandem axle |
PX 13T front axle/ PX25T casting dual reduction tandem axle |
| Frame |
450×130 Welded rigid frame |
480×140 Welded rigid frame |
| Body description |
Bottom 16mm, side 12mm, front hoisting, Hyva cylinder, square box |
Bottom 16mm, side 12mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
15/100×16,12/100×30 |
15/100×16,12/100×30 |
| Min ground clearance(mm) |
380 |
365 |
| Min turning radius(m) |
≤12 |
≤10 |
| Max gradeability |
30% |
40% |
| Tire |
14.00R24 |
14.00-25-36PR |
| Model |
PX65 Mine Dust-Suppression & Sprinkling Dump Truck |
| Overall dimension(mm) |
10500×3200×3700 |
| Wheel base(mm) |
4600+1560 |
| Tank capacity(mm) |
30 |
| Tank size |
5250×3150×2050 |
| Curb Weigh(kg) |
25000 |
| Rated load(kg) |
40000 |
| Rated total weight(kg) |
65000 |
| Engine |
WeiChai 380HP(China III) |
| Transmission |
FAST 7DS200K |
| Steering Engine |
Mechanic |
| Front/rear axle |
PX 13T front axle/ PX25T casting dual reduction tandem axle |
| Frame |
450×150 Welded rigid frame |
| Leaf spring |
120×32×11 Steel spring |
| Min ground clearance(mm) |
380 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
30% |
| Tank material |
Q235(6mm) Steel plate Q235(6mm) |
| Sprinkling |
Rear sprinkle, side spray with fire monitor |
| Water cannon range |
≥25m |
| Pump model |
80QZB-60/90 Self suction |
| Sprayer model |
WF-100, 50kw |
| Spray range(m) |
100 |
| Auxiliary engine model |
Weifang diesel |
| Rated power |
120 |
| Tire |
14.00R25 |
| Model |
PX65SS |
| Overall dimension(mm) |
10500×3150×4000 |
| Wheel base(mm) |
4600+1560 |
| Tank capacity(mm) |
40 |
| Tank size |
7200×3150×2050 Round-square |
| Curb Weigh(kg) |
25000 |
| Rated load(kg) |
40000 |
| Rated total weight(kg) |
65000 |
| Engine |
WeiChai 420HP(China II) |
| Transmission |
FAST 7DS200K |
| Steering Engine |
Hydraulic power |
| Front/rear axle |
PX 13T front axle/ PX25T casting dual reduction tandem axle |
| Frame |
450×130（16+14） Welded rigid frame |
| Leaf spring |
100×16×15/100×30×12 |
| Min ground clearance(mm) |
385 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
32% |
| Tank material |
6-Q235 Steel plate 6-Q235 |
| Sprinkling |
Front spray, rear sprinklers(high:2,low:2)with fire monitor and 20m water pipe |
| Water cannon range |
≥25m |
| Suction pipe |
80QZB-60/90 Self suction |
| Pump model |
80QZB-60/90 Self suction |
| Spray gun range |
≥25m |
| Spray volume |
0.2 ～ 2.0L/ ㎡ |
| System pressure |
≥300KPa |
| Spray width |
≥15m |
| Suction depth |
≥4m |
| Tire |
14.00R25 |
|
|
