PX90

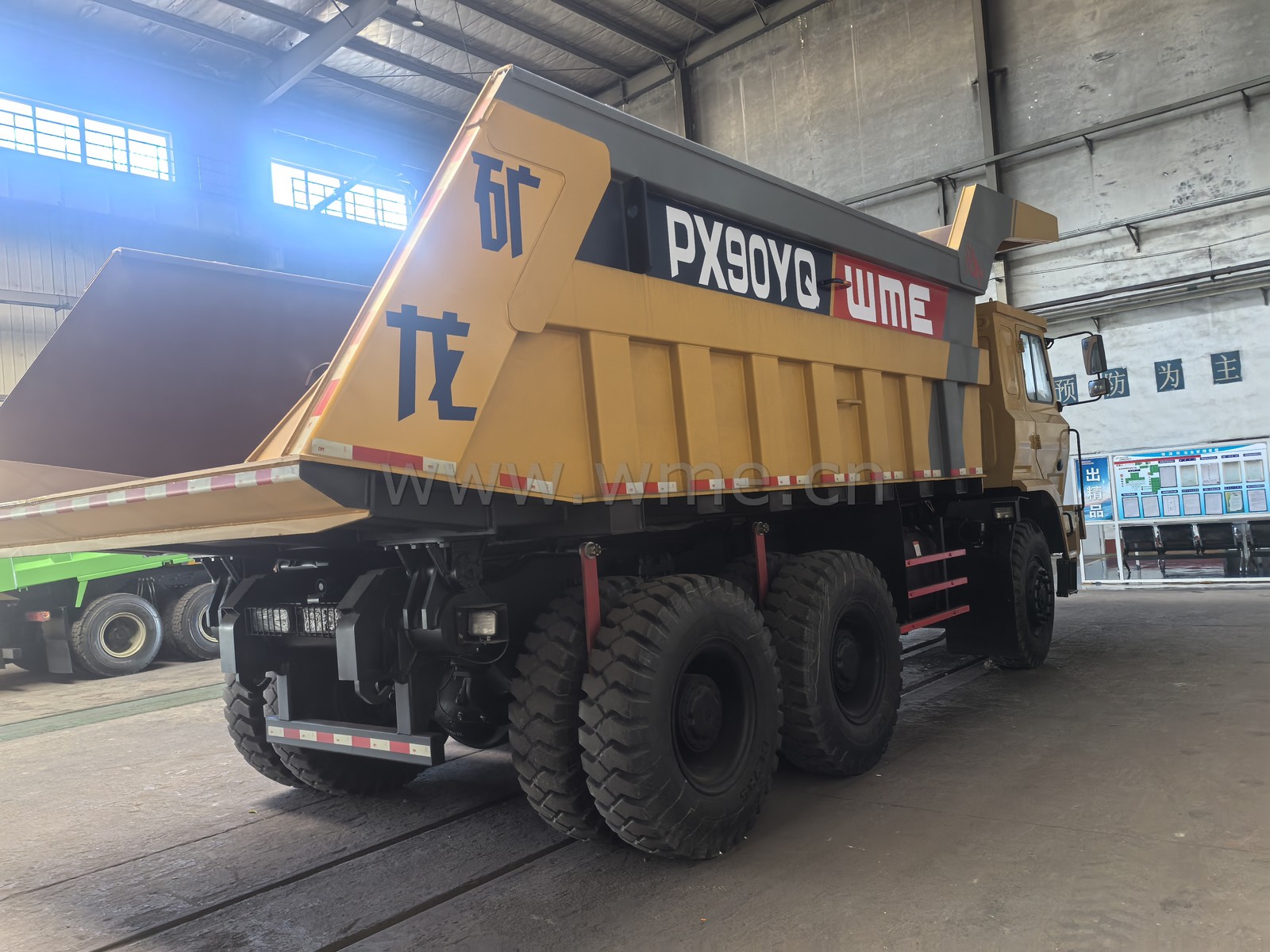

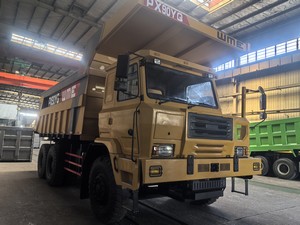

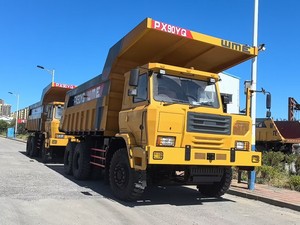

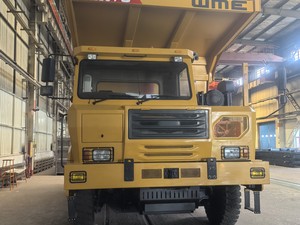

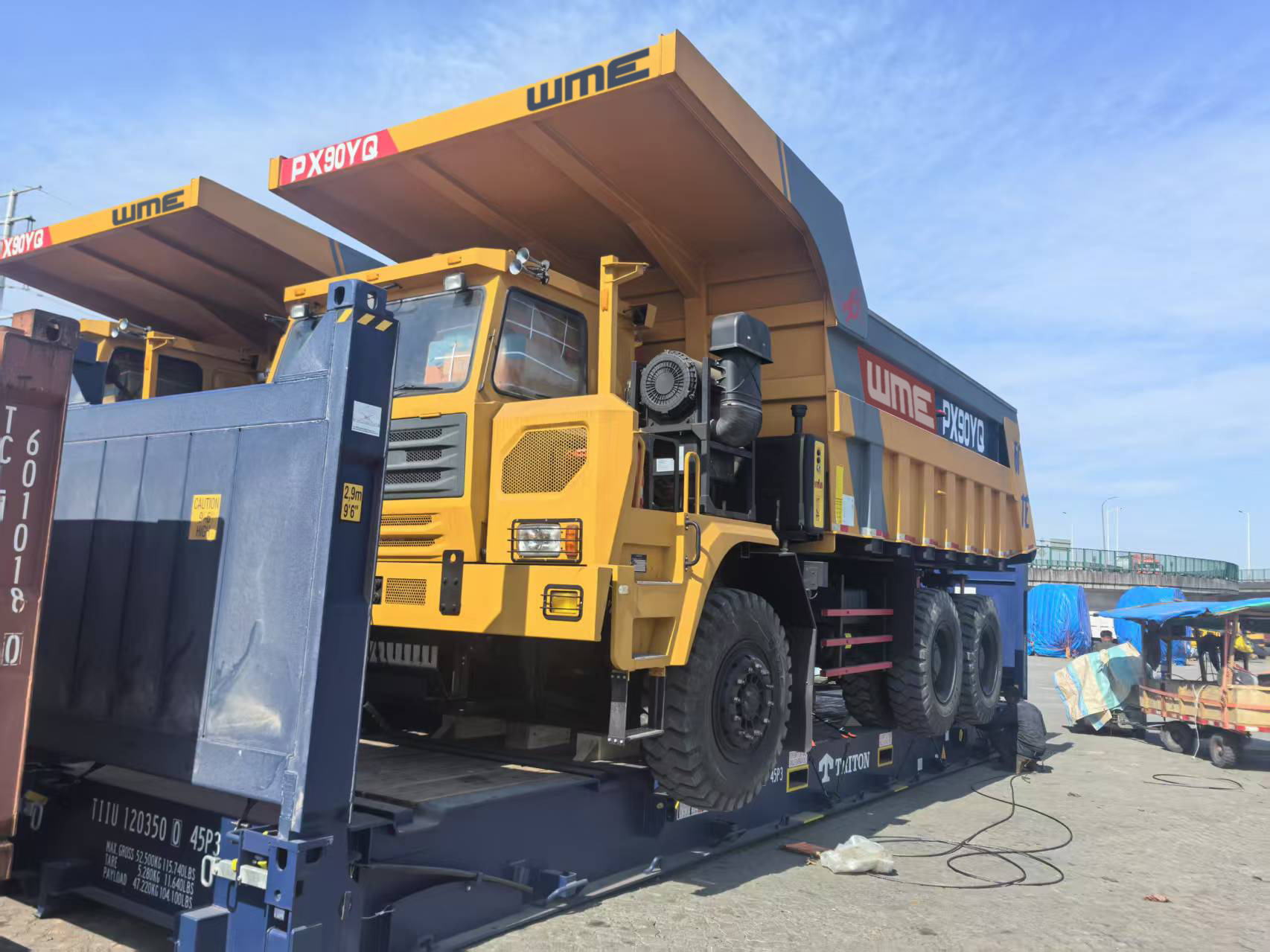

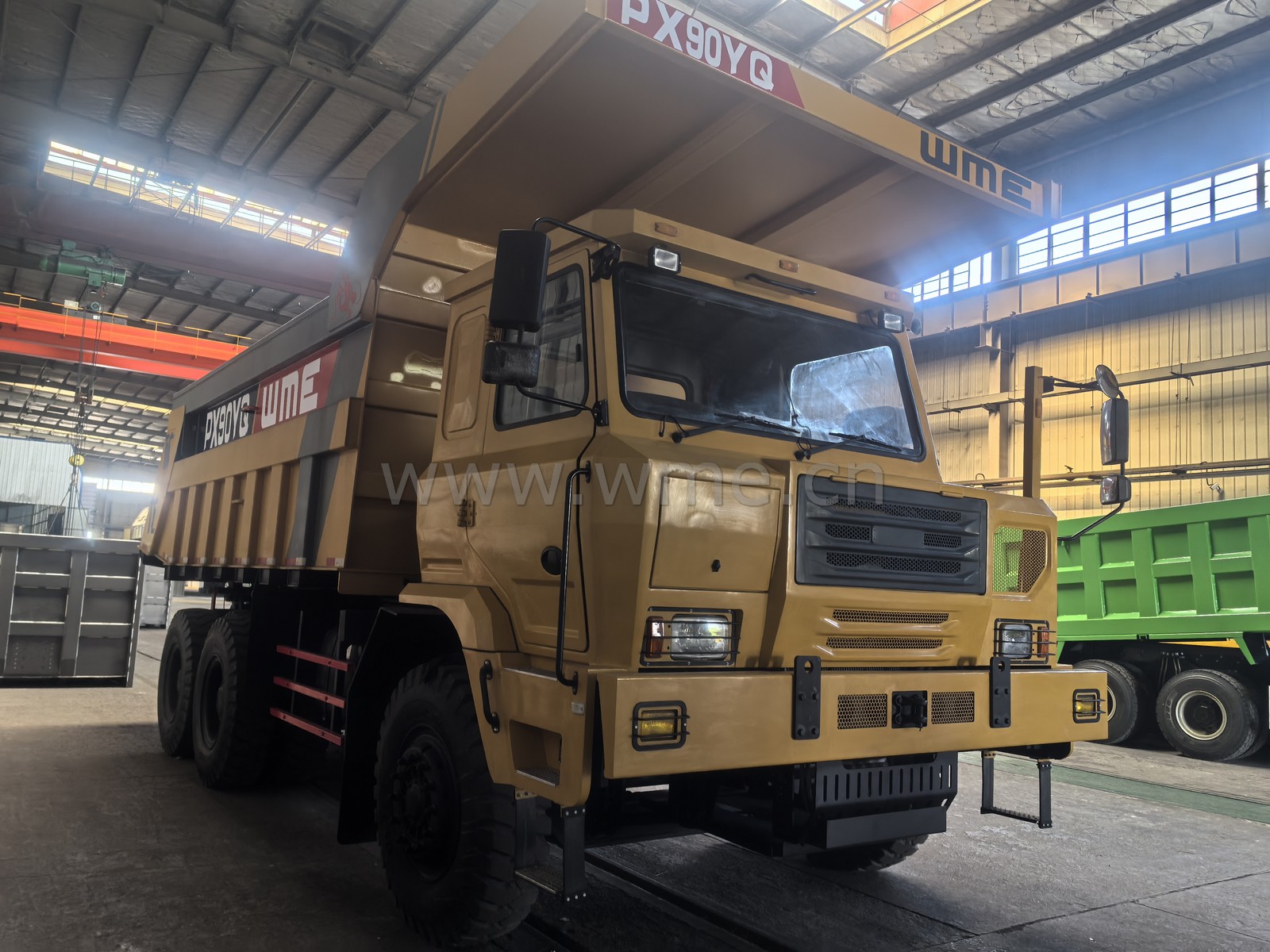

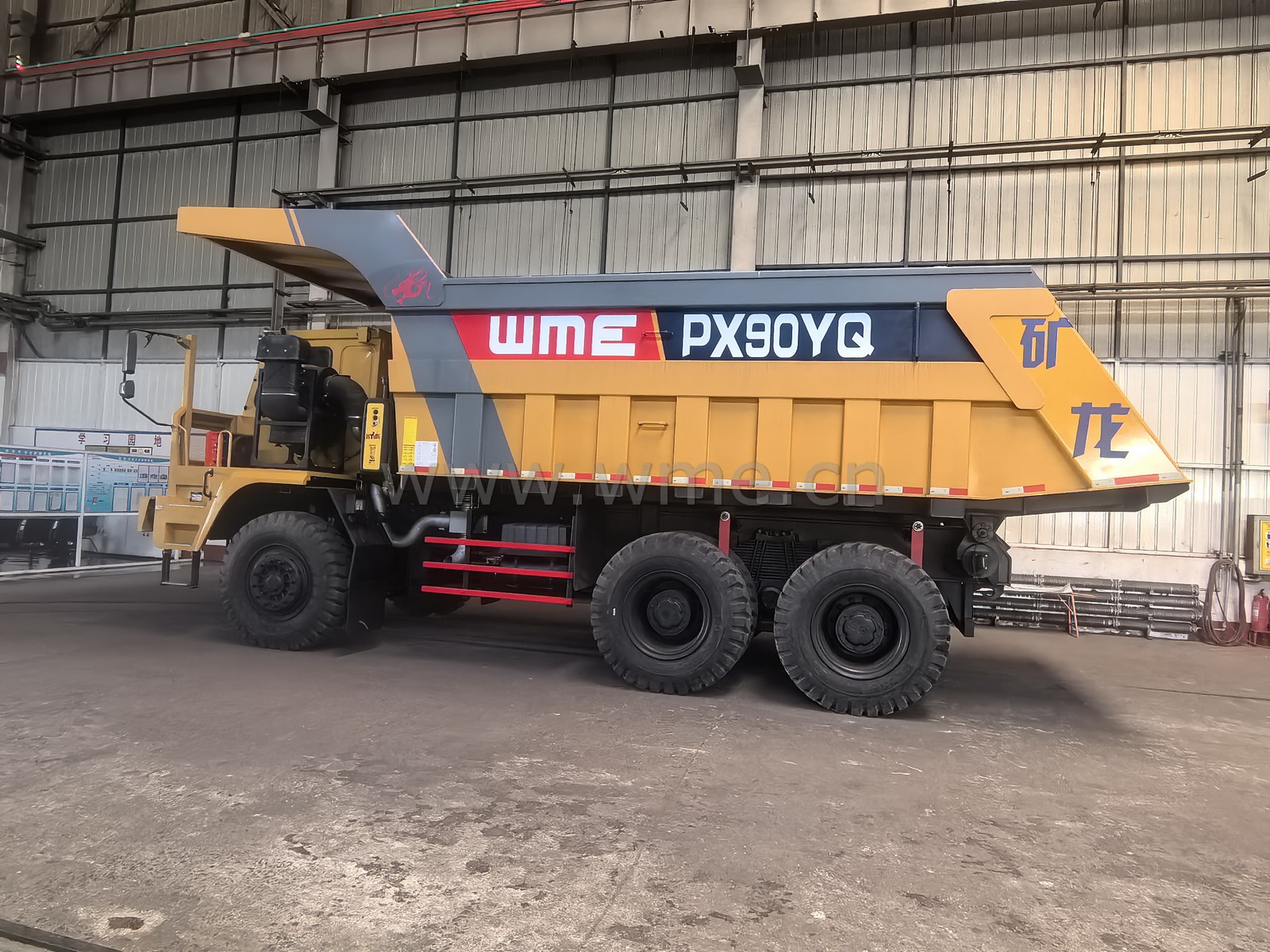

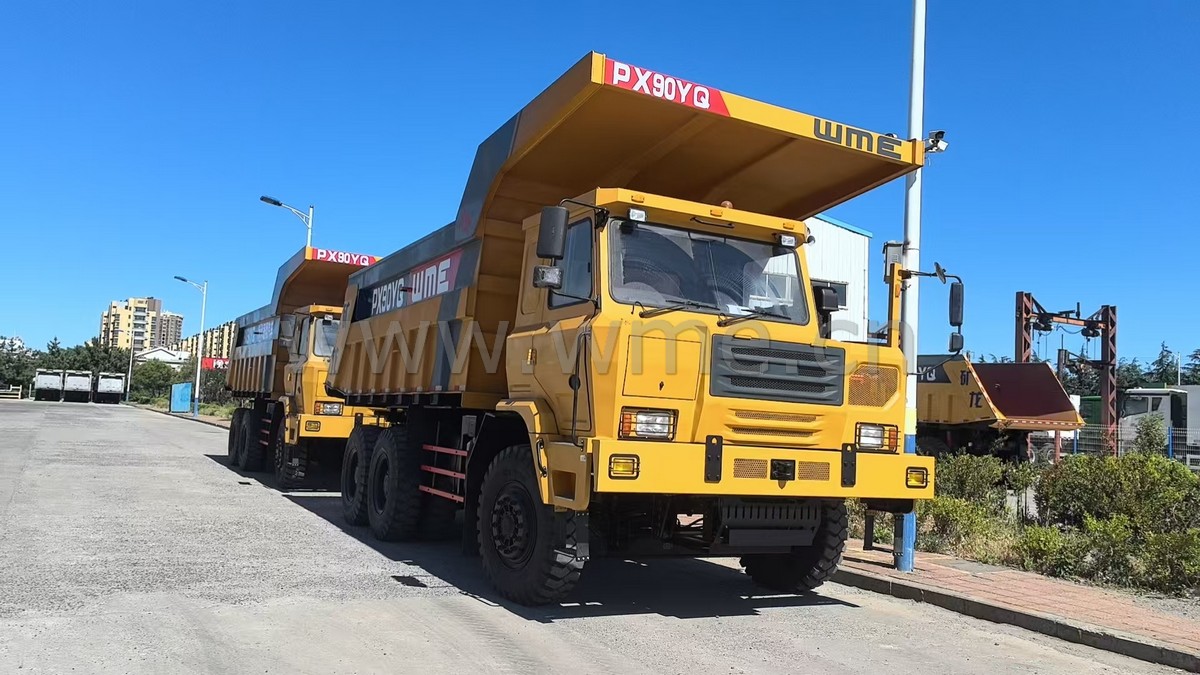

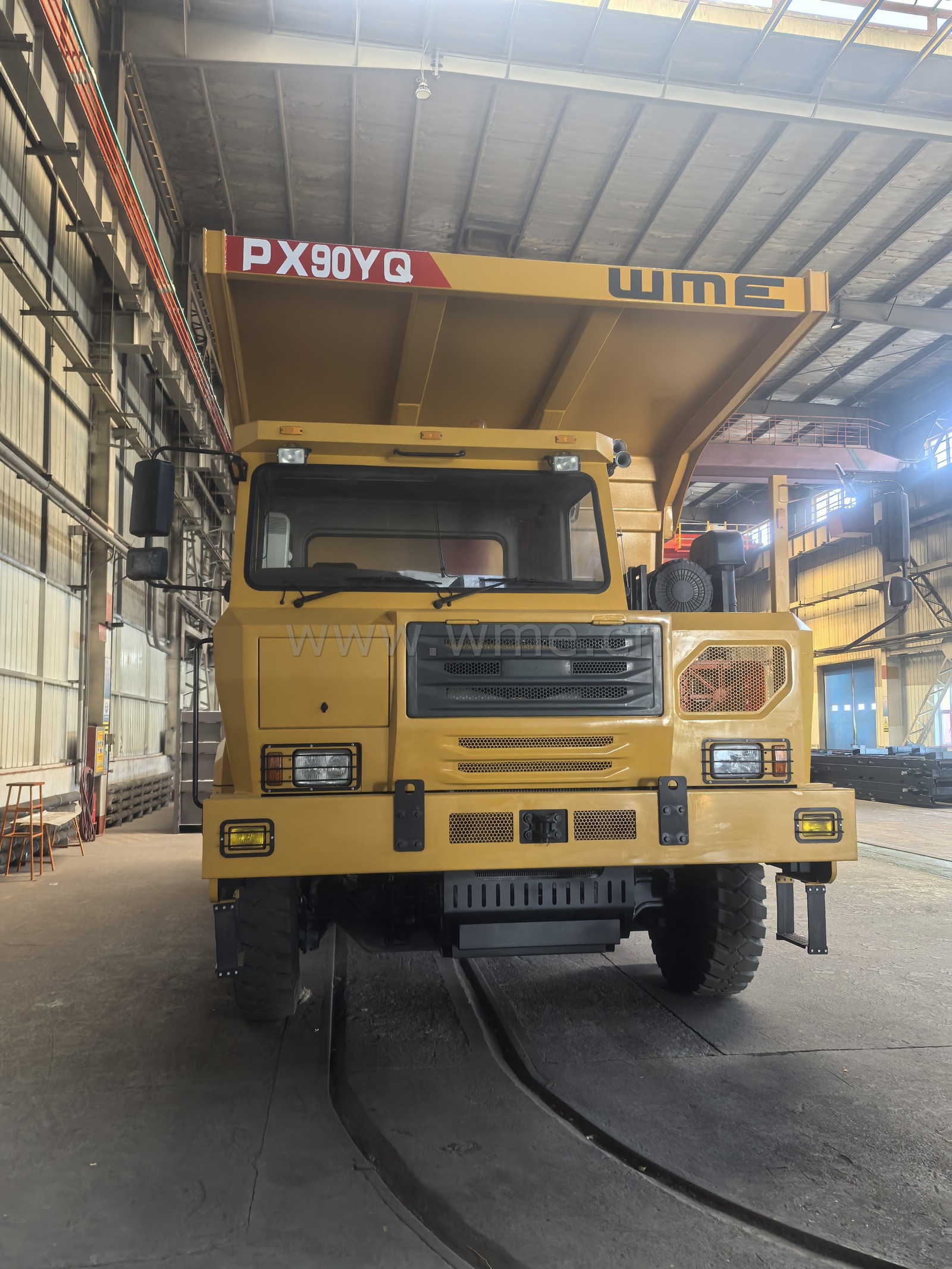

PX90 - China PX mining dump truck

Model	PX90MT/AT	PX90MTYQ
Overall dimension(mm)	9100×3450×4080	9100×3450×4080
Wheel base(mm)	3800+1560	3800+1560
Inner dimension of box(mm)	5850×3200×1750	585032001750
Body capacity(m³)	33	33
Curb Weigh(kg)	32000	30000
Rated load(kg)	60000	60000
Rated total weight(kg)	92000	90000
Engine	Weichai 420HP(China III)/Weichai 480HP(China III)	WeiChai WP12G420 E211
Transmission	FAST 7DS220/Allison 4800ORS	FAST 7DS220
Steering Engine	Hydraulic power/Eaton full hydraulic	Eaton full hydraulic
Front/rear axle	PX 20T front axle/ PX35T casting dual reduction tandem axle	PX 20T front axle/ PX35T casting dual reduction tandem axle
Frame	480×140Welded rigid frame	Welded Semi-rigid cube type frame 450*140

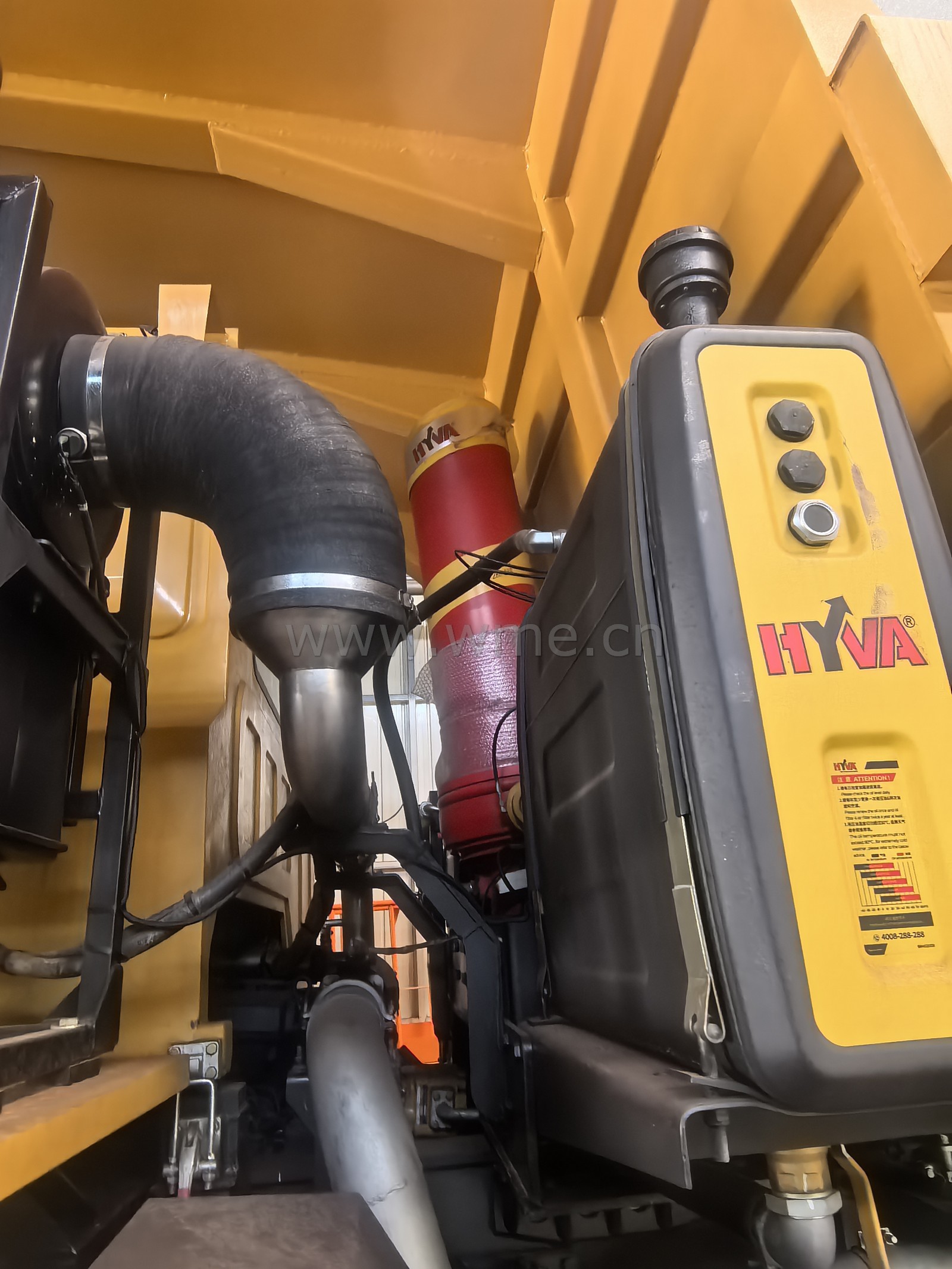

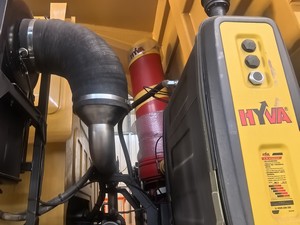

Body description	High strength plate, bottom 16mm, side 12mm,front hoisting, Hyva cylinder, square box	Q355 Bottom board 16mm side board 12mm,Front hoisting,Cylinder Hyva191 ,Mining cargo body
Leaf spring	Front:pneumatic，hydraulic, rear:120×32×11	Front: Oil-gas spring Rear:120×32×11
Min ground clearance(mm)	380	380
Min turning radius(m)	≤12	≤12
Max gradeability	30%	30%

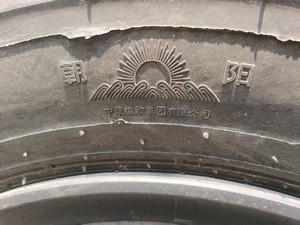

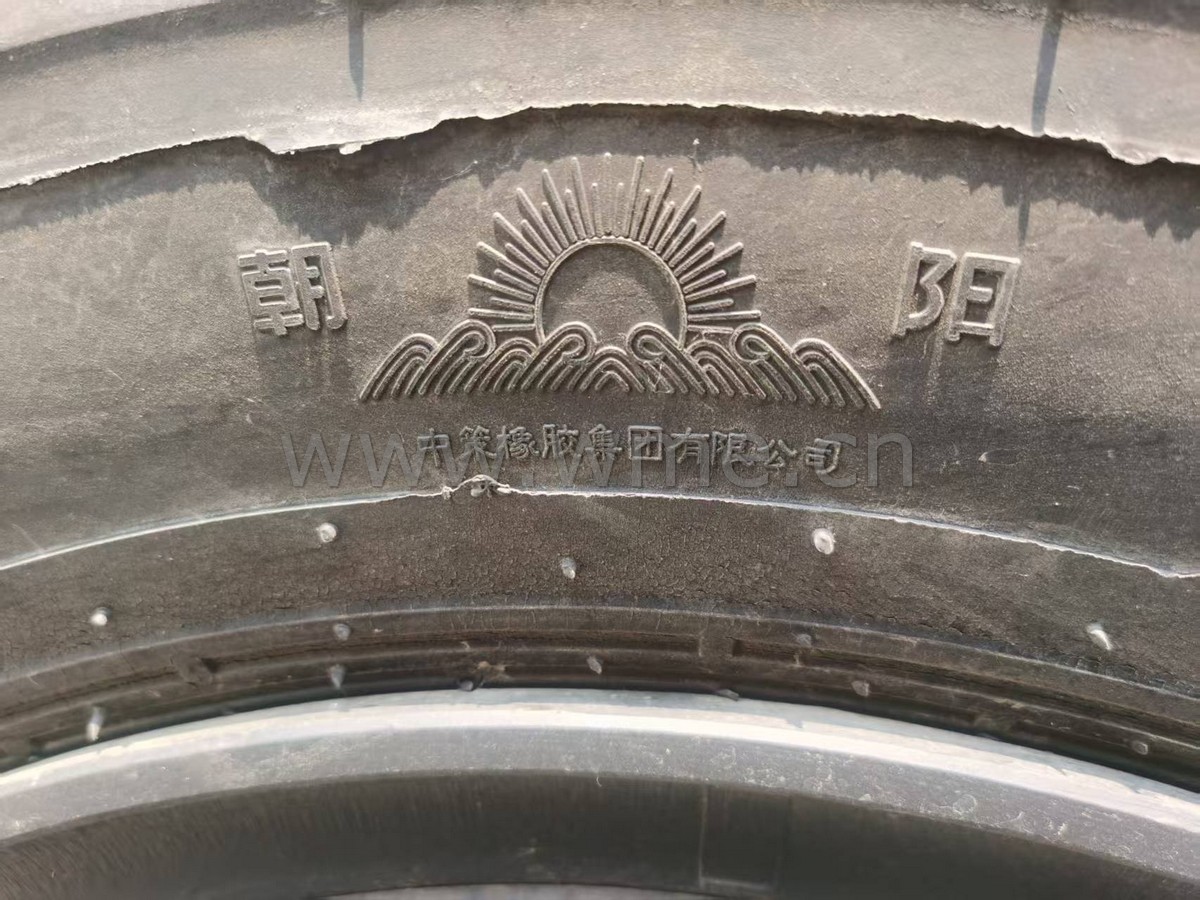

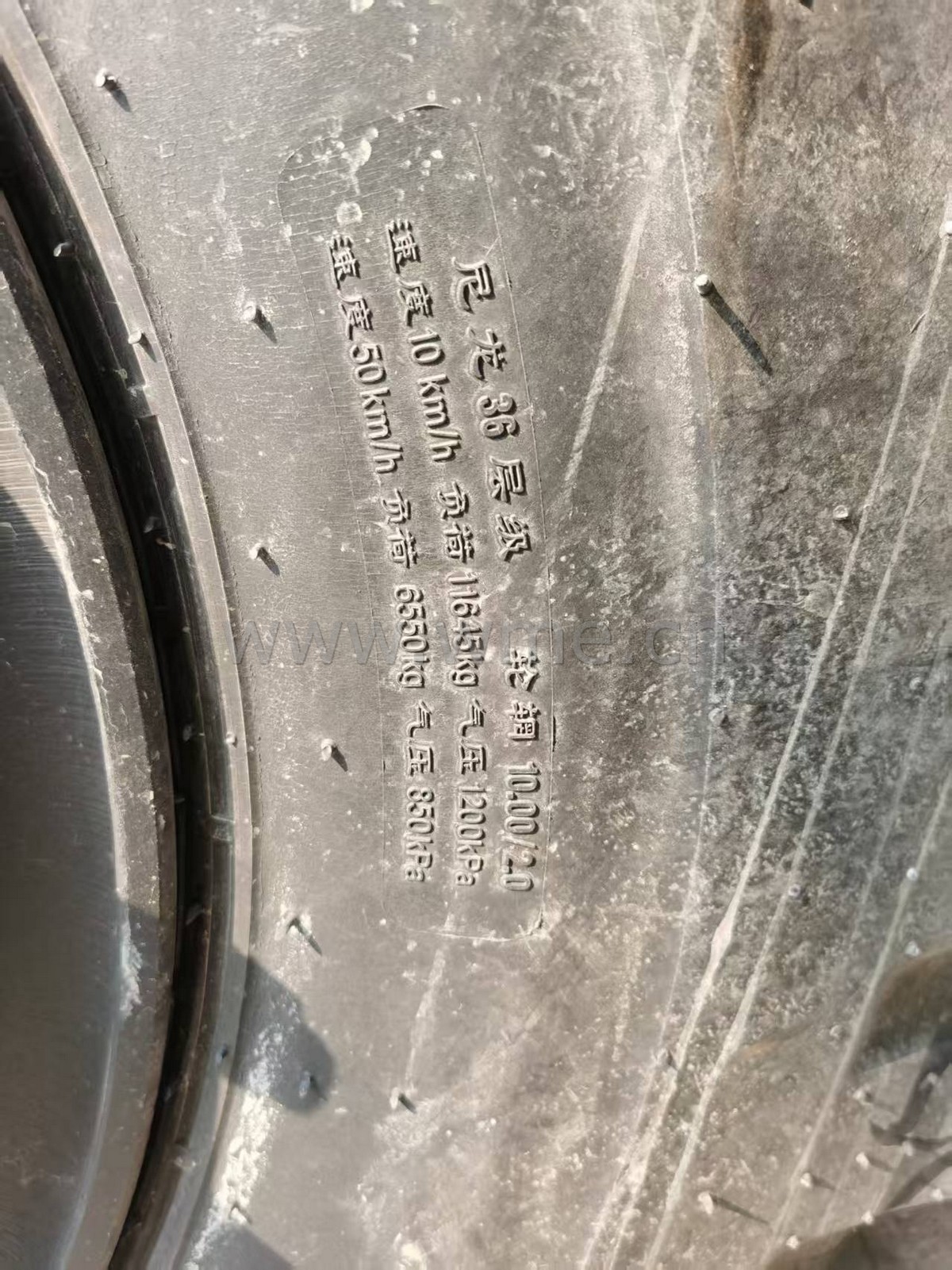

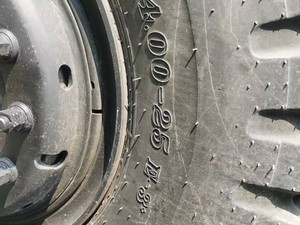

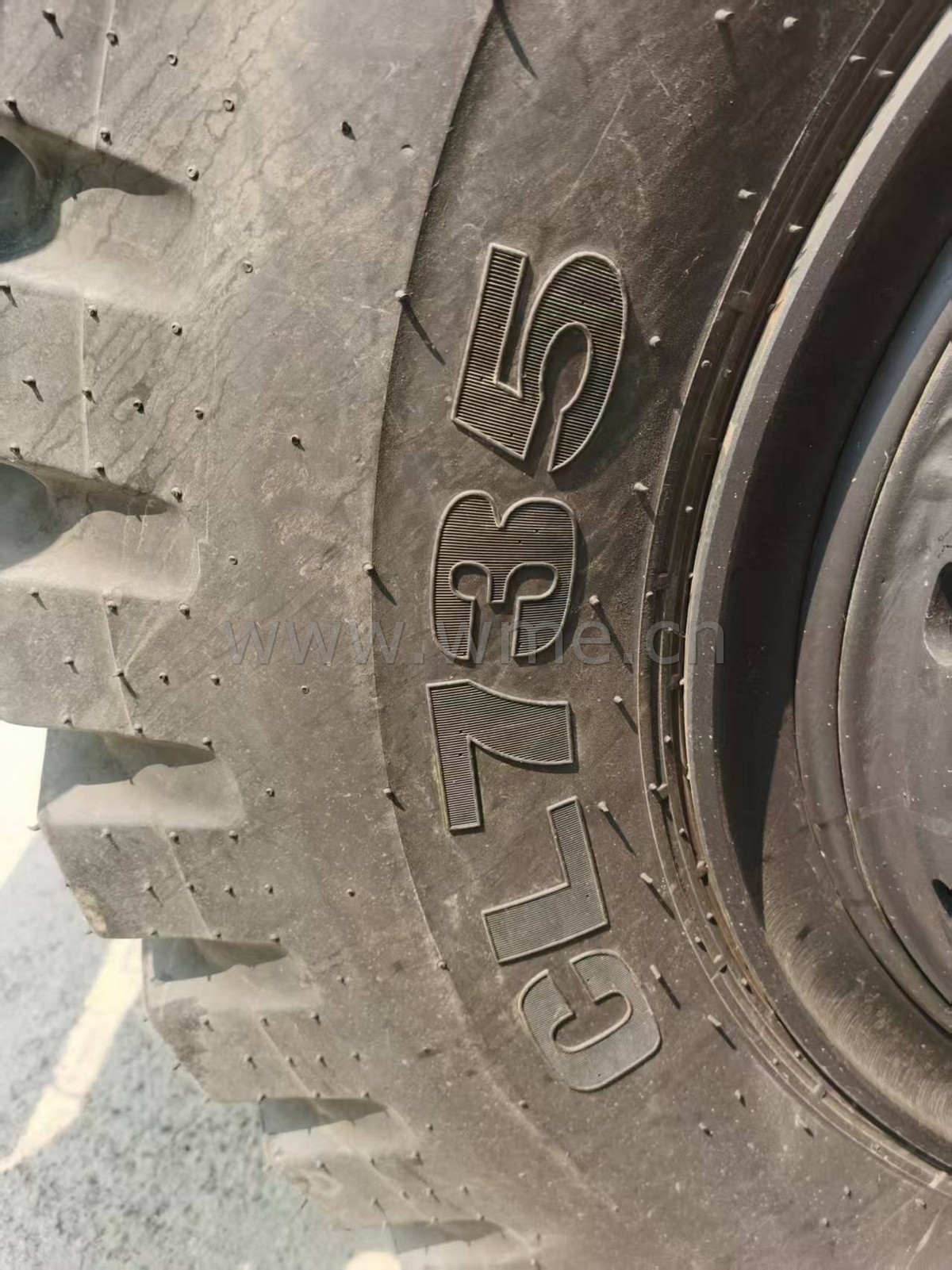

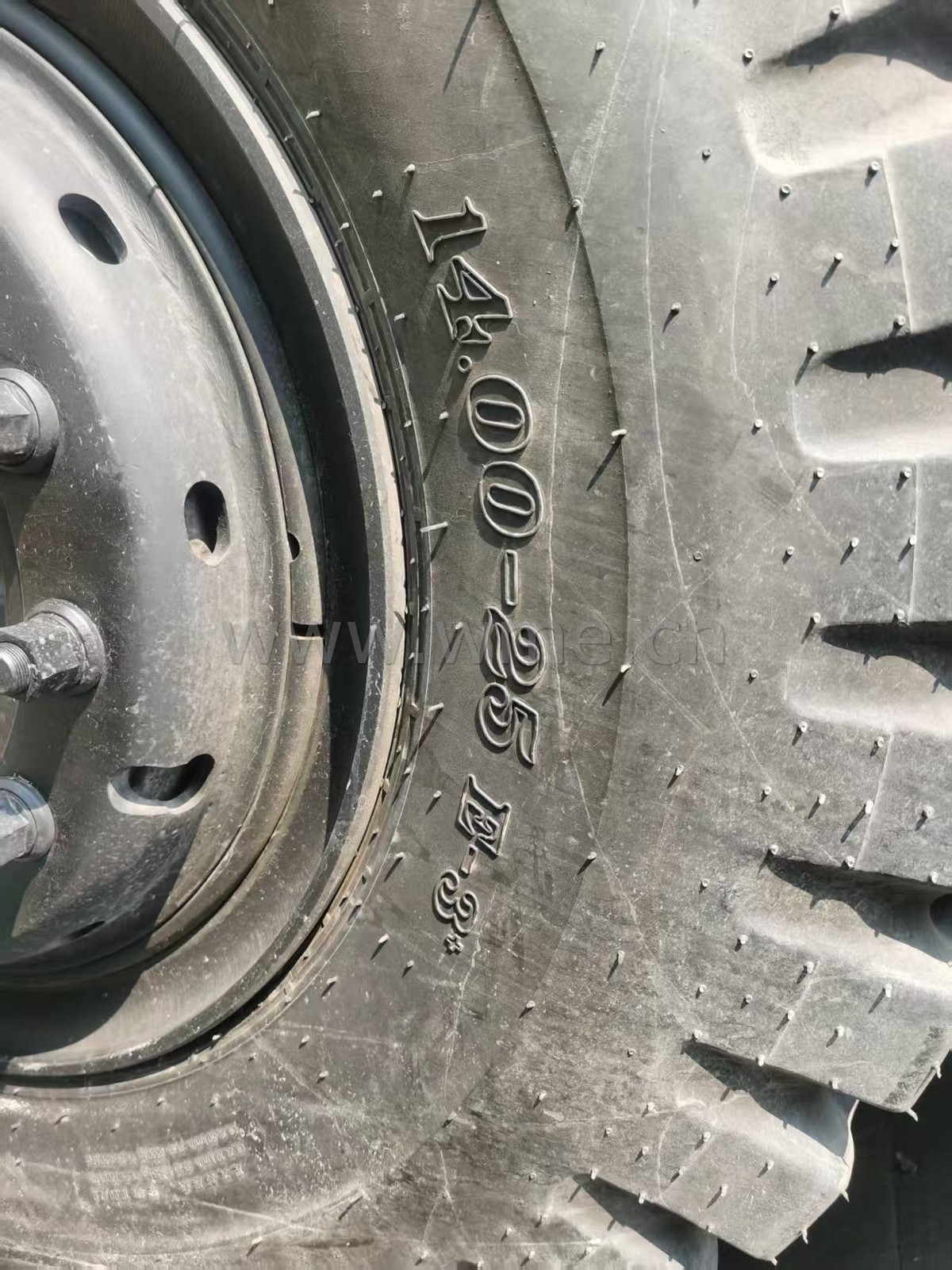

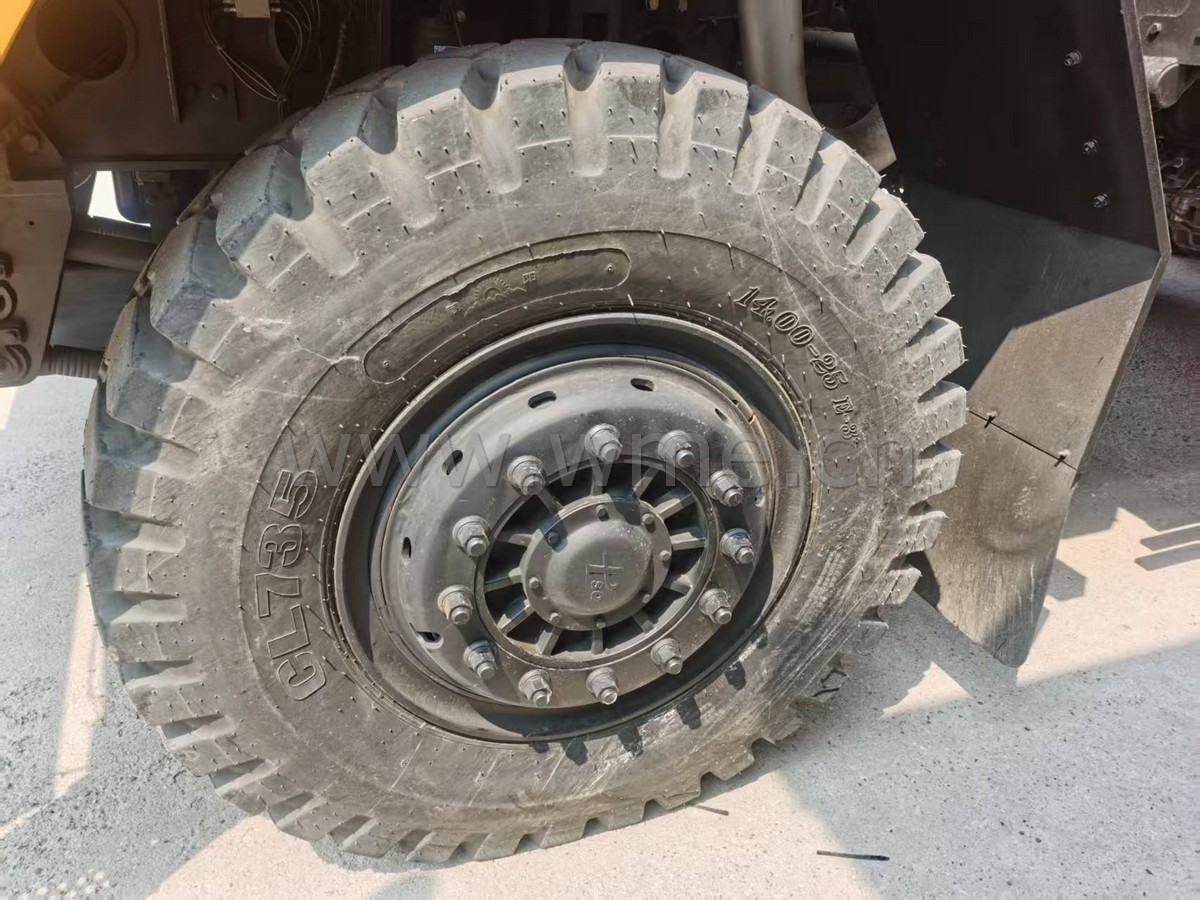

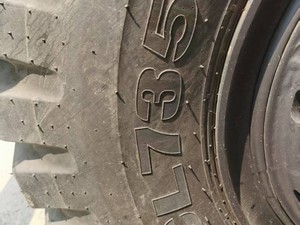

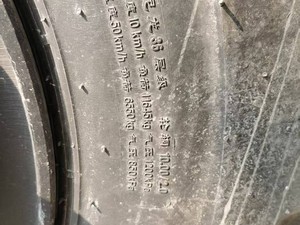

Tire	14.00R25	14.00R25
