| Model |

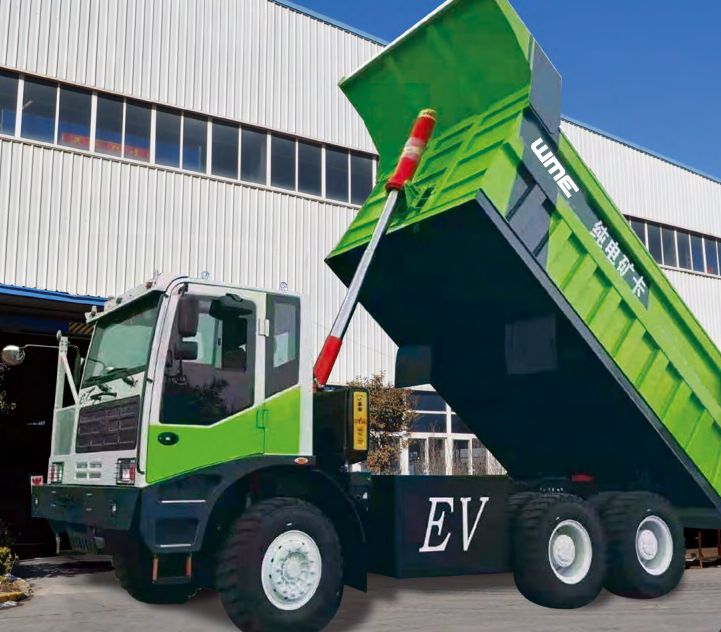

PX90E |
| Overall dimension(mm) |
9100×3450×4130 |
| Wheel base(mm) |
3800+1560 |
| Inner dimension of box(mm) |
5850×3200×1700 |
| Body Capacity(m³) |
32 |
| Curb Weigh(kg) |
32000 |
| Rated load(kg) |
60000 |
| Rated total weight(kg) |
92000 |
| Battery |
CATL 350kwh |
| Heat management |
Air international:8+8kw |
| Transmission |
Qijiang 2D4210(2gears） |
| Motor |
Langgao dual motor YQW3-225L7 |
| Steering Engine |
Full hydraulic |
| Front/rear axle |
PX 25T front axle/ PX35T casting dual reduction tandem axle |
| Frame |
480×140 Welded rigid frame |
| Body description |
High strength plate, bottom 16mm, side 12mm, rear 12mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
Front: pneumatic hydraulic, rear:120×32×11 |
| Min ground clearance(mm) |
340 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
30% |
| Tire |
14.00R25 |
|
|
