| Model |

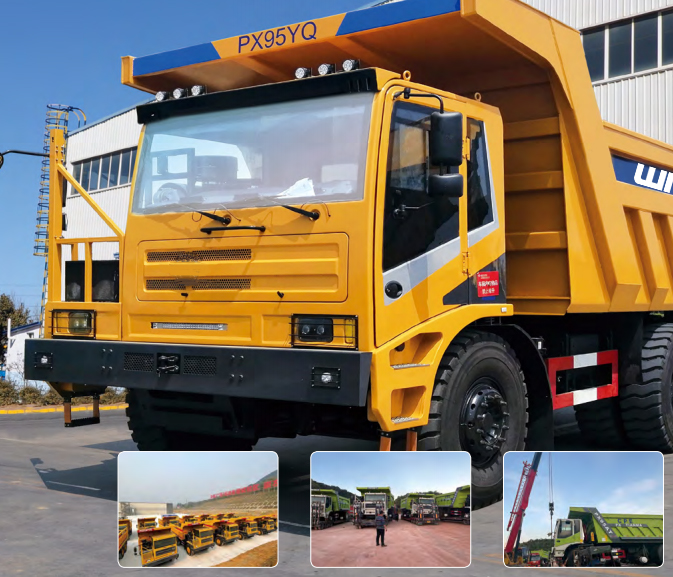

PX95MT/AT |
| Overall dimension(mm) |
9400×3680×4220 |
| Wheel base(mm) |
3800+1690 |
| Inner dimension of box(mm) |
6000×3400×1700 |
| Body Capacity(m³) |
35 |
| Curb Weigh(kg) |
34000 |
| Rated load(kg) |
62000 |
| Rated total weight(kg) |
96000 |
| Engine |
United Power 520(China III) |
| Transmission |
FAST 8DS260/Allison 4800ORS |
| Steering Engine |
Eaton full hydraulic |
| Front/rear axle |
PX 25T front axle/ PX35T casting dual reduction tandem axle |
| Frame |
450×130 Welded rigid frame |
| Body description |
High strength plate, bottom 16mm, side 12mm, rear 12mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
Front: pneumatic hydraulic, rear:120×32×13 |
| Min ground clearance(mm) |
435 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
30% |
| Tire |
16.00-25 |
|
|
