| Model |

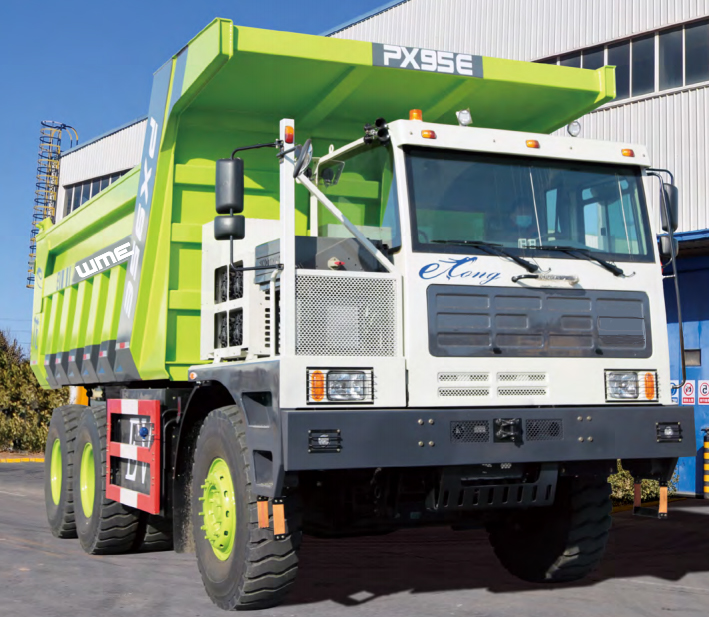

PX95E |
| Overall dimension(mm) |
9100×3650×4150 |
| Wheel base(mm) |
3800+1690 |
| Inner dimension of box(mm) |
6000×3400×1750 |
| Body Capacity(m³) |
35 |
| Curb Weigh(kg) |
35000 |
| Rated load(kg) |
65000 |
| Rated total weight(kg) |
100000 |
| Battery |
CATL 350kwh |
| Heat management |
Water cooling system |
| Transmission |
BRETON BRT2A400Q(2gears） |
| Motor |
Dual motor(max.torque 4200Nm) |
| Steering Engine |
Electric hydraulic(EHPS) |
| Front/rear axle |
PX 25T front axle/ PX35T casting dual reduction tandem axle |
| Frame |
480×150 Welded rigid frame |
| Body description |
High strength plate, bottom 16mm, side 12mm, rear 12mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
Front: pneumatic hydraulic, rear:120×32×13 |
| Min ground clearance(mm) |
380 |
| Min turning radius(m) |
≤13 |
| Max gradeability |
30% |
| Tire |
16.00R25 |
|
|
