Home  >>  Equipment >>  SHANTUI Motor Grader >> SHANTUI SG17-B6(Weichai)

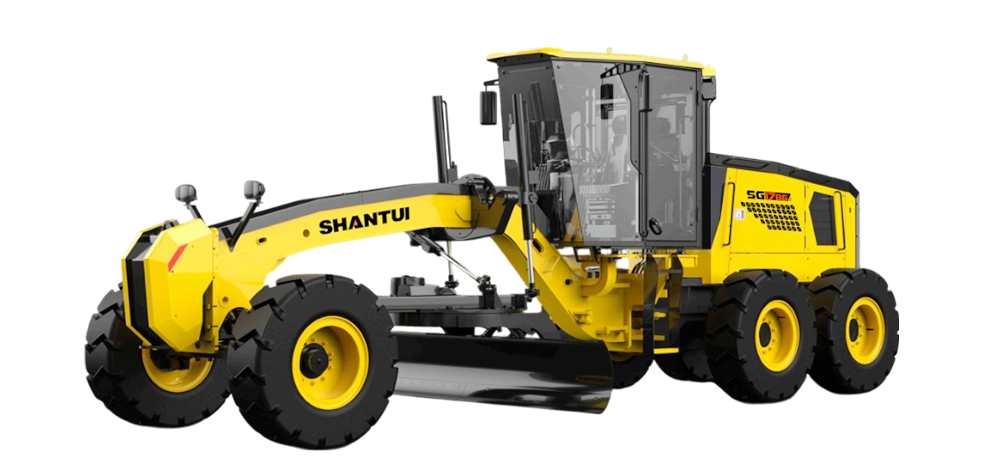

SHANTUI SG17-B6(Weichai)

H.S.8429 5100 00



SG17-B6(Weichai) - SHANTUI SG17-B6(Weichai) - Motor Grader SG17-B6(Weichai)

Model SG17-B6(Weichai)
Engine power 129 kW
Overall weight 14.8T
Blade width 3660/3965mm
External dimensions(L×W×H) 8953*2600*3358mm
Engine model WP6G175E21
Fuel tank capacity 290L
Hydraulic oil tank capacity 85L
Maximum traction 81.3kN
Maximum forward speed 0-42km/h
Maximum reverse speed 0-28.5km/h
Blade cutting angle 22-73°
Emissions China III
SHANTUI Motor Grader

SHANTUI SG21-B6(Weichai)
SHANTUI SG15-B6
SHANTUI SG15-C6
SHANTUI SG17-B6
SHANTUI SG17-B6(Weichai)
SHANTUI SG19-B6
SHANTUI SG19-B6(Weichai)
SHANTUI SG19-C6
SHANTUI SG21-B6
SHANTUI SG21-B6DS
SHANTUI SG21-C6
SHANTUI SG21-C6 AWD EC
SHANTUI SG21-Ci2 AWD
SHANTUI SG24-C5
SHANTUI SG27-C5
SHANTUI SG27-C6MN
SHANTUI SG27-C6 AWD EC
SHANTUI GH36-C6

All specifications are approximate. Specifications are subject to change without notice.
