SHANTUI SG19-C6

H.S.8429 5100 00

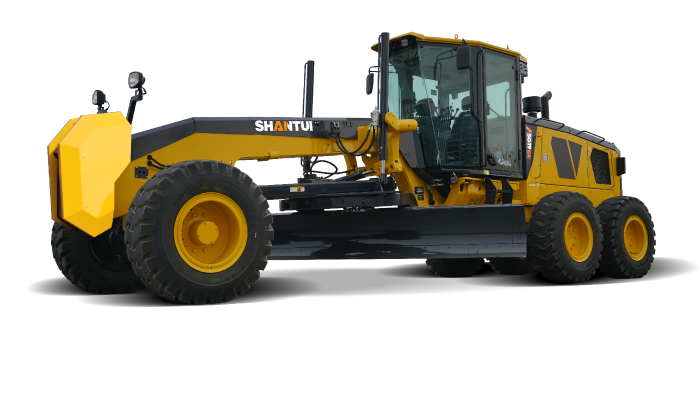

SG19-C6 - SHANTUI SG19-C6 - Motor Grader SG19-C6

Model SG19-C6
Engine power 140 kW
Overall weight 16T
Blade width 3965mm
External dimensions(L×W×H) 9700*2600*3358mm
Engine model WP6G190E330
Fuel tank capacity 360L
Hydraulic oil tank capacity 85L
Maximum traction 87.8kN
Maximum forward speed 40.7km/h
Maximum reverse speed 24.4km/h
Blade cutting angle 22-73°
Emissions Eu stage IIIA
SHANTUI Motor Grader

SHANTUI SG21-B6(Weichai)
SHANTUI SG15-B6
SHANTUI SG15-C6
SHANTUI SG17-B6
SHANTUI SG17-B6(Weichai)
SHANTUI SG19-B6
SHANTUI SG19-B6(Weichai)
SHANTUI SG19-C6
SHANTUI SG21-B6
SHANTUI SG21-B6DS
SHANTUI SG21-C6
SHANTUI SG21-C6 AWD EC
SHANTUI SG21-Ci2 AWD
SHANTUI SG24-C5
SHANTUI SG27-C5
SHANTUI SG27-C6MN
SHANTUI SG27-C6 AWD EC
SHANTUI GH36-C6

All specifications are approximate. Specifications are subject to change without notice.
