| Model |

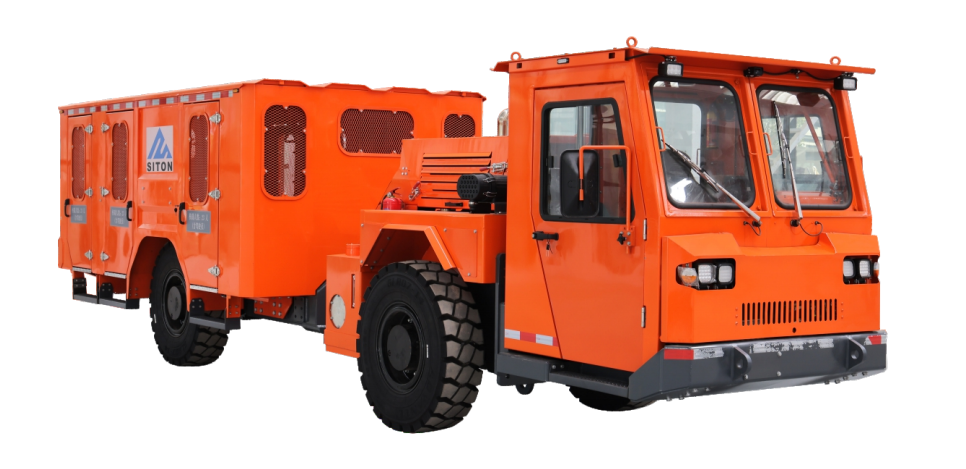

RU-23 |
| Load (KG) |
4100 |
| Dead Weight (KG) |
13000 |
| Gross Weight (KG) |
17100 |
| Maximum Climbing Gradient (°) |
15 |
| Maximum Speed (km/h) |
25 |
| Overall Dimension - Total Length (mm) |
8700 |
| Overall Dimension - Total Width (mm) |
2320 |
| Overall Dimension - Total Height (mm) |
2430 |
| Wheelbase (mm) |
3700 |
| Track (mm) |
1680 |
| Minimum Ground Clearance (mm) |
≥270 |
| Front Axle Swing Angle (°) |
±8 |
| Engine Model |
F4.5CSC4168 Four - Cylinder |
| Total Engine Power |
125kW |
| Transmission Model |
BED431800099 |
| Front Axle |
Split Wide Drive Axle DR50 - 22C - I(Q) |
| Rear Axle |
Split Wide Drive Axle DR50 - 22C - I(H) |
| Steering System Type |
Full - Hydraulic Steering |
| Steering Angle (°) |
40 |
| Minimum Turning Radius (m) |
Inside |
3.8±0.2 |
| Outside |
6.6±0.2 |
| Forward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
15 |
| Gear IV |
25 |
| Backward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
10 |
| Tire |
12R20 |
| Number of Occupants (units) |
21 |
| Number of Doors (units) |
6 |
