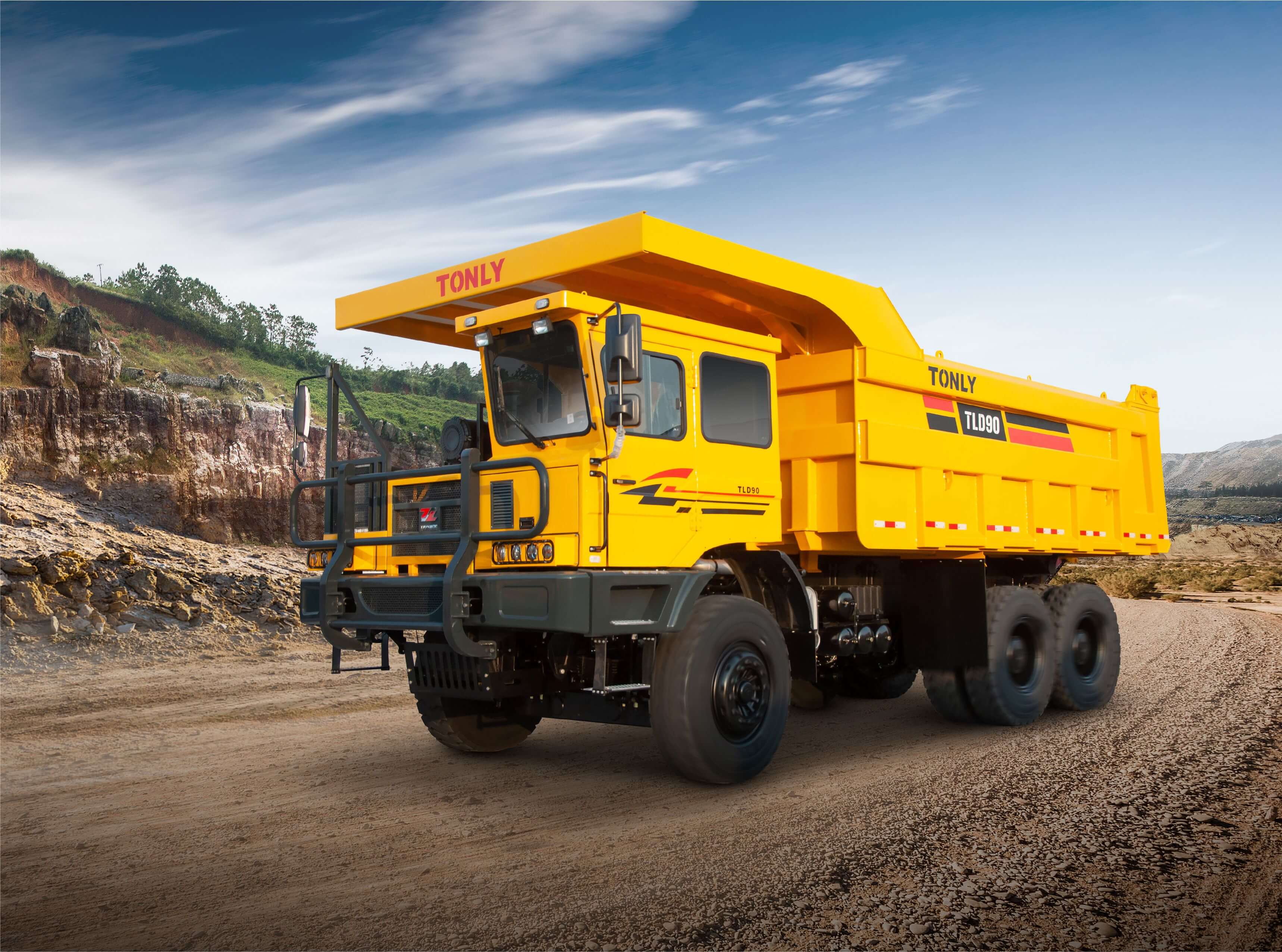

tonly truck



mining dump truck - tonly mining dump truck - TL885A - TL875 - TLD96 - TL849



Mining Dump Truck



Dump Truck
Model rated power (hp/kw) Heaped capacity(m³) Payload(t) machine weight(t) total weight(t) Tire Note
TL885A 530/390 36 70 35 105 16.00-25
TL875B 430/316 30 60 30 90 14.00-25
TL875K 460/338 30 60 30 90 14.00-25
TLD96 530/390 36 70 35 105 16.00-25
TL849 430/316 21 35 22 57 Front 18R25 rear 23.5R25
TL875H 460 30 60     14.00-25
TL885M 530 65 70     16.00-25
TL885KS 530 40 80     16.00-25
TL889A 765 40 70     16.00-25
TL889D 770 40 70     16.00-25
TL890A 770 45 80     460/90R25
TL849R 430 21 32     Front 18R25 rear 23.5R25
TL859R 430 21 32     Front 18R25 rear 23.5R25
TL869 560 27 50     875/65R29
TL869R 560 27 50     875/65R29



TLD AUTO
Model rated power (hp/kw) Heaped capacity(m³) Payload(t) machine weight(t) total weight(t) Tire Note
TLD65 430/316 25 40 25 65 14.00-25
TLD90 530/390 30 60 30 90 14.00-25
TLD96 530/390 36 70 35 105 16.00-25
TLD93B 560/412 36 72 35 107 16.00-25
TLD90M 530 54 60     14.00-25
TLD93A 530 36 70     16.00-25
TLD93M 560 65 70     16.00-25



TLE
Model rated power (hp/kw) Heaped capacity(m³) Payload(t) machine weight(t) total weight(t) Tire Note
TLE90B 430/316 33 60 34 94 14.00R25
TLE105 430/316 40 70 40 110 16.00R25
TLE120   40 80     460/95R25
TLE135   50 90     480/95R29



TLH
Model rated power (hp/kw) Heaped capacity(m³) Payload(t) machine weight(t) total weight(t) Tire Note
TLH105 560/210 33 70

16.00R25
TLH138 775/400 52 91     505/95R29
TLH105N 560/300 50 70     16.00R25
TLH105H 353/300 50 70     16.00R25
TLH138H 530/300 52 91     505/95R29
TLH120 775/400 45 80     480/95R25



New Energy
Model rated power (hp/kw) Heaped capacity(m³) Payload(t) machine weight(t) total weight(t) Tire Note
DTE145   45/55 91     505/95R29
DTH145 775 45/55 91     505/95R29
TLDH125 775 45/53 91     505/95R29
TLDH180   56/70 110     24.00R35







Rigid Dump Truck

It is mainly used in the mining and transportation of large open-pit mines and can meet the development needs of large-scale open-pit mining equipment.
Model rated power (hp/kw) Container volume(m³) Payload(t) machine weight(t) total weight(t) Tire
TLD125 775/570 45/52 80 46 126 18.00R25







Sprinkler Truck
Model rated power(hp/kw) Inner cavity size (mm) Payload(t) machine weight(t) total weight Maximum speed(km/h) Tire
TLS753 430/316 8100*3250*2200 50 22 72 40 14.00R25
TLS755 460 11295*3340*4050       40 14.00-25







Tunnel Truck

Special equipment for slope transportation in underground mines.
Model rated power(hp/kw) Standard bucket volume(m³) Rated payload(t) machine weight(t) total weight(t) Tire
TLK321 330/243 8.8 20 12.5 32.5 10.00R20
TLK320 330 8.8 20     10.00R20
TLK361 330/243 11.8 25 13.8 38.8 12.00R20
TLK360 350 11.8 25     12.00R20
TLK451 400/294 15 30 15.5 45.5 12.00R20
TLK450 400 15 30     12.00R20
UQ-15B 300 6.9 15     10.00R20
UQ-20B 330 8.8 20     10.00R20
UQ-25B 350 11.8 25     12.00R20
UQ-30C 400 15 30     12.00R20
UQ-35 400 18 35     12.00R20







Other Truck

Model rated power(hp/kw) Standard bucket volume(m³) Rated payload(t) machine weight(t) total weight(t) Tire
TL855D 430/316 25 40 25 65 14.00-25
TL859 460/338 24 40 26 66 Front 23.5R25 rear 750/65R25
TLY755 460 40       14.00-25
TLT105 580         16.00R25
TLQ100     180
TLQ102     180
Series off-road dump truck
TL897 770/566 30 90 45 135 480/95R29
TL891 770/566 30 90 45 135 480/95R29

All specifications are approximate. Specifications are subject to change without notice.
