| Model |

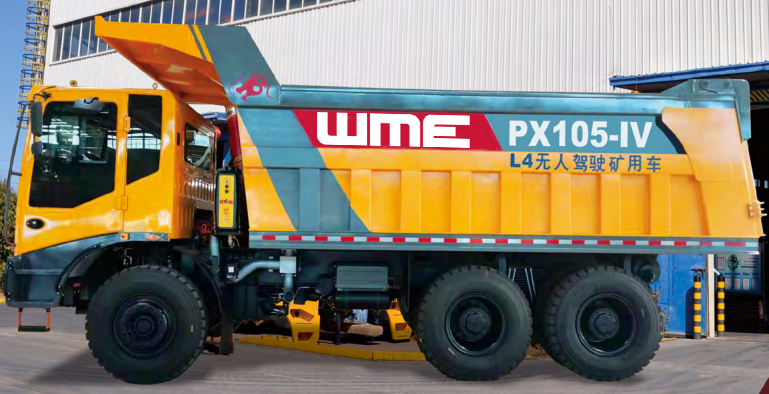

Unmanned PX105 |
| Overall dimension(mm) |
9600×3680×4300 |
| Wheel base(mm) |
4000+1690 |
| Inner dimension of box(mm) |
6400×3400×1750 |
| Body Capacity(m³) |
38 |
| Curb Weigh(kg) |
35000 |
| Rated load(kg) |
70000 |
| Rated total weight(kg) |
105000 |
| Engine |
Yuchai 520-560HP/Weichai 530HP(China III) |
| Transmission |
FAST 8DS260/Allison 4800ORS |
| Electronic brake system |
EBS electronic control braking and body stability monitoring system and EPB electronic control parking system |
| Electronic steering system |
EHPS |
| Front/rear axle |
PX 25T front axle/ PX40T casting dual reduction tandem axle |
| Frame |
480×140 Welded rigid frame |
| Body description |
High strength plate, bottom 16mm, side 12mm, rear 12mm, front hoisting, Hyva cylinder, square box |
| Leaf spring |
Front: pneumatic hydraulic, rear:120×27×18 |
| Min ground clearance(mm) |
435 |
| Min turning radius(m) |
≤12 |
| Max gradeability |
35% |
| Tire |
16.00R25 |
