WEICHAI 12M33C1400-18

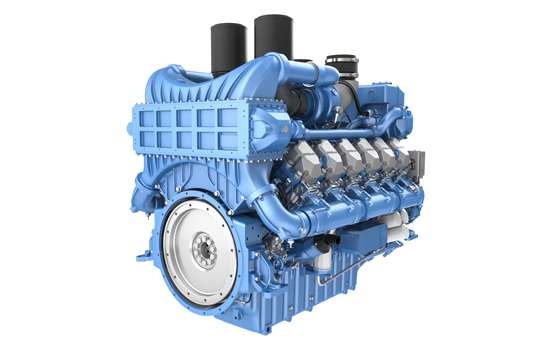

12M33C1400-18 - LGMG 12M33C1400-18 WEICHAI Marine Engine

Model 12M33C1400-18
Type Four-stroke,water cooled,in-line,dual stage turbocharged and intercooled
Bore&Stroke 150*185(mm)
Oil consumption rate <=0.8g/kW/h
Minimum fuel consumption rate 190g/kW/h
Rotation(facing the flywheel) Counter-colockwise
Dimensions(L*W*H)

L6:1870*1000*1400mm/ V12:2210*1418*1554mm
Number of cylinders 6/12
Displacement 19.6/39.2L
Noise <=100dB(A)
Idle speed 650±50r/min
Net weight 2390/3900kg
Aspiration TA
Rated power(kW/Ps) 1029/1400
Speed r/min 1800
Fuel system Mechanical pump
Emission IMO II
Power rating P1

WEICHAI Marine Engine

6M33C550-15
6M33C600-18
6M33C650-18
6M33C700-18
6M33C750-18
6M33C750-18E211
6M33C830-18E211
6M33C912-19E211
6M33C1020-20E211
12M33C1000-15
12M33C1200-18
12M33C1300-18
12M33C1400-18
12M33C1500-18
12M33C1400-18E211
12M33C1500-18E211
12M33C1650-18E211
16M33X1750-16E211
16M33X1850-16E211
16M33X1950-18E211
16M33X2100-18E211

All specifications are approximate. Specifications are subject to change without notice.
