WEICHAI 6M21Y1000-23E200

6M21Y1000-23E200 - LGMG 6M21Y1000-23E200 WEICHAI Marine Engine

Model	6M21Y1000-23E200
Type	Four-stroke,water cooled,in-line,dual stage turbocharged and intercooled
Bore&Stroke	127*165(mm)
Oil consumption rate	<=0.3g/kW/h
Minimum fuel consumption rate	198g/kW/h
Rotation(facing the flywheel)	Counter-colockwise
Dimensions(LWH)	167011001750mm
Number of cylinders	6
Displacement	12.54L
Noise	<=100dB(A)
Idle speed	700r/min
Net weight	1450kg
Aspiration	Dual TA
Rated power(kW/Ps)	735/1000
Speed r/min	2300
Fuel system	HPCR
Emission	IMO II/EPA III
Power rating	P5

All specifications are approximate. Specifications are subject to change without notice.

Inquire by Email
For more details

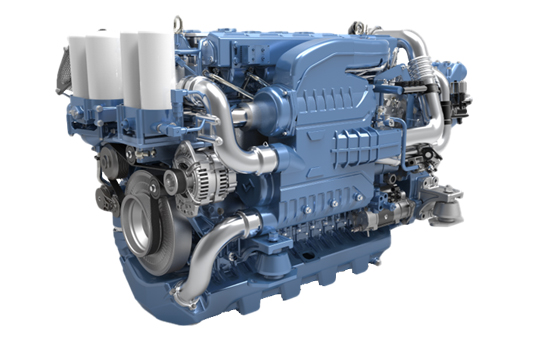

WEICHAI 6M21Y1000-23E200 engine
