WEICHAI 6WH17C900-3

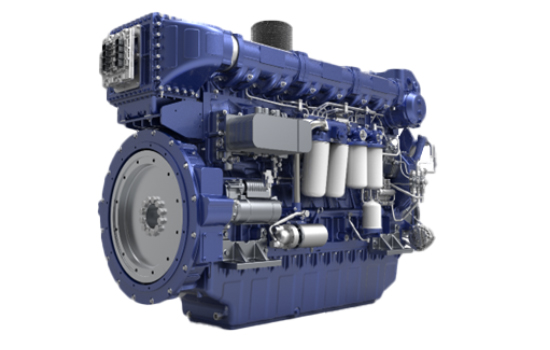

6WH17C900-3 - LGMG 6WH17C900-3 WEICHAI Marine Engine

Model	6WH17C900-3
Type	Four-stroke,water cooled,in-line,turbocharged and aftercooled
Bore&Stroke	170*222(mm)
Oil consumption rate	<=0.3g/kW/h
Minimum fuel consumption rate	190g/kW/h
Rotation(facing the flywheel)	Counter-colockwise
Dimensions(LWH)	L6:246312001650mm/ L8:265010401818mm
Number of cylinders	6
Displacement	30.22L
Noise	<=111dB(A)
Idle speed	500r/min
Net weight	L6:3100/L8:3800kg
Aspiration	TA
Rated power(kW/Ps)	661/900
Speed r/min	1350
Fuel system	HPCR
Emission	IMO II
Power rating	P1

All specifications are approximate. Specifications are subject to change without notice.
