WEICHAI 6WH20LC1632-1

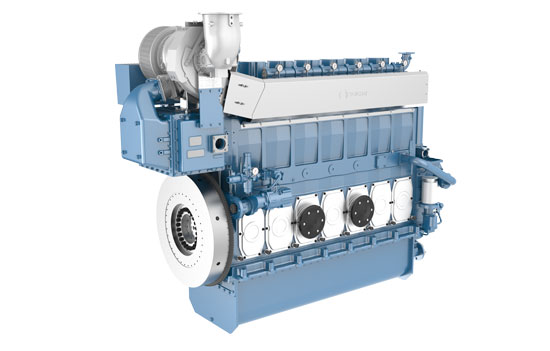

6WH20LC1632-1 - LGMG 6WH20LC1632-1 WEICHAI Marine Engine

Model 6WH20LC1632-1
Type Four-stroke,water cooled,in-line, turbocharged and intercooled
Bore&Stroke 200*300(mm)
Oil consumption rate <=0.5g/kW/h
Minimum fuel consumption rate 185g/kW/h
Rotation(facing the flywheel) Colockwise
Dimensions(L*W*H)

L6:3532*1365*2642mm L8:4132*1365*2642mm

Number of cylinders 6/8
Displacement 56.55/75.4L
Noise <=110dB(A)
Idle speed 400r/min
Net weight L6:9800kg
L8:12500kg
Rated power(kW/Ps) 1118/1520
Speed r/min 1000
Fuel and configuration(Diesel oil) Monomer pump
Emission IMO II
Power rating P1

WEICHAI Marine Engine

6WH20LC1230-1
6WH20LC1360-1
6WH20LC1520-1
6WH20LC1632-1
6WH20LC1795-1
6WH20LC1500-9
6WH20LC1225-7.5
8WH20LC2400-1
8WH20LC2176-1
8WH20LC2000-1
8WH20LC2040-9
8WH20LC1850-9
8WH20LC1650-7.5
8WH20LC1500-7.5

All specifications are approximate. Specifications are subject to change without notice.
