WEICHAI 6WH28C3040-7.5

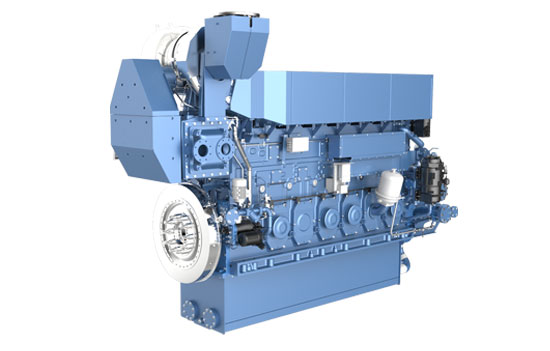

6WH28C3040-7.5 - LGMG 6WH28C3040-7.5 WEICHAI Marine Engine

Model 6WH28C3040-7.5
Type Four-stroke,water cooled,in-line, turbocharged and aftercooled
Bore&Stroke 280/410(mm)
Oil consumption rate <=0.5g/kW/h
Minimum fuel consumption rate 181g/kW/h
Rotation(facing the flywheel) Colockwise/counterclockwise
Dimensions(L*W*H)

L6:5068*1967*3510mm L8:5949*1967*3510mm

Number of cylinders 6/8
Displacement 151.5/202L
Noise <=114dB(A)
Idle speed 320r/min
Net weight L6:24000kg
L8:39000kg
Rated power(kW/Ps) 2240/3040
Speed r/min 750
Fuel and configuration(Diesel oil) Monomer pump
Emission IMO II
Power rating P1

WEICHAI Marine Engine

6WH28C2790-6.5
6WH28C3040-7.5
6WH28C3264-8
6WH28C3672-8
8WH28C4080-7.5
8WH28C4352-8
8WH28C4896-8

All specifications are approximate. Specifications are subject to change without notice.
