WEICHAI 8M21Y1100-23E200

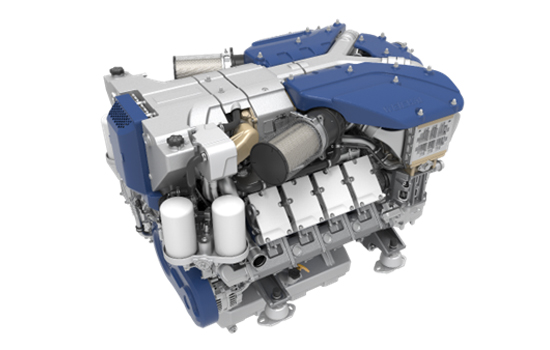

8M21Y1100-23E200 - LGMG 8M21Y1100-23E200 WEICHAI Marine Engine

Model	8M21Y1100-23E200
Type	Four-stroke,water cooled,in-line,dual stage turbocharged and intercooled
Bore&Stroke	127*165(mm)
Oil consumption rate	<=0.5g/kW/h
Minimum fuel consumption rate	200g/kW/h
Rotation(facing the flywheel)	Counter-colockwise
Dimensions(LWH)	130012001285mm
Number of cylinders	8
Displacement	16.72L
Noise	<=100dB(A)
Idle speed	700±50r/min
Net weight	1900kg
Aspiration	Dual TA
Rated power(kW/Ps)	809/1100
Speed r/min	2300
Fuel system	HPCR
Emission	IMO II/EPA III
Power rating	P3

All specifications are approximate. Specifications are subject to change without notice.
