WEICHAI 8WH17C1360-5

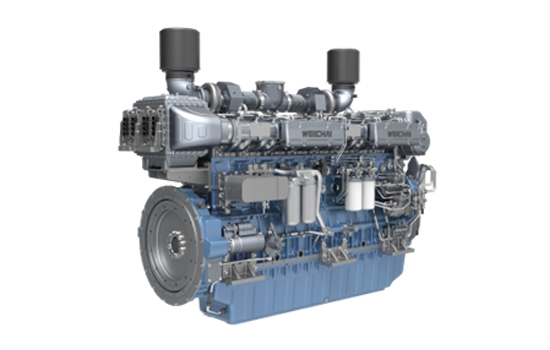

8WH17C1360-5 - LGMG 8WH17C1360-5 WEICHAI Marine Engine

Model	8WH17C1360-5
Type	Four-stroke,water cooled,in-line,turbocharged and aftercooled
Bore&Stroke	170*222(mm)
Oil consumption rate	<=0.3g/kW/h
Minimum fuel consumption rate	190g/kW/h
Rotation(facing the flywheel)	Counter-colockwise
Dimensions(LWH)	291711471805mm
Number of cylinders	8
Displacement	40.31L
Noise	<=111dB(A)
Idle speed	500r/min
Net weight	4600kg
Aspiration	TA
Rated power(kW/Ps)	1000/1360
Speed r/min	1500
Fuel system	HPCR
Emission	IMO II
Power rating	P1
