| Model |

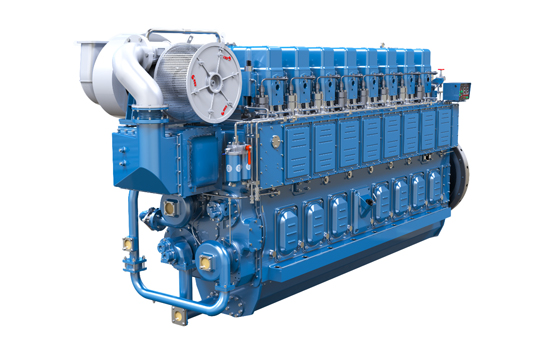

XW6250ZLC |
| Type |
Four-stroke,water cooled,in-line,/V type turbocharged and intercooled
|
| Bore&Stroke |
250*300(mm) |
| Oil consumption rate |
<=0.6g/kW/h |
| Minimum fuel consumption rate |
195g/kW/h |
| Rotation(facing the flywheel) |
Colockwise |
| Dimensions(L*W*H) |
L6front-placed:2820*1465*2488mm L6rear-placed:2820*1465*2488mm L8front-placed:3540*1480*2531mm L8rear-placed:3540*1480*2531mm |
| Number of cylinders |
6/8 |
| Displacement |
588.36/117.81L |
| Noise |
<=110dB(A) |
| Idle speed |
40% rated speed |
| Net weight |
L6front-placed:12000kg
L6rear-placed:12000kg
L8front-placed:7800kg
L8rear-placed:7800kg
|
| Rated power(kW/Ps) |
1470/2000 |
| Speed r/min |
1000 |
| Fuel and configuration |
Diesel oil |
Monomer pump |
| 180 cst HFO |
Monomer pump |
| Emission |
IMO II |
| Power rating |
P1 |
|
|
