WEICHAI WP12C500-21E121

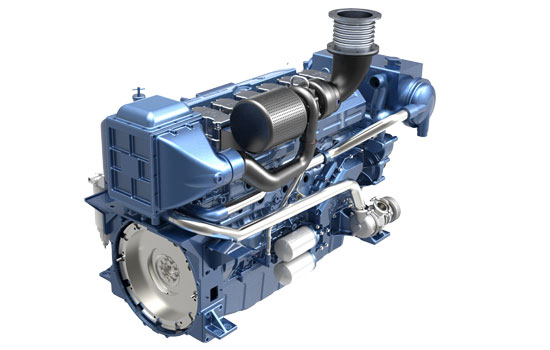

WP12C500-21E121 - LGMG WP12C500-21E121 WEICHAI Marine Engine

Model	WP12C500-21E121
Type	Four-stroke,water cooled,in-line,turbocharged and aftercooled
Bore&Stroke	126*155(mm)
Oil consumption rate	<=0.5g/kW/h
Minimum fuel consumption rate	191g/kW/h
Torque reserve	20-35%
Rotation(facing the flywheel)	Counter-colockwise
Dimensions(LWH)	Mechanical pump 16958581385mm/HPCR 16839281264mm
Number of cylinders	6
Displacement	11.596L
Noise	<=100dB(A)
Idle speed	650±50r/min
Net weight	1200kg
Aspiration	TA
Rated power(kW/Ps)	368/500
Speed r/min	2100
Fuel system	HPCR
Emission	IMO II
Power rating	P2

All specifications are approximate. Specifications are subject to change without notice.
