WEICHAI X6170ZC680-3

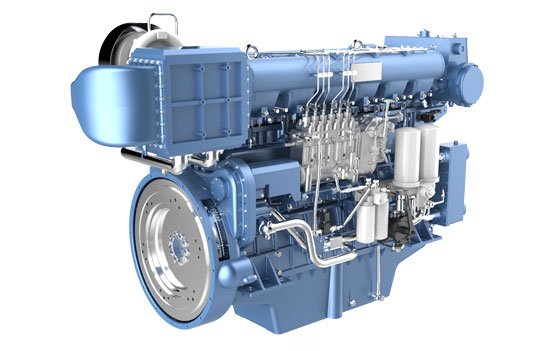

X6170ZC680-3 - LGMG X6170ZC680-3 WEICHAI Marine Engine

Model X6170ZC680-3
Type Four-stroke,water cooled,in-line,turbocharged and aftercooled
Bore&Stroke 170*200(mm)
Oil consumption rate <=0.5g/kW/h
Minimum fuel consumption rate 197g/kW/h
Rotation(facing the flywheel) Counter-colockwise
Dimensions(L*W*H)

L6:2463*1200*1650mm/ L8:2650*1040*1818mm
Number of cylinders 6/8
Displacement 27.24/36.32L
Noise <=105dB(A)
Idle speed 450-650r/min
Net weight L6:3100/L8:3800kg
Aspiration TA
Rated power(kW/Ps) 500/680
Speed r/min 1350
Fuel system Mechanical pump
Emission IMO II
Power rating P1

WEICHAI Marine Engine

X6170ZC350-1
X6170ZC408-1
X6170ZC450-1
X6170ZC480-2
X6170ZC540-2
X6170ZC620-2
X6170ZC650-2
X6170ZC580-3
X6170ZC680-3
X6170ZC620-5
X6170ZC550-5
X6170ZC756-5
X6170ZC818-5
8170ZC600-1
8170ZC720-2
8170ZC818-3
8170ZC900-3
8170ZC900-5
8170ZC1000-5

All specifications are approximate. Specifications are subject to change without notice.
