| Model |

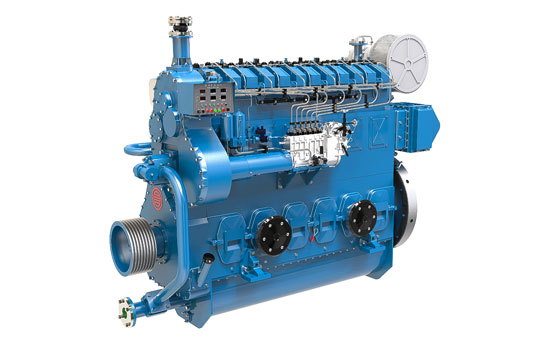

XCW12V200ZC |
| Type |
Four-stroke,water cooled,in-line,/V type turbocharged and intercooled
|
| Bore&Stroke |
200*270(mm) |
| Oil consumption rate |
<=0.8g/kW/h |
| Minimum fuel consumption rate |
195g/kW/h |
| Rotation(facing the flywheel) |
Colockwise |
| Dimensions(L*W*H) |
L6:2820*1465*2488mm L8:3540*1480*2531mm V12:3900*1700*2520mm V16:4633*1700*2745mm |
| Number of cylinders |
6/8/12/16 |
| Displacement |
50.892/67856/101.748/135.68L |
| Noise |
<=110dB(A) |
| Idle speed |
40% rated speed |
| Net weight |
L6:6500kg
L8:7800kg
V12:10900kg
V16:13680kg |
| Rated power(kW/Ps) |
1200/1633 |
| Speed r/min |
1000 |
| Fuel and configuration |
Diesel oil |
Monomer pump |
| 180 cst HFO |
Monomer pump |
| Emission |
IMO II |
| Power rating |
P1 |
|
|
