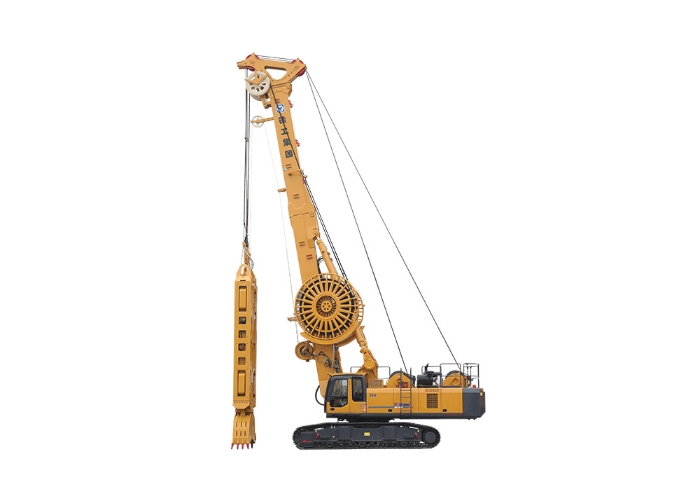

XCMG XG500E

XG500E - XCMG XG500E - diaphragm wall grab XG500E

Model	XG500E
Power	Cummins-QSM11 298kw@1900rpm
wall depth	75m
wall thickness	300~1500mm
Max.pull-down piston pull	500kN
Max.pull/push speed	40/75 m/min
Grab opening time	6s
Grab closing time	7s
Hydraulic system pressure	32Mpa
Work radius	4650~5350mm
Max.traveling speed	1.2km/h
Max.grade ability	30%
Min.clearance	450mm
Track shoe width	800mm
Distance between tracks	3500~4800mm
Dimension in Working	10400×4800×17300mm
Dimension in Transporation	13500×3500×3500mm
Overall Drilling Weight	105t

XCMG diaphragm wall grab

XCMG rotary drilling rig

XCMG multi-function drilling rig

XCMG trench cutter

All specifications are approximate. Specifications are subject to change without notice.
