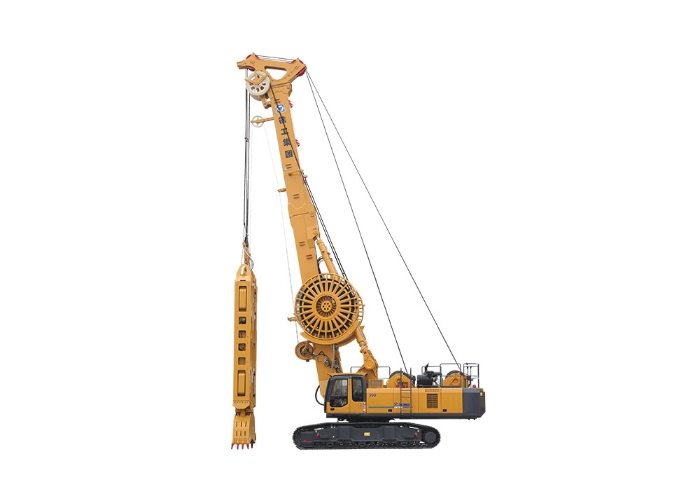

XCMG XG700E

XG700E - XCMG XG700E - diaphragm wall grab XG700E

Model	XG700E
Power	Volvo-TAD1352VE 315kw@1900rpm
wall depth	80/105m
wall thickness	800~1500mm
Max.pull-down piston pull	700kN
Max.pull/push speed	40/75 m/min
Grab opening time	7s
Grab closing time	8s
Hydraulic system pressure	32Mpa
Work radius	4800~5800mm
Max.traveling speed	1km/h
Max.grade ability	30%
Min.clearance	450mm
Track shoe width	800mm
Distance between tracks	3500~4900mm
Dimension in Working	11500×4900×18900mm
Dimension in Transporation	16100×3500×3600mm
Overall Drilling Weight	133t

XCMG diaphragm wall grab

XCMG rotary drilling rig

XCMG multi-function drilling rig

XCMG trench cutter

All specifications are approximate. Specifications are subject to change without notice.
