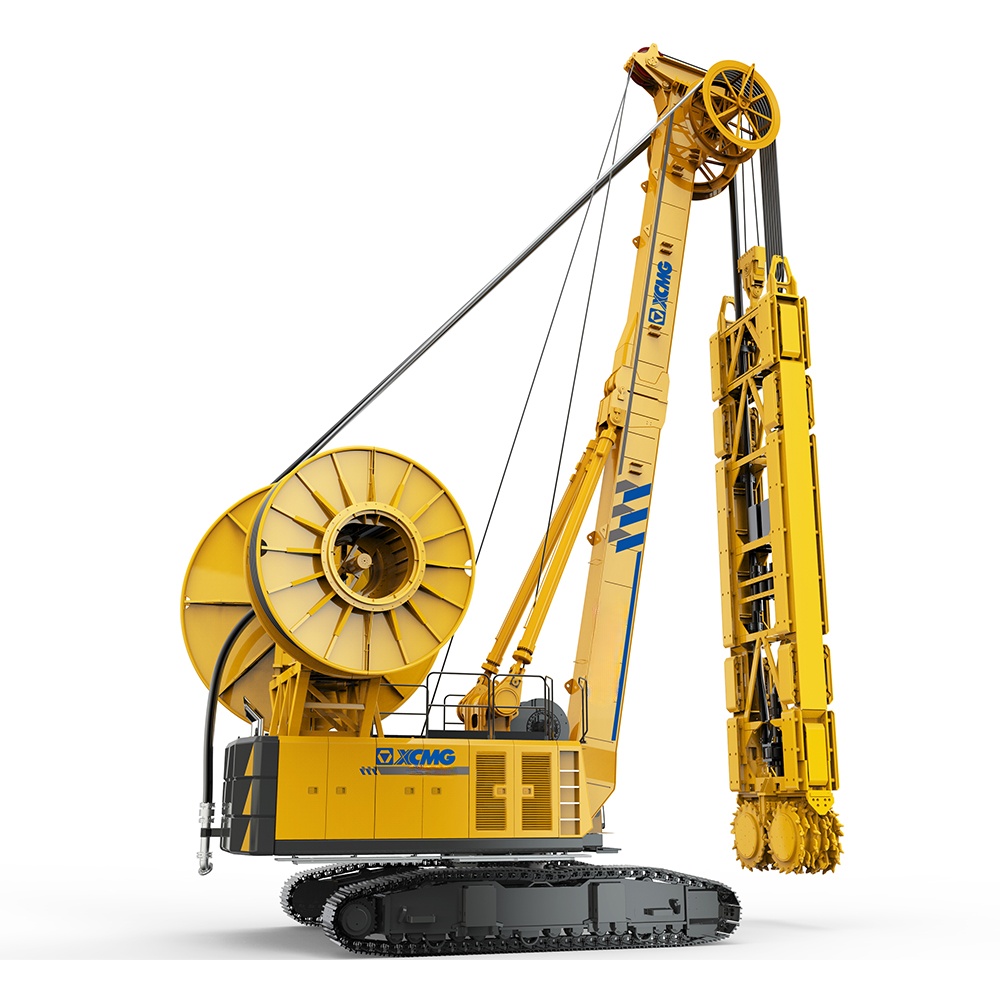

XCMG XTC120

XTC120 - XCMG XTC120 - trench cutter XTC120

Model	XTC120
power	571kw@1800rpm
trench width	800~1800mm
max wall depth	125m
trench length	2800mm
trench accuracy	2‰
max torque	2x120kN.m
rotary speed	0~25rpm
diameter of mud pipe	6" / 152mm
flow of mud pump	450m³/h
max hoisting	780kN
max hoisting speed	66m/min
rope diameter	36mm
type of base machine	special
track shoe width	1000mm
traveling speed	1km/h
max grade ability	30%
dimension in working	11300550019000mm
dimension in transporation	1510035003000mm
total weight	186t

XCMG trench cutter

XCMG XTC100/105

XCMG rotary drilling rig

XCMG multi-function drilling rig

XCMG diaphragm wall grab

All specifications are approximate. Specifications are subject to change without notice.
